E Connectors ( Engine Harness)
E Connectors ( Engine Harness)

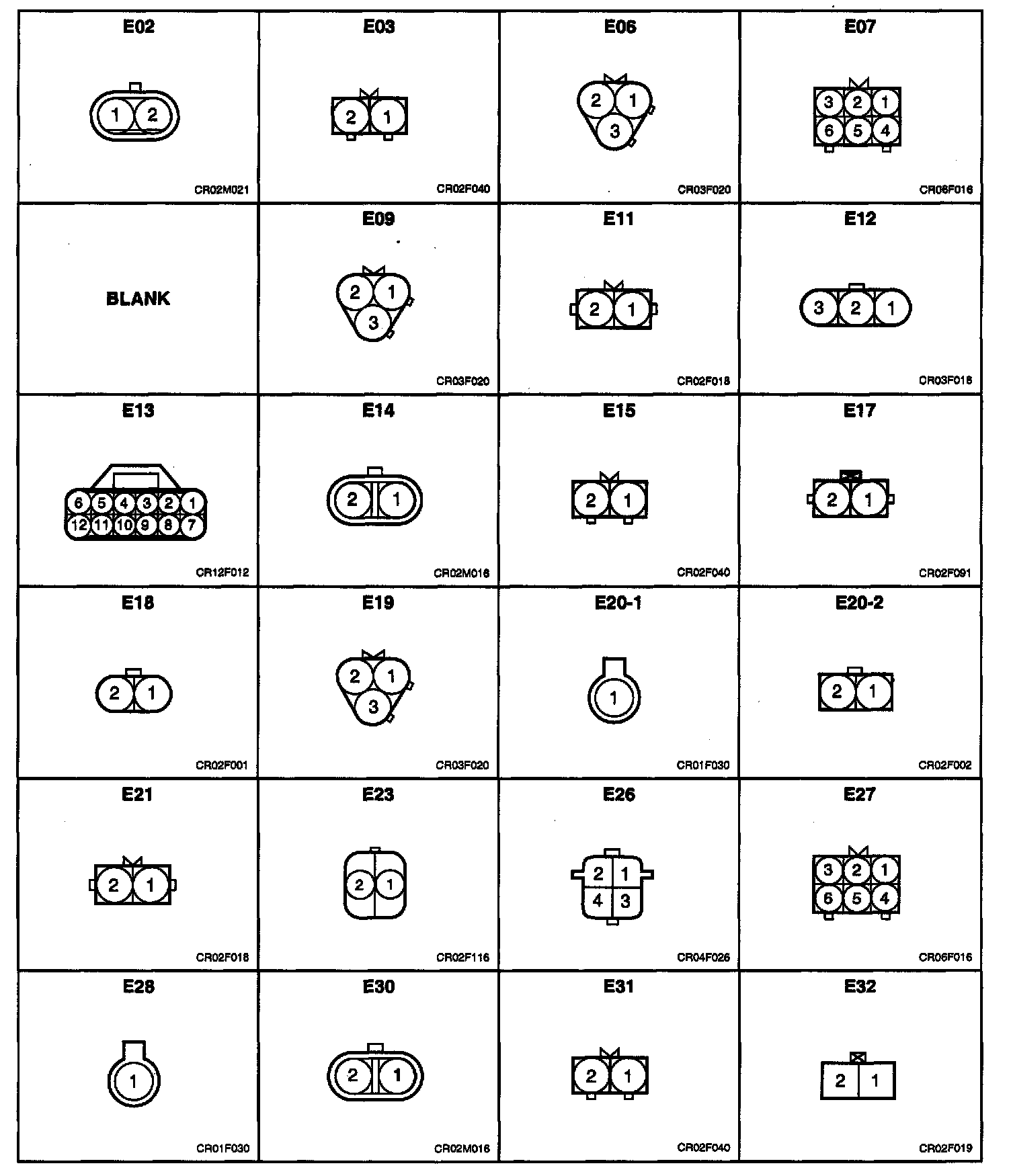

E02 - E32:

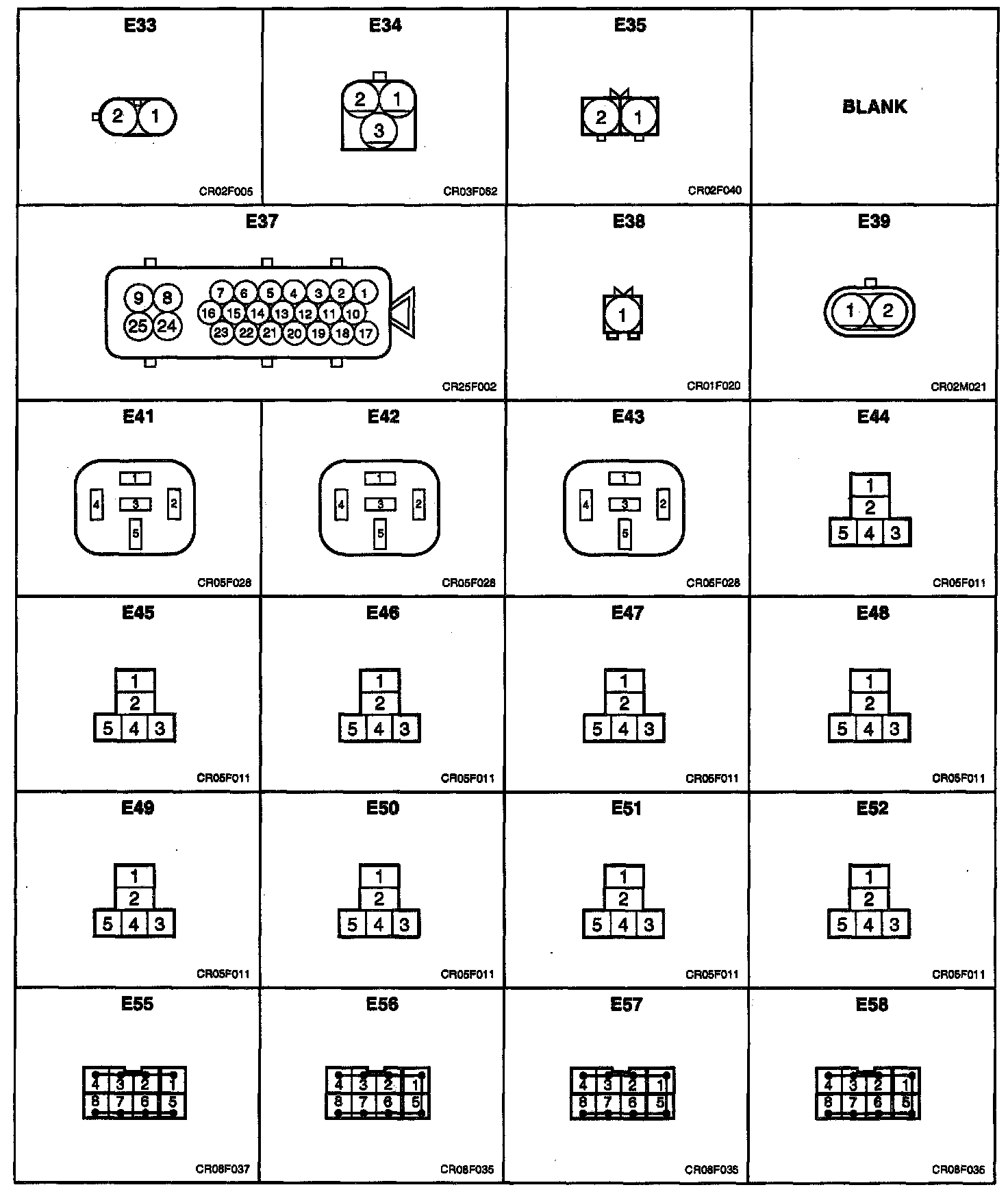

E33 - E58:

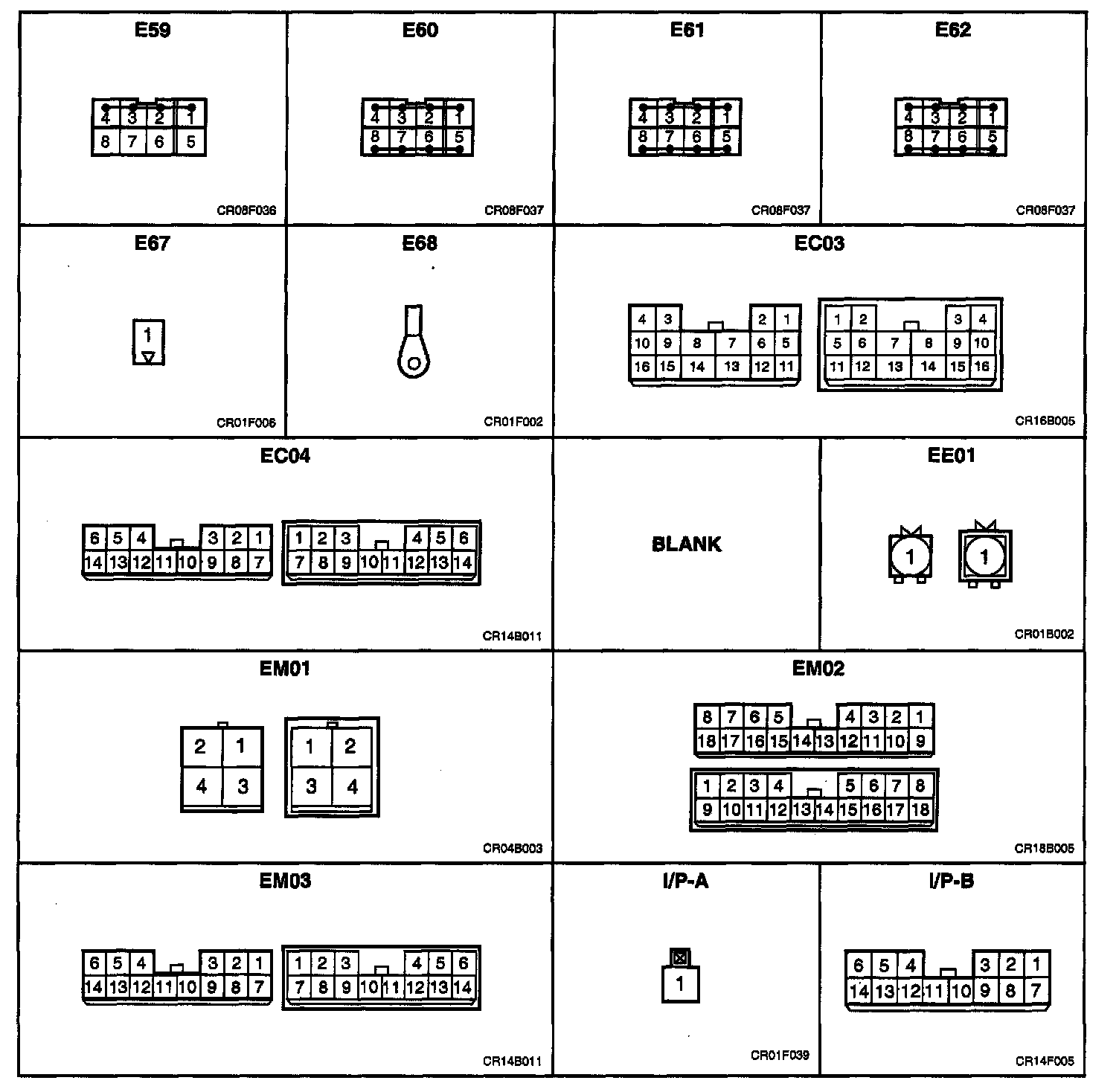

E59 - E68, EC03 - EC04, EE01, EM01 - EM03, I/P-A - I/P-B:
