Home
>>
Hyundai
>>
2002
>>
Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

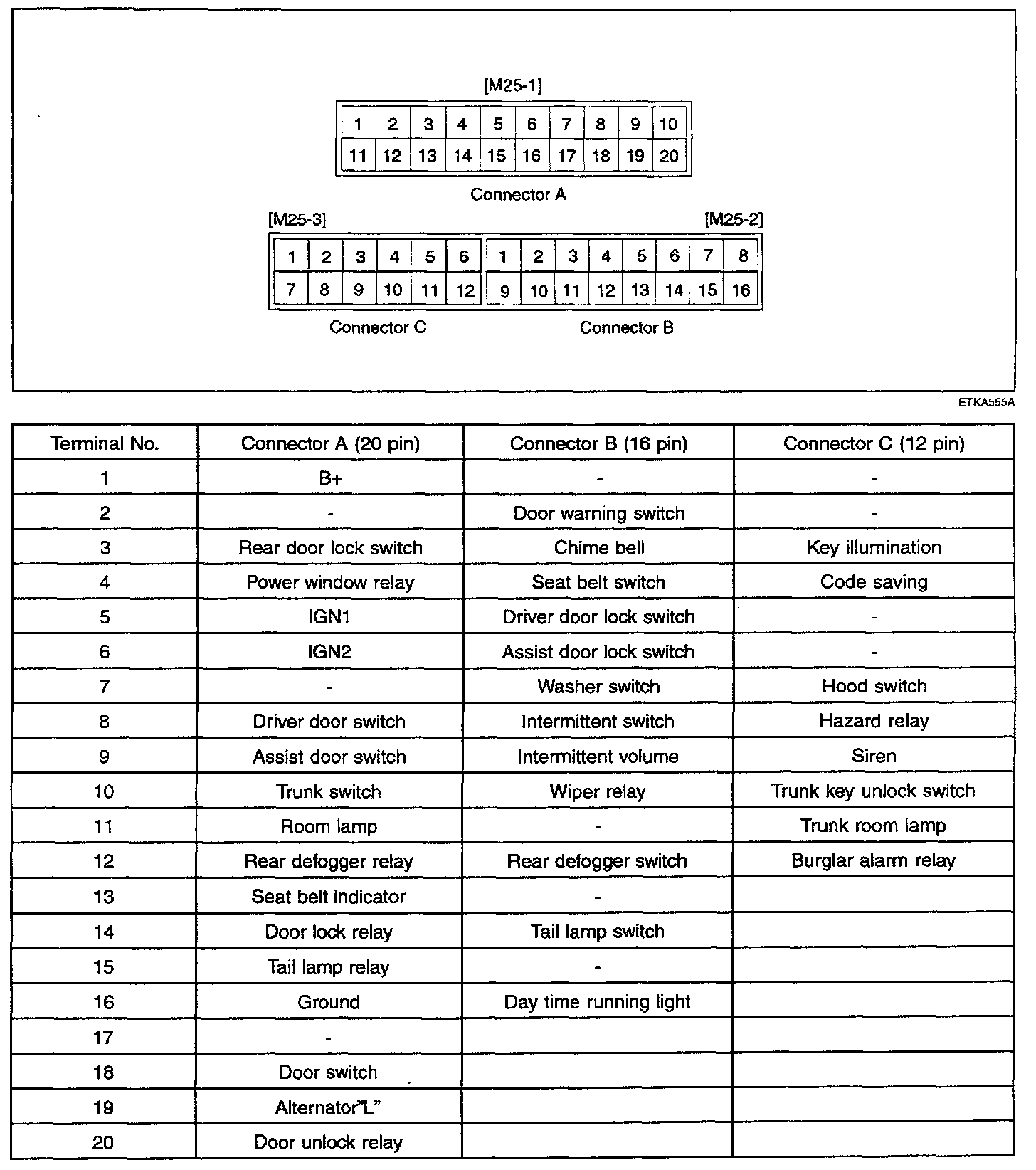

ETACS CM Pin Connection:

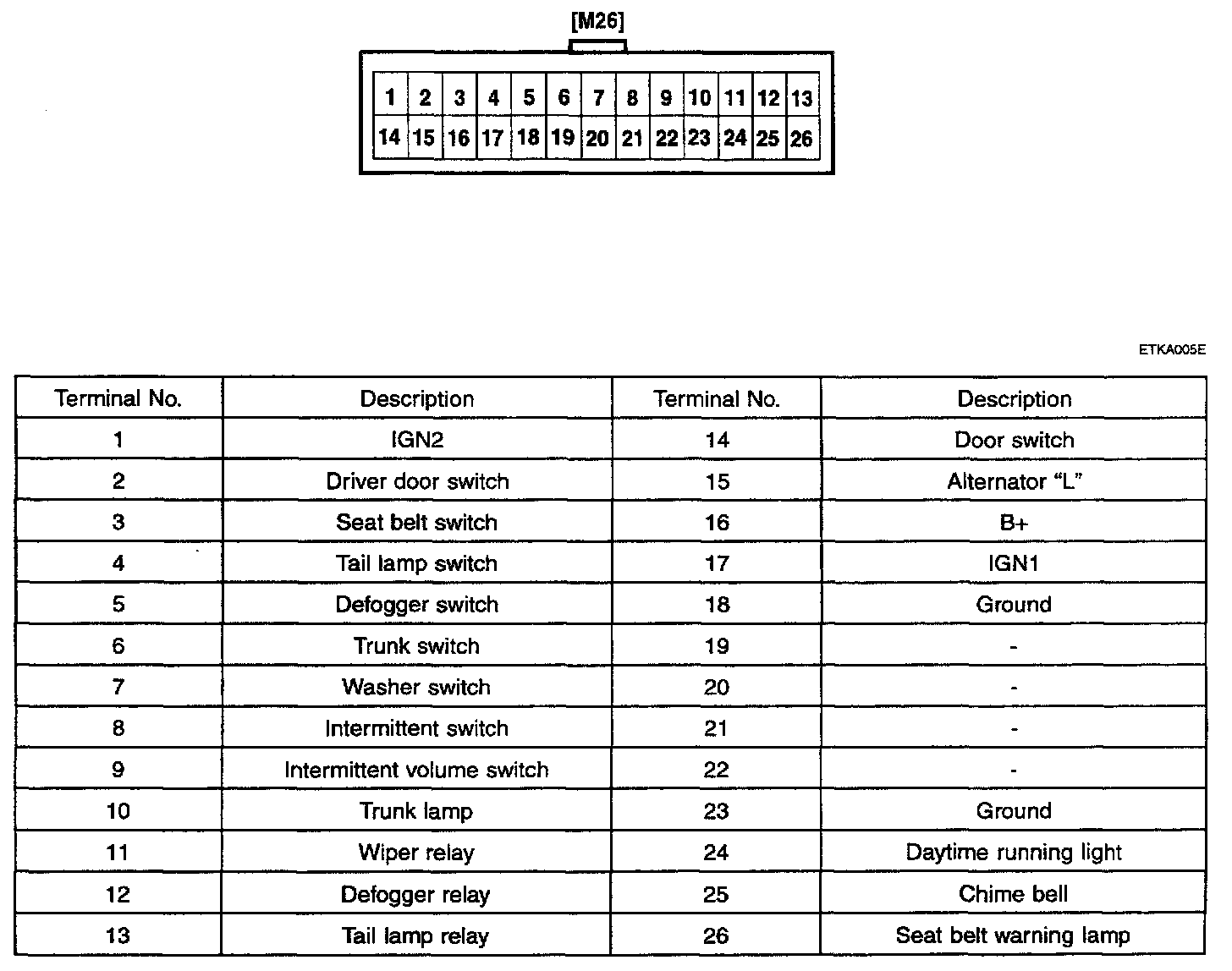

TACS CM Pin Connection:
