Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> External Wiring Diagrams

External Wiring Diagrams

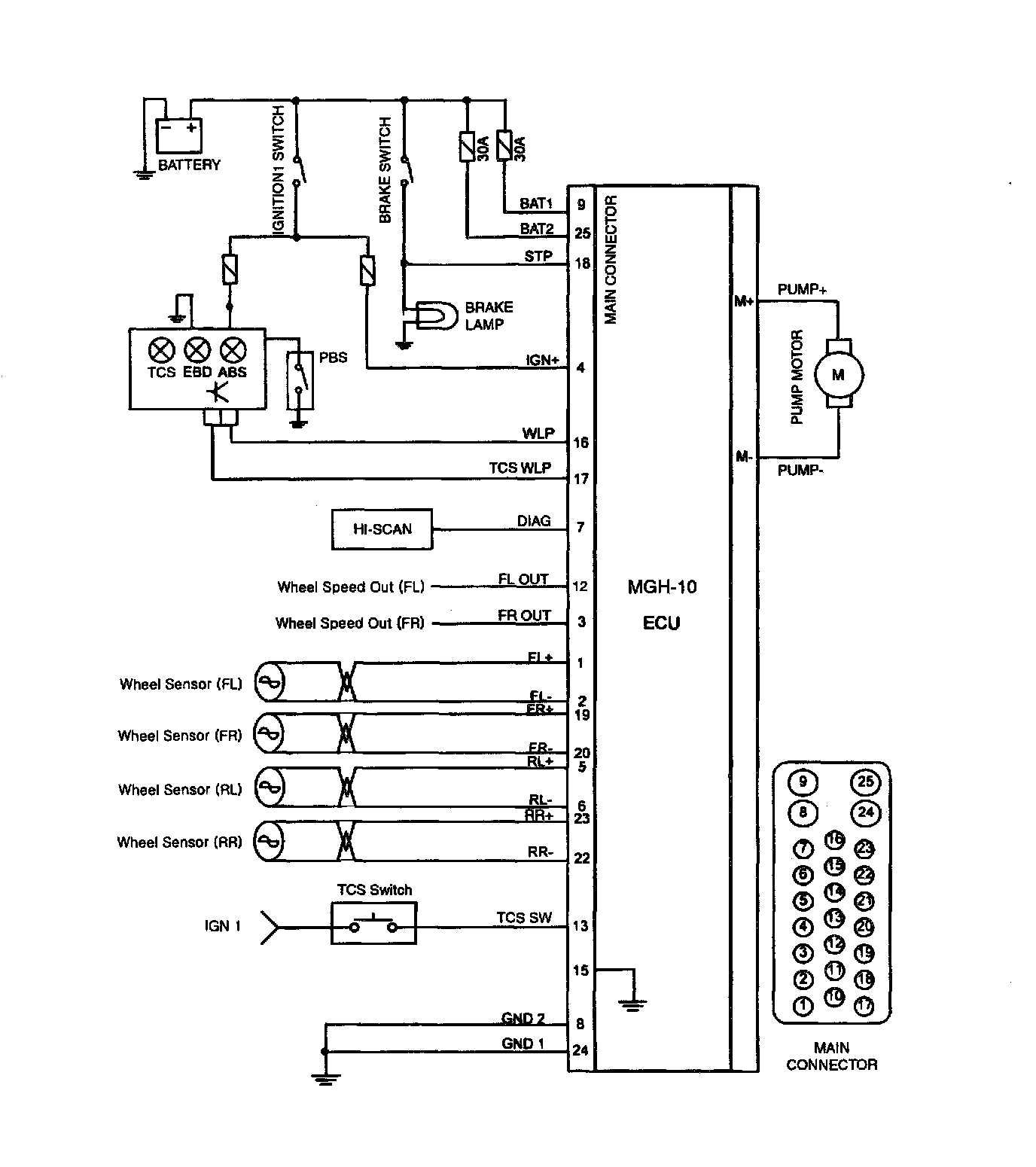

EXTERNAL WIRING DIAGRAM (ABS)





EXTERNAL WIRING DIAGRAM (TCS)
