Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Locations

Power Door Lock Switch: Locations

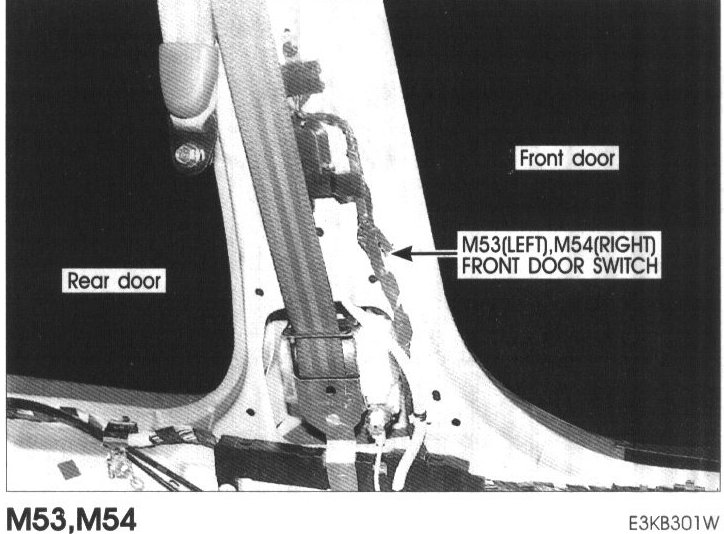

M53 (Left), M54 (Right) Front Door Switch:

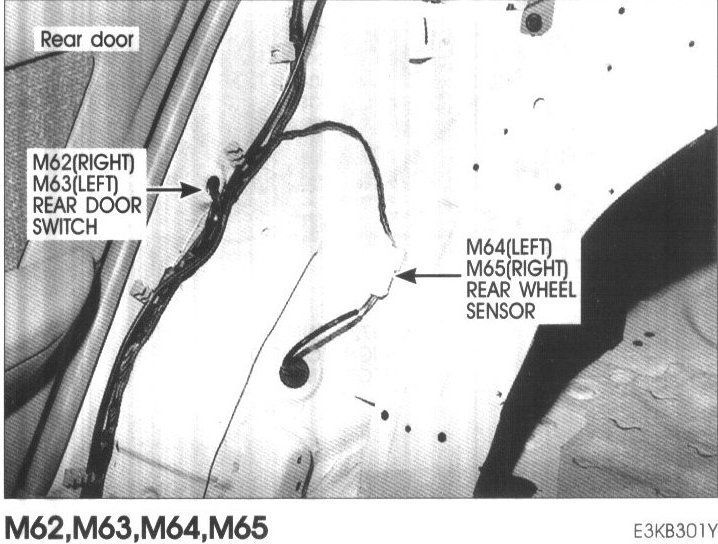

M62 (Right), M63 (Left) Rear Door Switch And M64 (Left), M65 (Right) Rear Wheel Sensor:
