Removal and Replacement

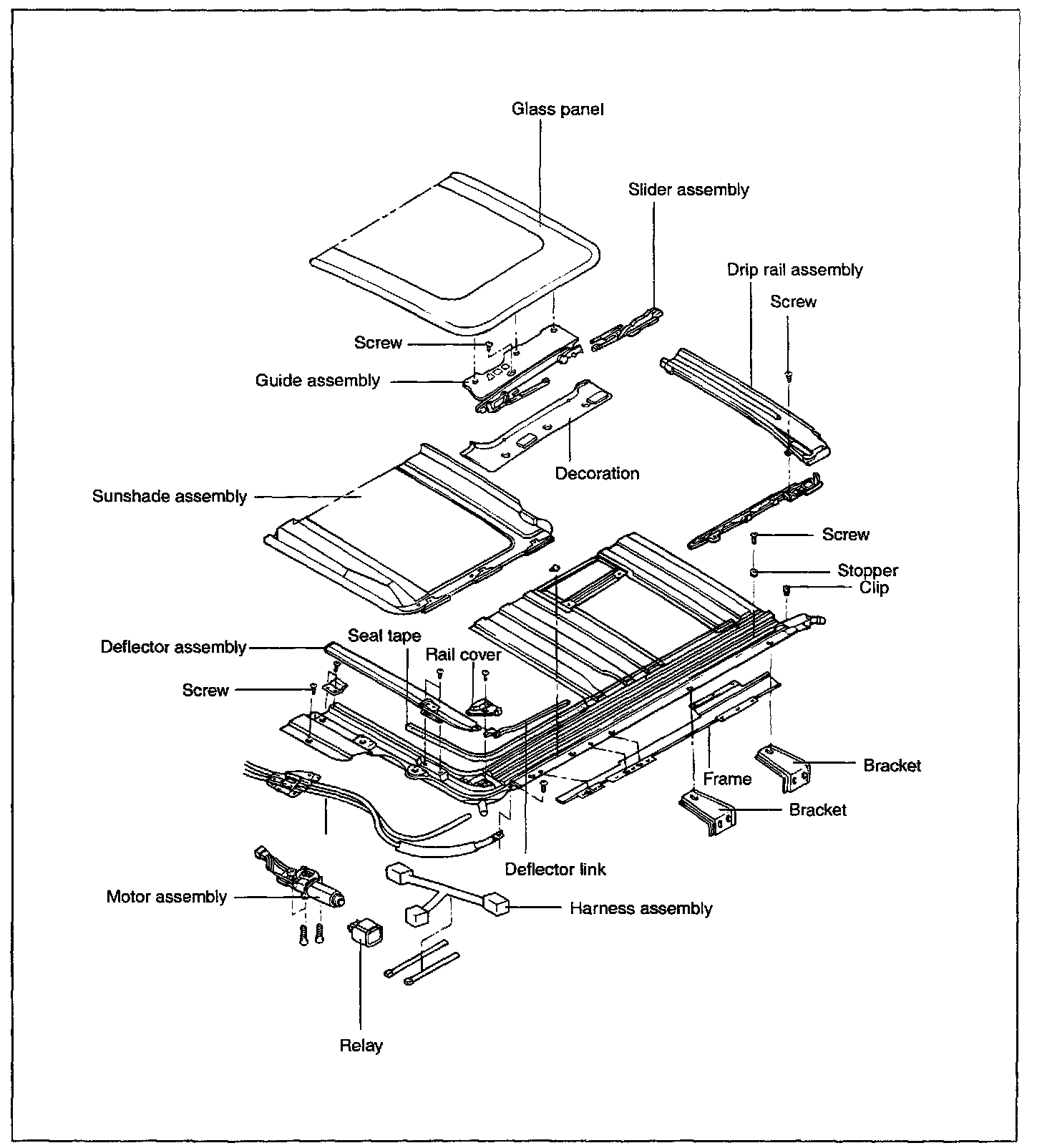

SUNROOFSunroof:
REMOVAL
1. To remove the sunroof, first remove the following parts:
1. Overhead console lamp.
2. Sun visor and grip handle.
3. Pillar trims.
2. Remove the decoration cover and the glass panel.
Tightening torque
Glass panel mounting nuts : 4 - 6 Nm (40 - 60 kg.cm, 2.9 - 4.4 lb.ft)

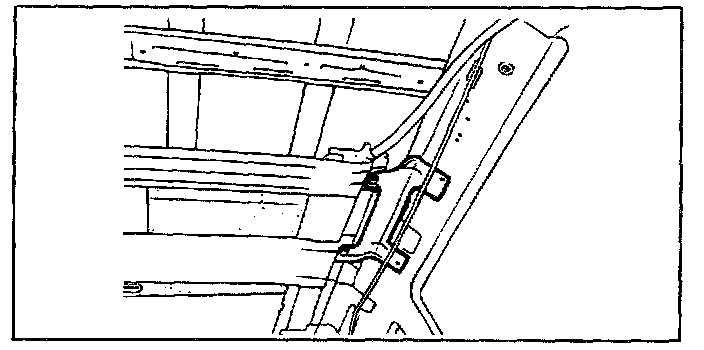

3. Disconnect the drain hose.

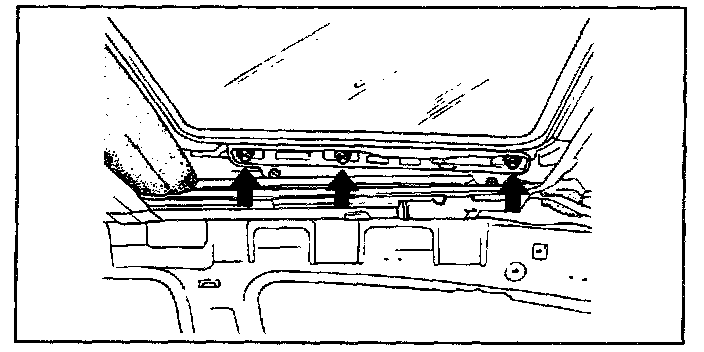

4. Loosen the bolts and nuts holding the sunroof and then remove the sunroof assembly.
Tightening torque
Sunroof mounting bolts : 7 - 11 Nm (70 - 110 kg.cm, 5.1 - 8.0 lb.ft)
Sunroof mounting nuts : 4 - 6 Nm (40 - 60 kg.cm, 2.9 - 4.4 lb.ft)
NOTE: When removing the sunroof assembly, carefully pull out the assembly to avoid damaging other parts.
INSTALLATION
Installation is the reverse of removal.

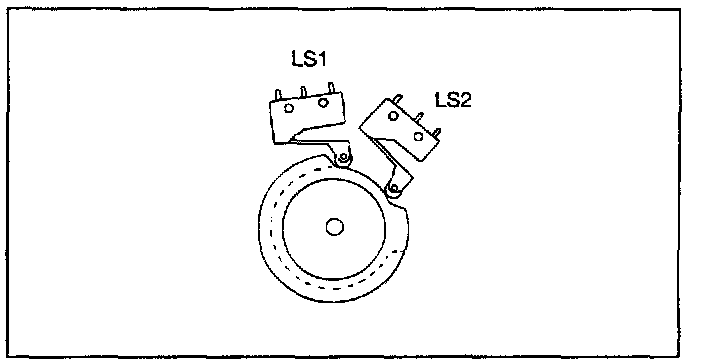

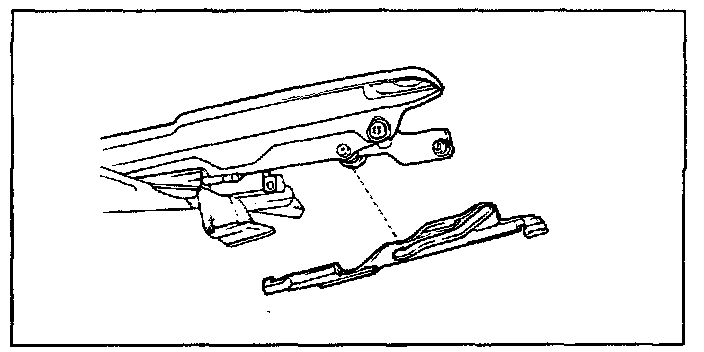

NOTE: Check that the limit switches (LS1 and LS2) of the motor are fully closed. Align the guide roller center and slider mating marks in the fully closed position.
