Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

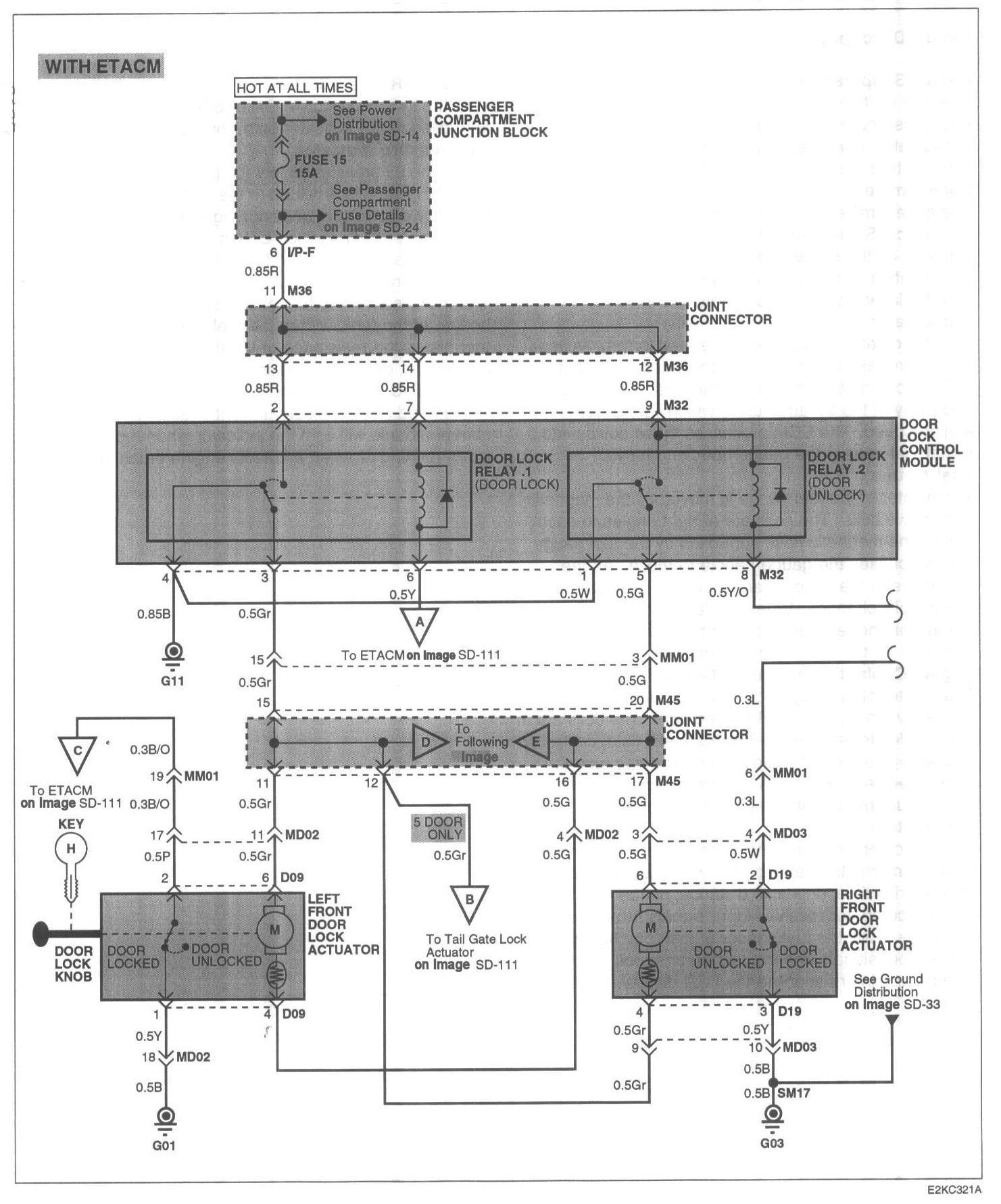

Image SD-110 Power Door Locks (1):

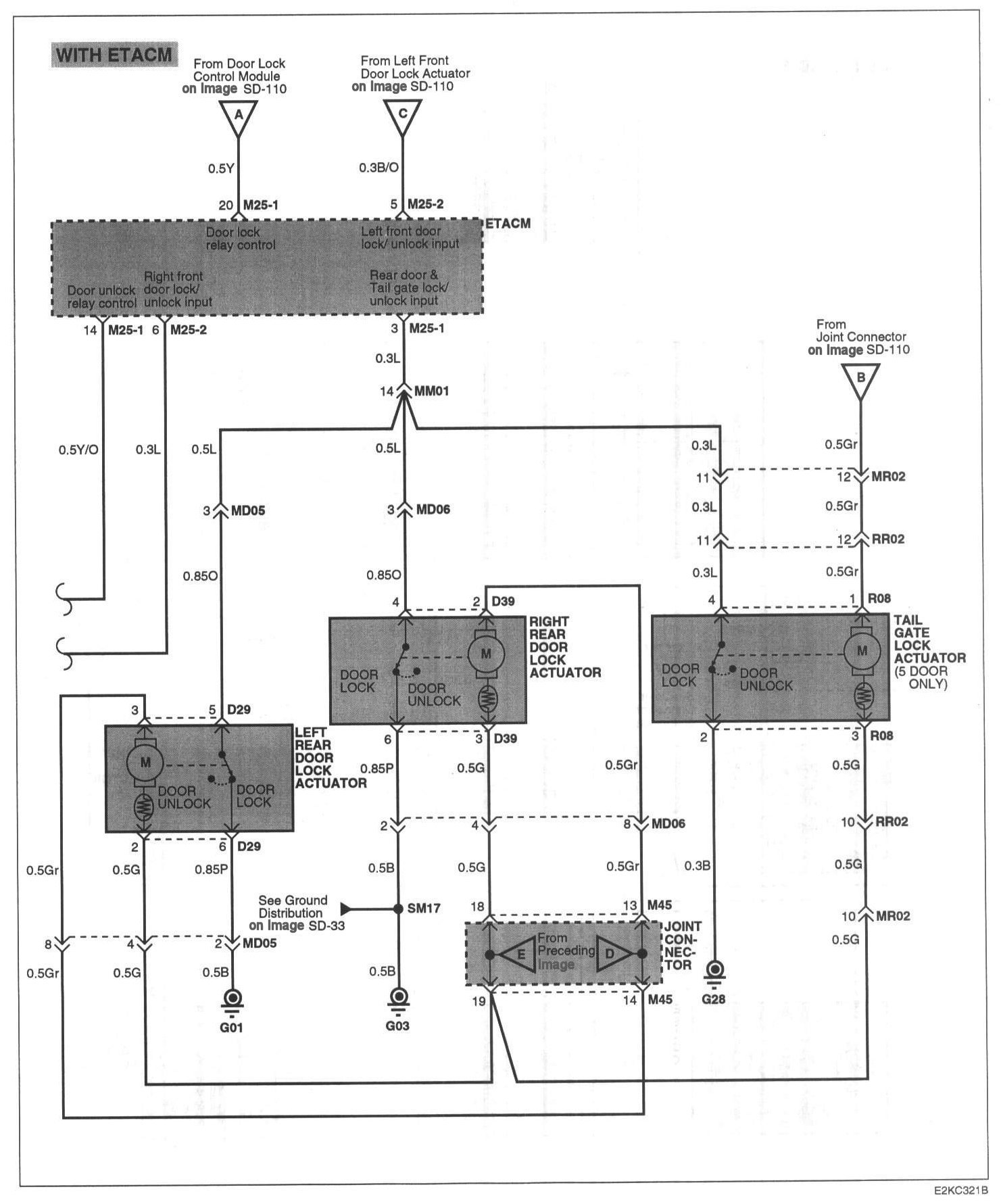

Image SD-111 Power Door Locks (2):

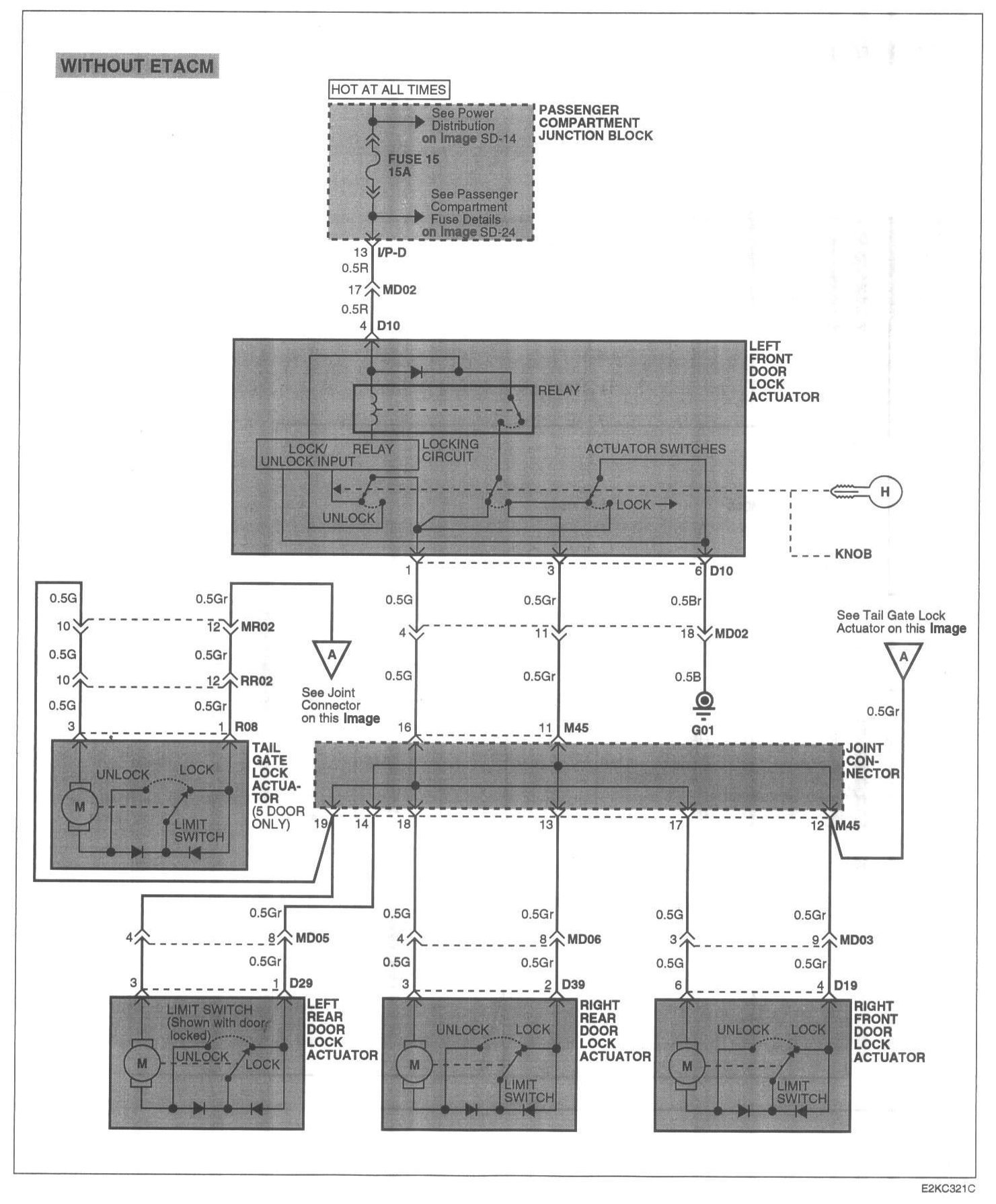

Image SD-112 Power Door Locks (3):
