Trim Panel: Service and Repair

REMOVAL

Interior Trim:

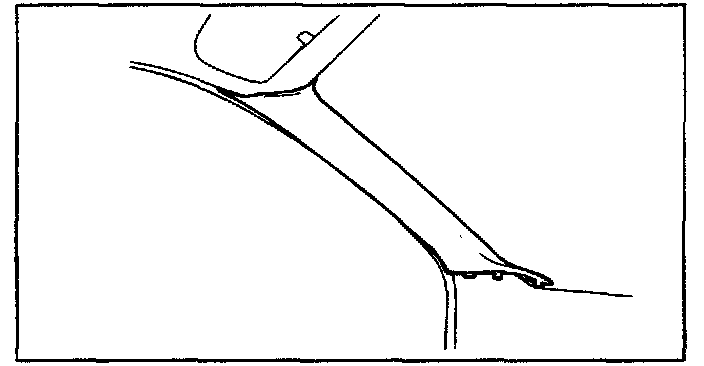

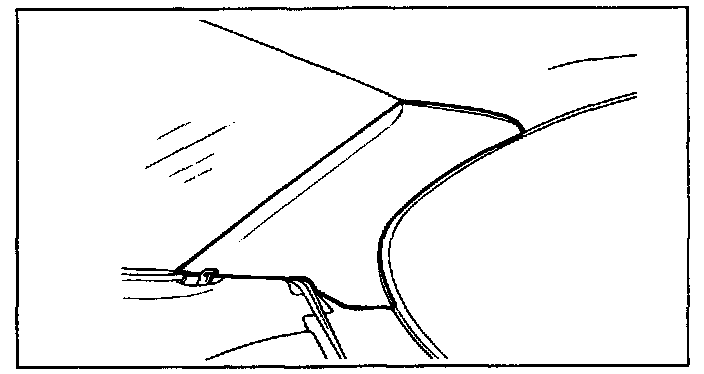

FRONT PILLAR TRIM
Pry loose the front pillar trim with a fiat-bladed screw-driver.

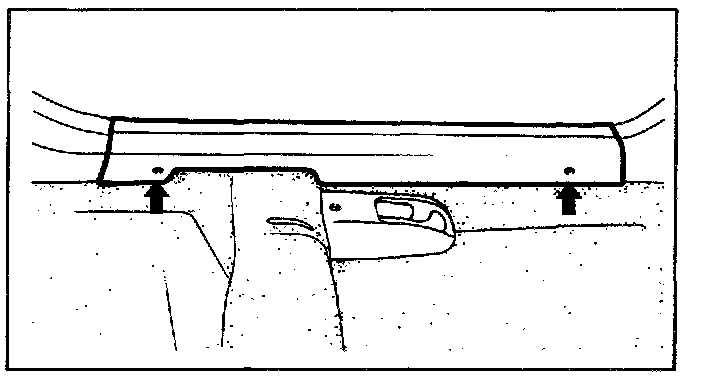

FRONT DOOR SCUFF TRIM
1. Remove the plugs from the front door scuff trim.
2. Remove the front door scuff trim.

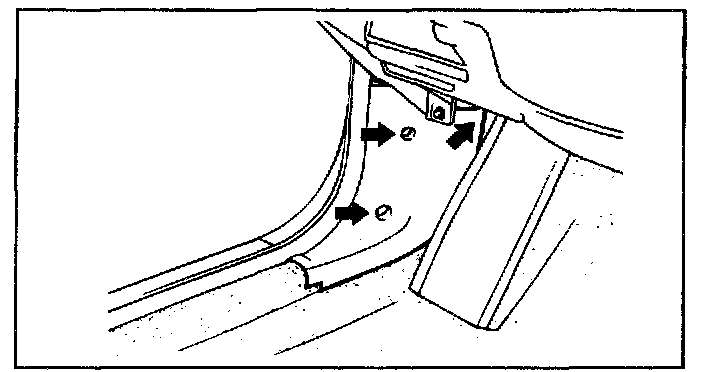

COWL SIDE TRIM
Remove the cowl side trim.

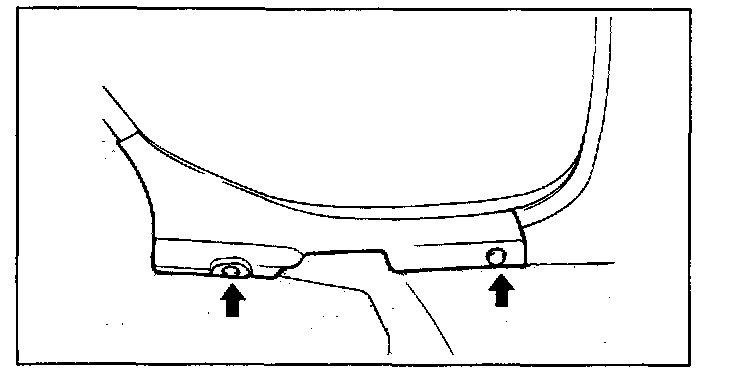

REAR DOOR SCUFF TRIM
1. Remove the rear seat cushion.
2. Remove the rear door scuff trim.

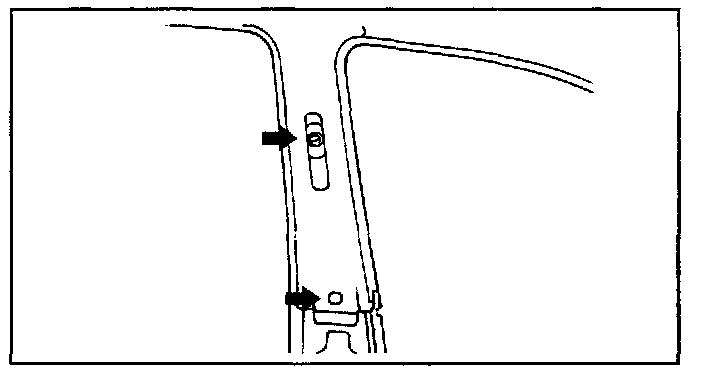

CENTER PILLAR TRIM




1. Remove the bolt holding the seat belt lower anchor and pry loose the center pillar lower trim.




2. Remove the bolt holding the seat belt upper anchor and pry loose the center pillar upper trim.

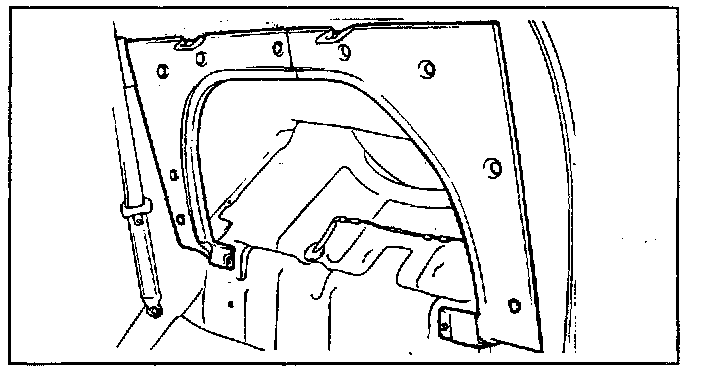

REAR PILLAR TRIM
1. Remove the rear seat back.
2. Pry loose the rear pillar trim with a screwdriver.

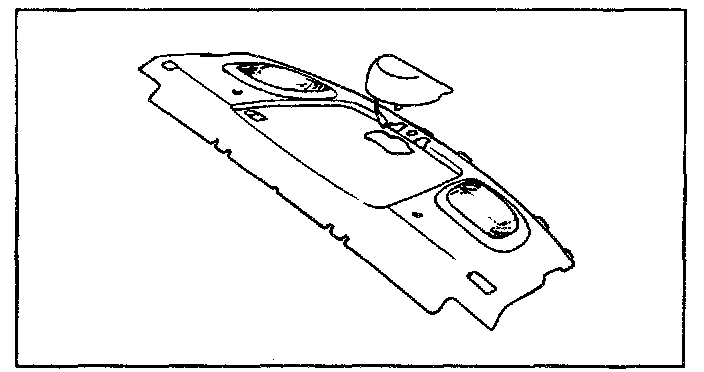

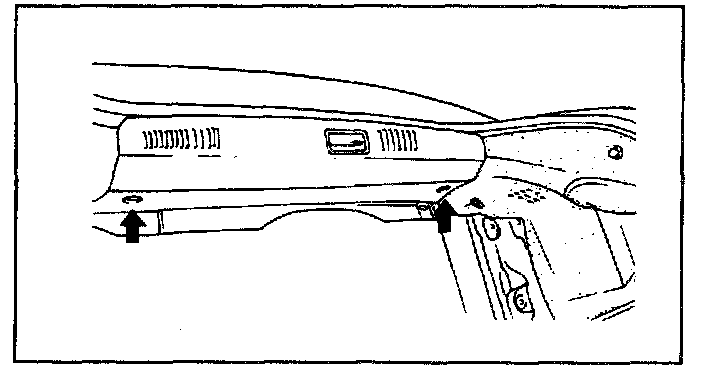

REAR PACKAGE TRAY TRIM
1. Remove the rear seat




2. Remove the partition trim after removal of plugs.

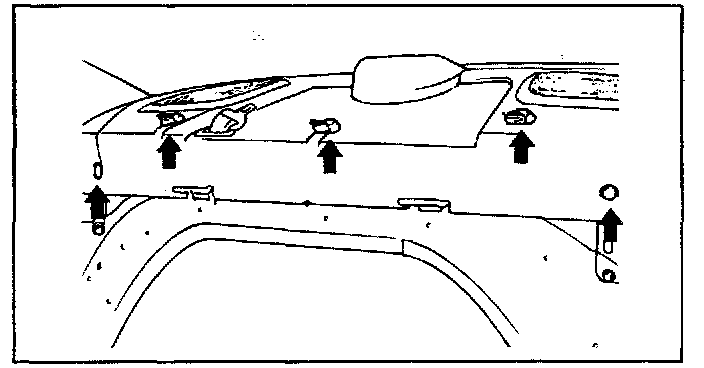

3. Remove the bolts and plugs holding the rear package tray trim and remove the trim.

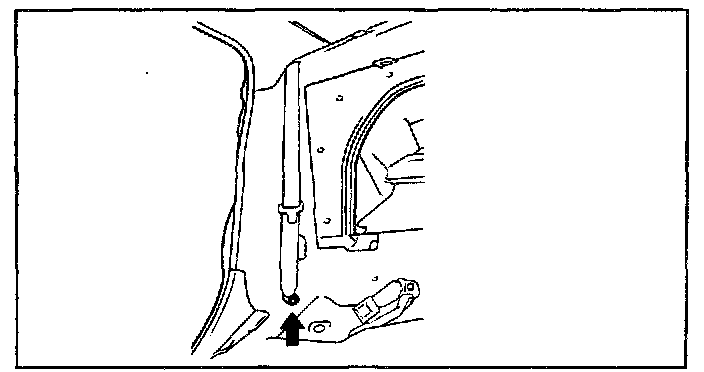

4. Remove the bolt holding the rear seat belt lower anchor.
5. Remove the rear package tray trim.




REAR TRANSVERSE TRIM
Remove the rear transverse trim after removal of plugs.
