Console Lamp: Service and Repair

OVERHEAD CONSOLE LAMP (WITH SUN ROOF)
1. Disconnect the negative (-) battery terminal.

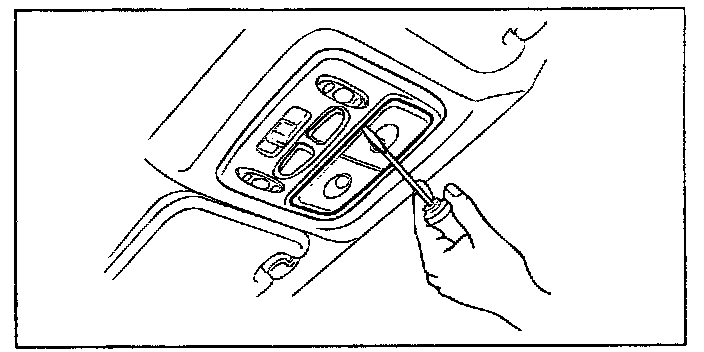

2. Using a flat-bladed screwdriver, detach the map lamp lens.

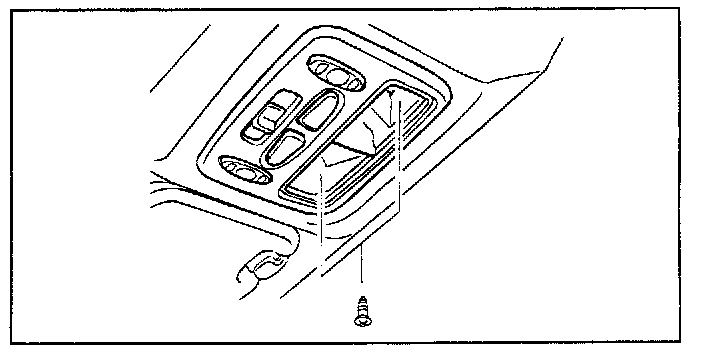

3. Detach the lamp assembly from the headliner after removing the screws.
4. Installation is the reverse of removal.
