Trunk

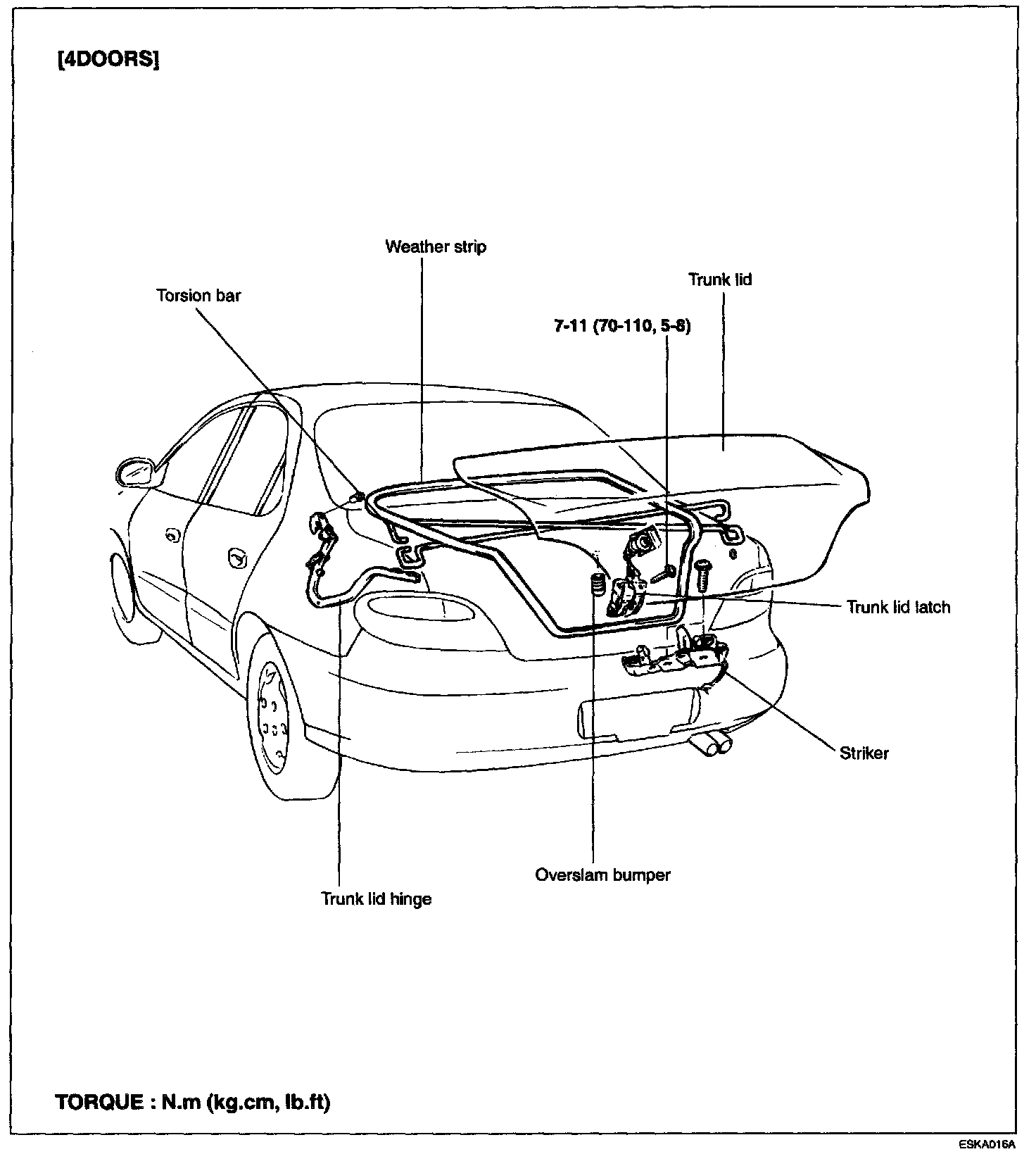

Trunk Lid Components:

REMOVAL AND INSTALLATION

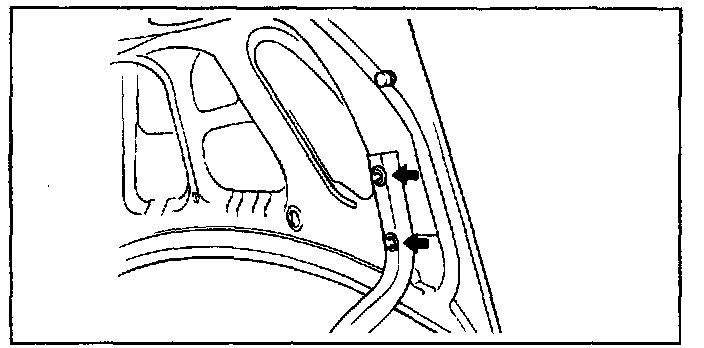

1. Remove the trunk lid hinge mounting boils and remove trunk lid.

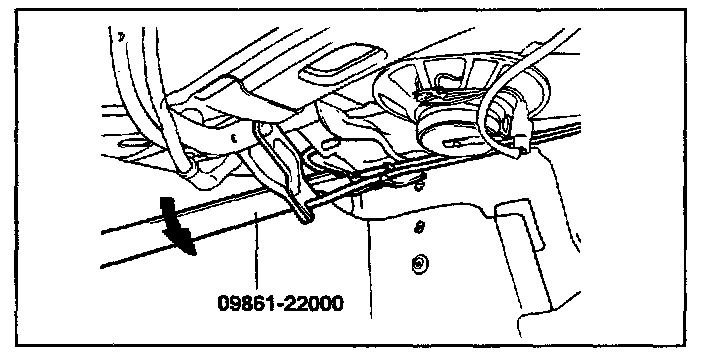

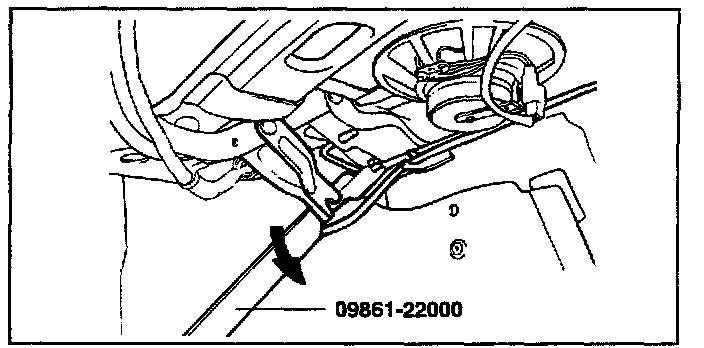

2. Remove the torsion bar by using the torsion bar wrench (09861 - 22000) as shown in the illustration.

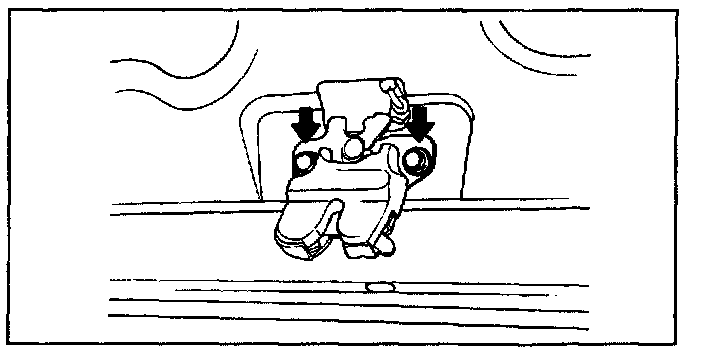

3. Remove the trunk lid latch and trunk lid lock.




4. Installation is the reverse of removal.
