Rear Door: Service and Repair
REAR DOORREMOVAL AND INSTALLATION

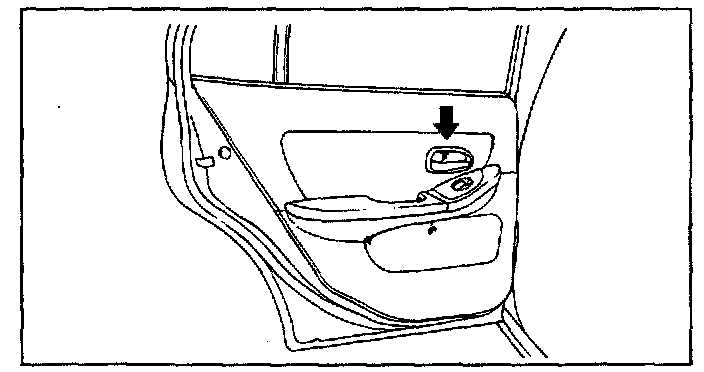

1. Remove the screw holding the inside door handle trim.

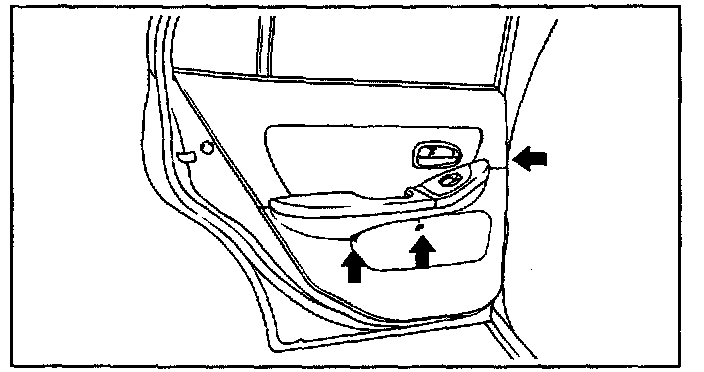

2. Remove the screws holding the door trim panel.

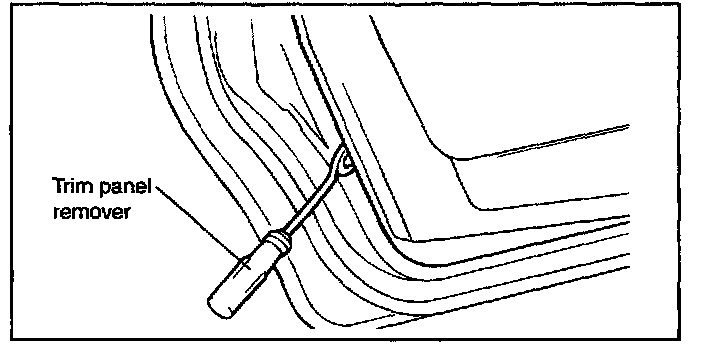

3. Insert a trim panel remover between the trim fasteners and the door trim panel to pry off. Disconnect the wire connectors from the rear door.

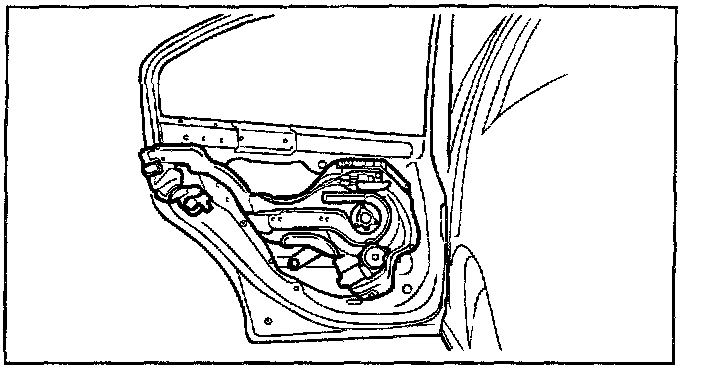

4. Remove the door vapor barrier.

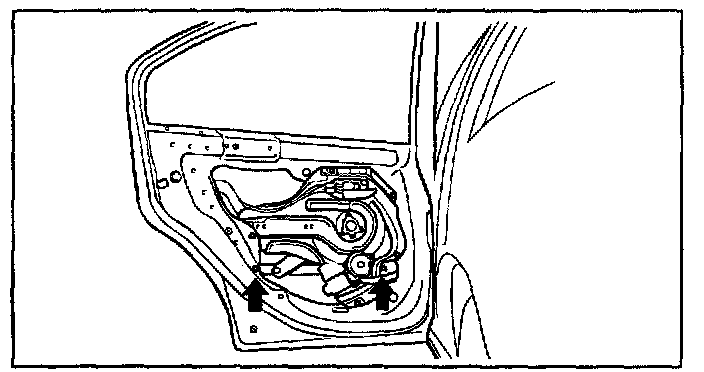

5. Roll the rear door glass down and then remove the bolts holding the rear door glass.

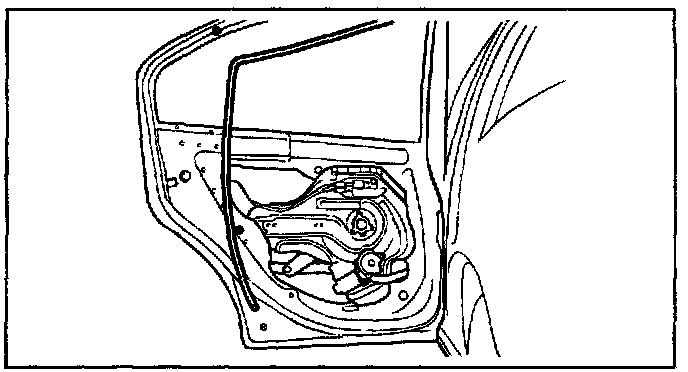

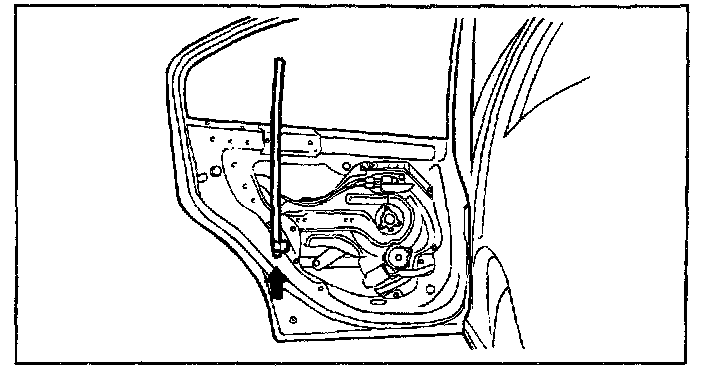

6. Remove the rear door glass run.

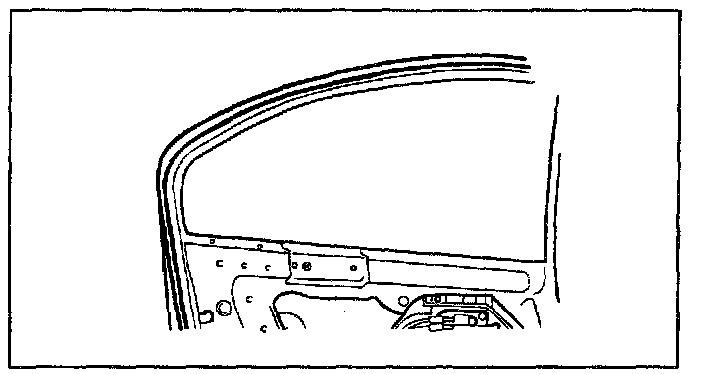

7. Remove the division channel from the rear door and then remove the rear door glass.
8. Remove the fixed glass from the rear door.
9. Disconnect the rod from the outside handle.
Remove the bolts holding the latch and the door lock actuator.

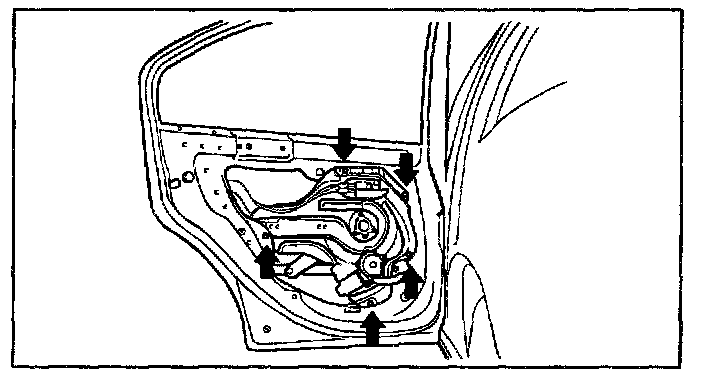

10. Remove the rear door module.
11. Installation is the reverse of removal.
When installing the door vapor barrier, butyl tape should not be placed to block the door trim fastener holes.
