Front Door: Service and Repair

FRONT DOOR

REMOVAL AND INSTALLATION

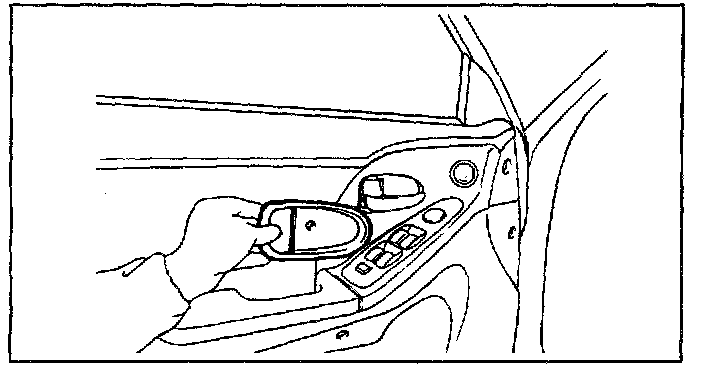

1. Remove the screw holding the inside door handle trim.

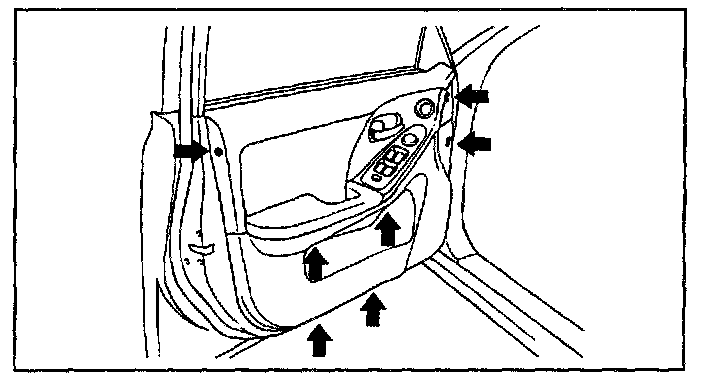

2. Remove the screws holding the door trim panel.

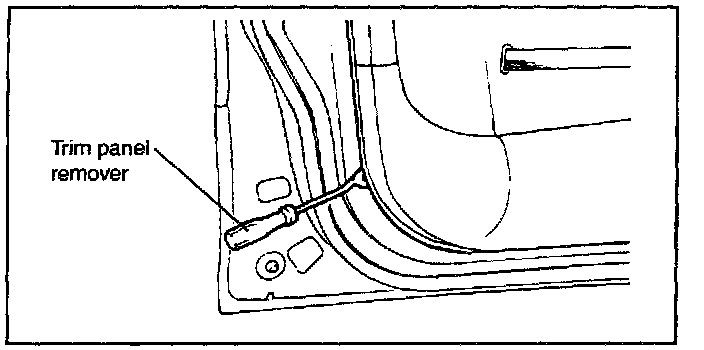

3. Insert a trim panel remover between the trim fasteners and the door trim panel to pry off.

Disconnect the wire connectors from the front door.

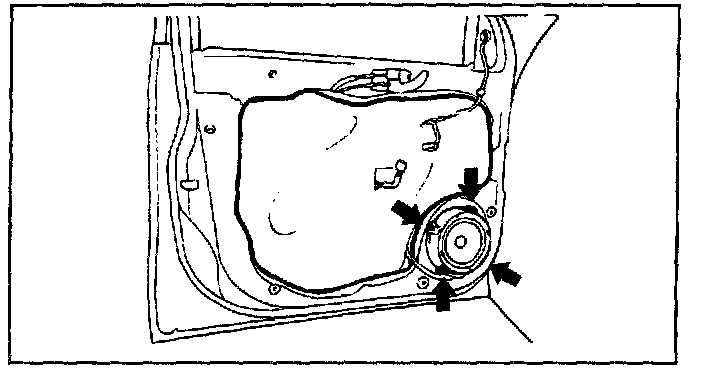

4. Remove the front speaker and the door vapor barrier.

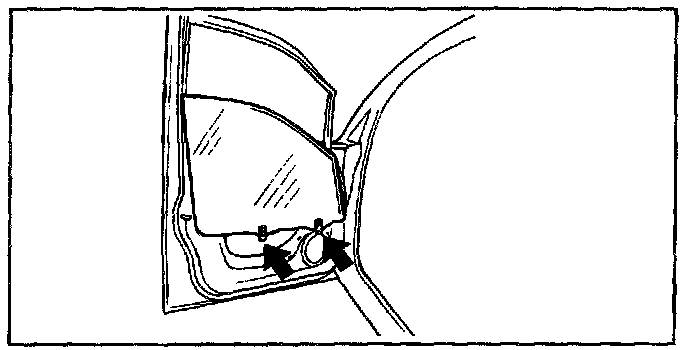

5. Roll the door glass down and then remove the bolts holding the front door glass.




6. Remove the front door glass from the front door module.

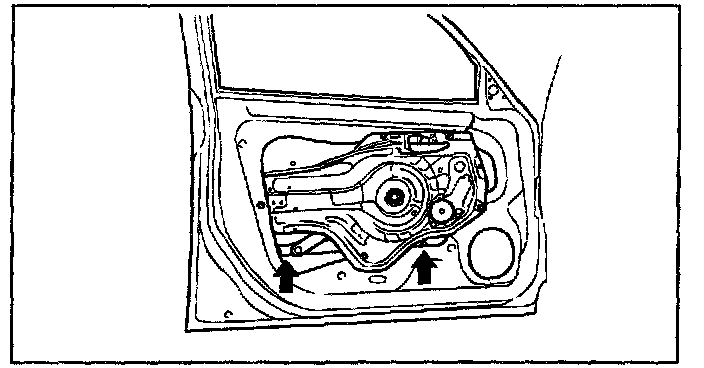

7. Remove the front door window glass run.

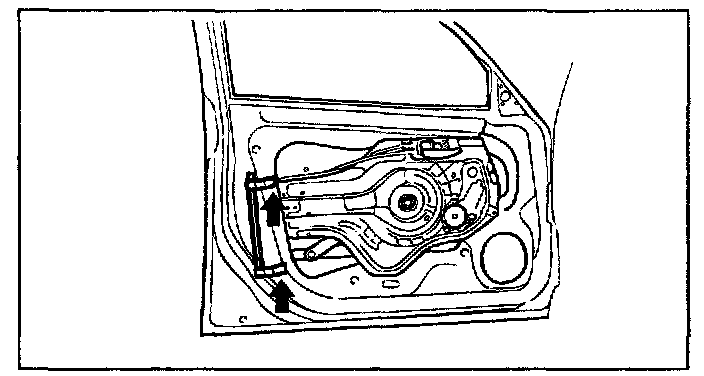

8. Remove the rear channel from the front door.

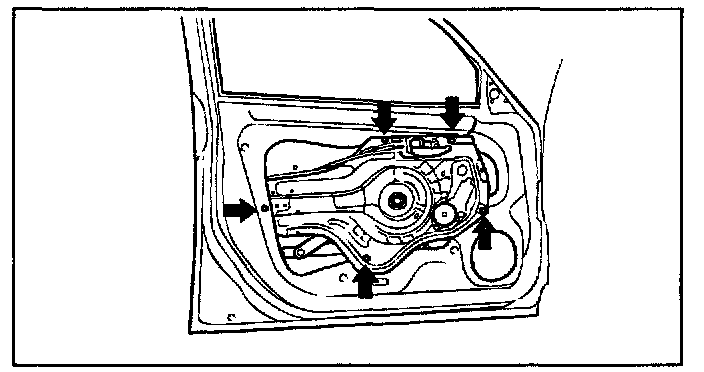

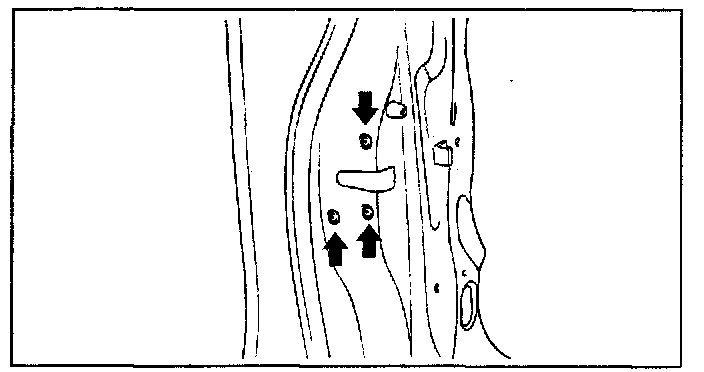

9. Remove the bolts holding the outside handle, the latch, and the door lock actuator.
Disconnect the connectors from the front door module.

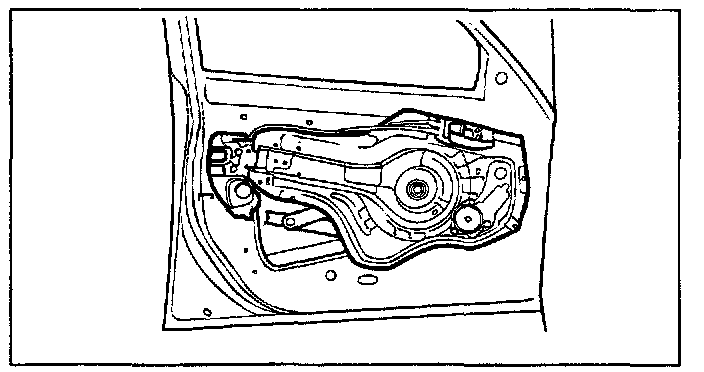

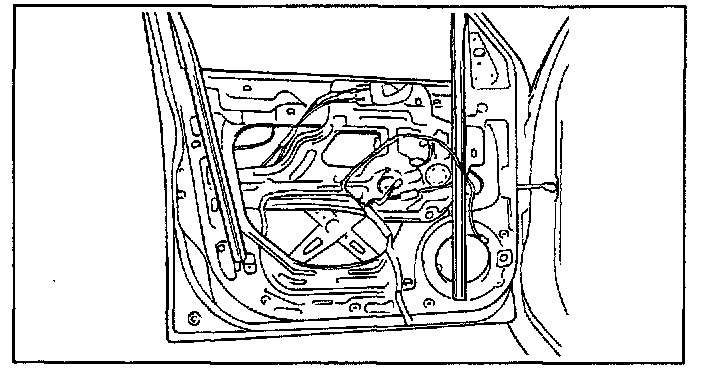

10. Remove the front door module.

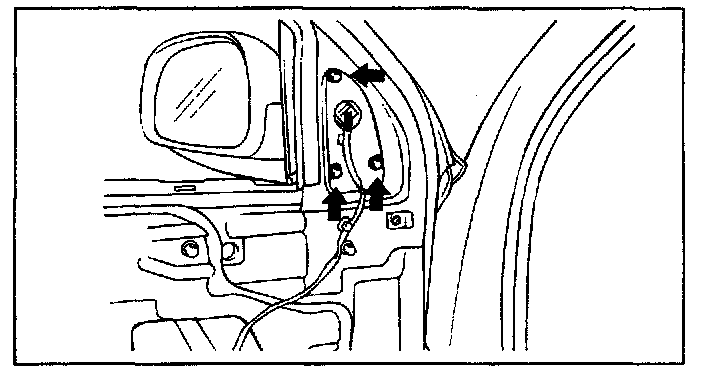

11. Remove the outside rear view mirror.




12. Installation is the reverse of removal.
When installing the door vapor barrier, butyl tape should not be placed to block the door trim fastener holes.
