Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Horn >> Locations

Alarm Horn: Locations

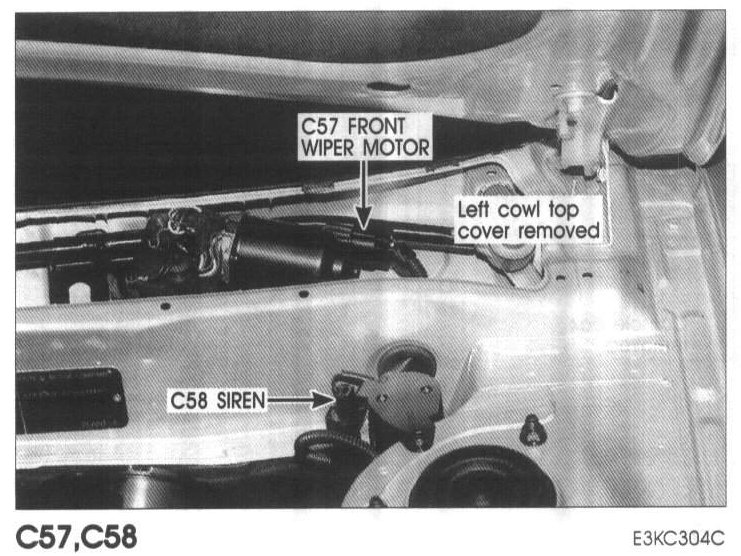

C57 Front Wiper Motor, C58 Siren:

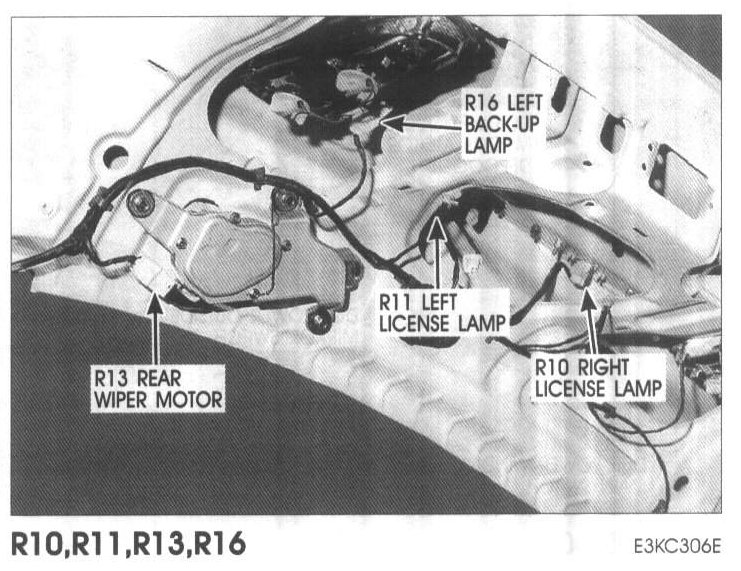

R10(Right), R11(Left) License Lamp (5Door), R13 Rear Wiper Motor, R16 Left Back-Up Lamp:
