Windshield Washer Motor: Testing and Inspection

WASHER MOTOR
1. With the washer motor installed to the washer tank, fill the washer tank with washer fluid.

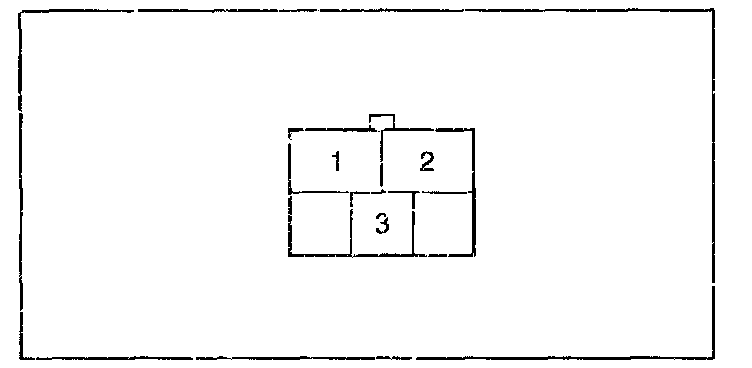

2. Attach the positive (+) lead from the battery to terminal 2, and negative (-) lead to terminal 3.
3. Check that the washer motor runs and washer fluid is ejected.
