Winshield Wiper/Washer

WINDSHIELD WIPER/WASHER

REMOVAL AND INSTALLATION

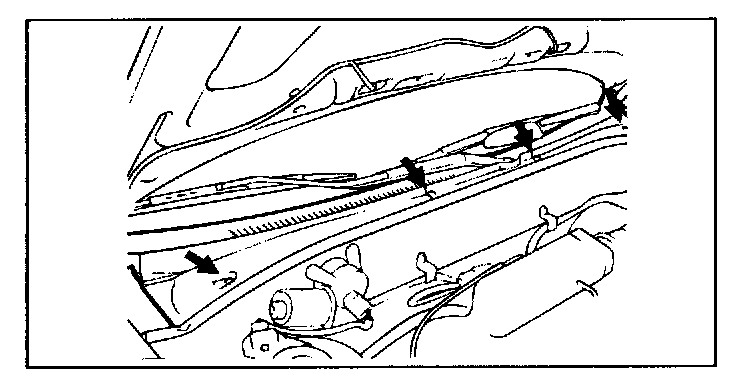

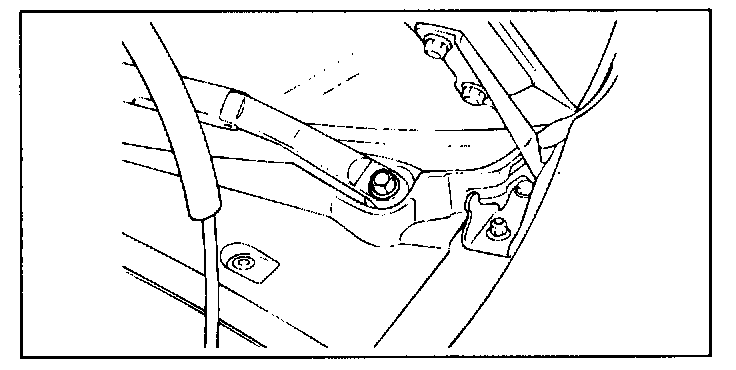

1. After removal of the wiper arm mounting nut, remove the wiper arm and blade assembly. Be careful not to scratch the engine hood.




2. Remove the cowl top cover.

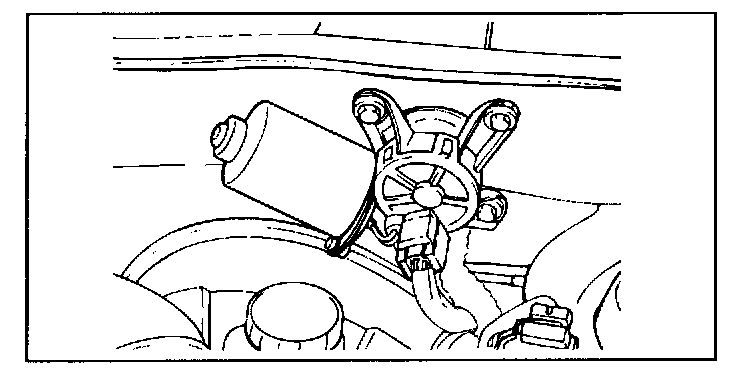

3. Remove the wiper motor.

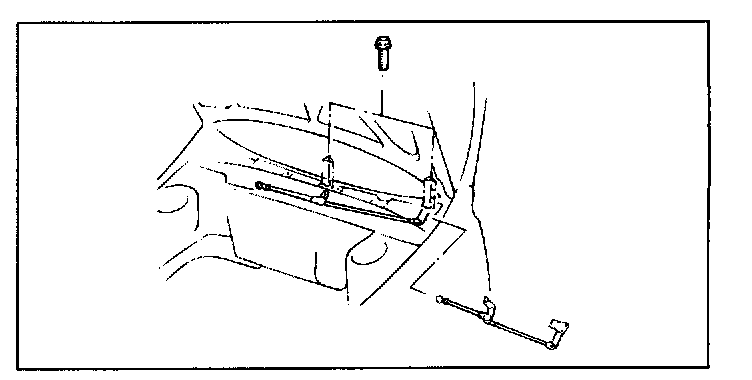

4. Remove the wiper link mounting bolts and take out the wiper link assembly from the cowl top panel.
5. Installation is the reverse of removal.
