Rear Wiper/Washer
Rear Wiper/Washer
Rear Wiper/Washer:
REMOVAL
1.

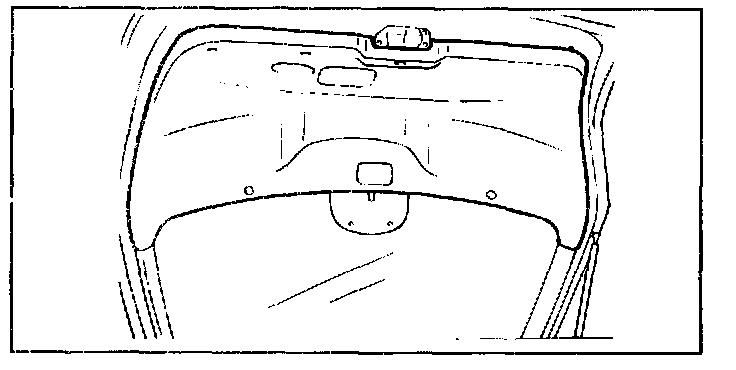

Remove the rear
wiper arm
assembly and tail gate trim.
2.

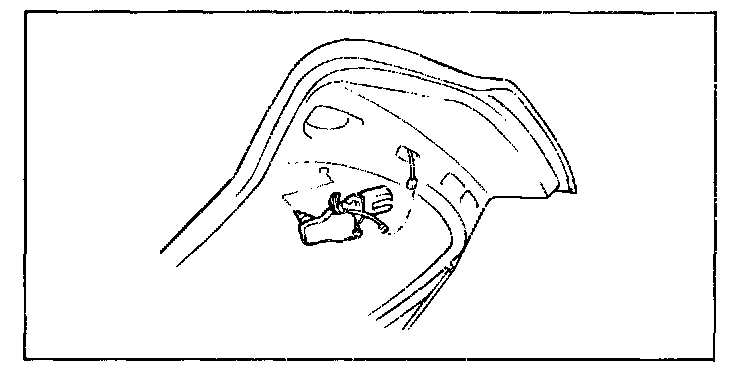

Remove the rear wiper motor from the tailgate.
