Front Wiper and Washer
Front Wiper and Washer

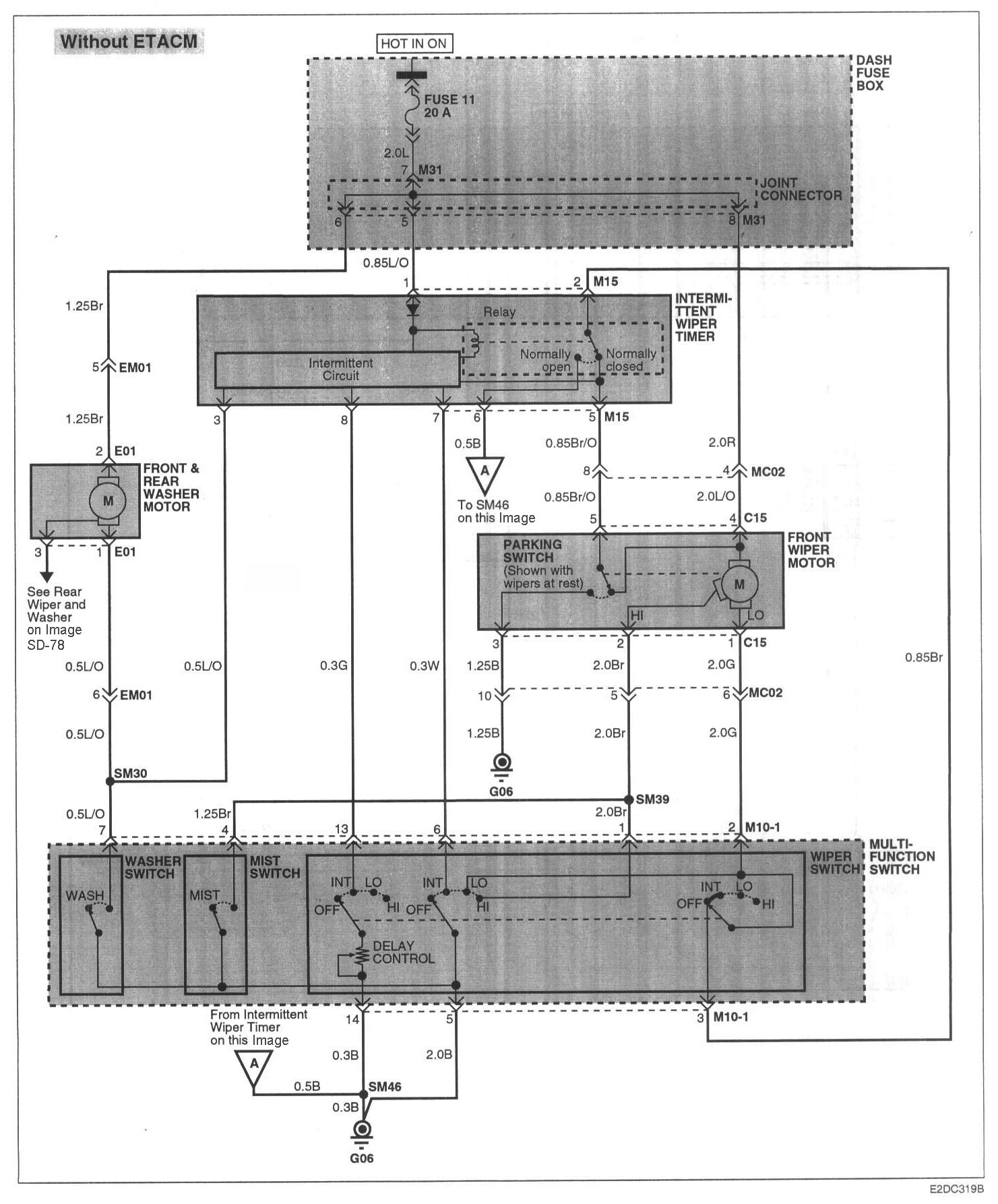

Image SD-74 Front Wiper And Washer (1):

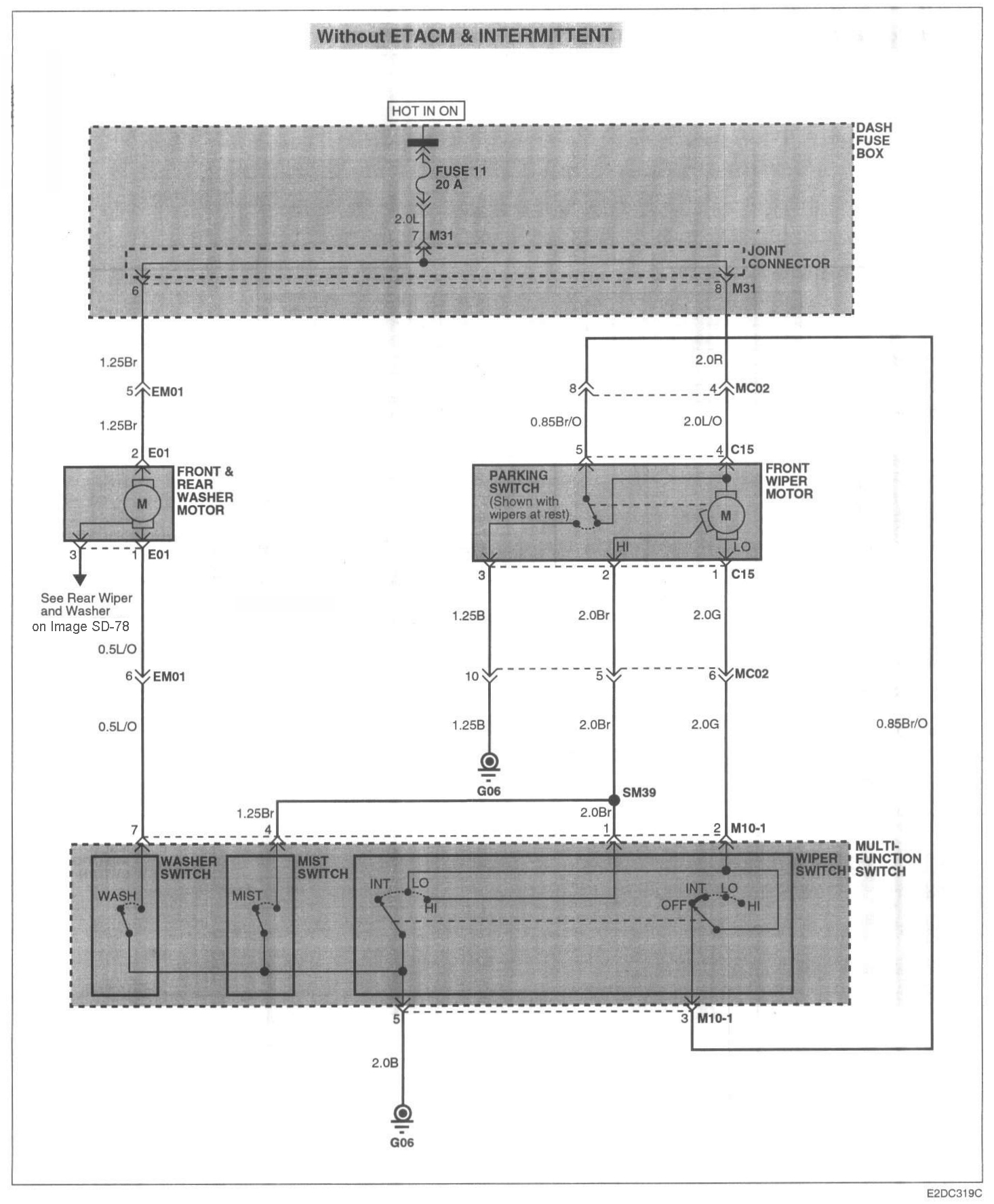

Image SD-75 Front Wiper And Washer (2):

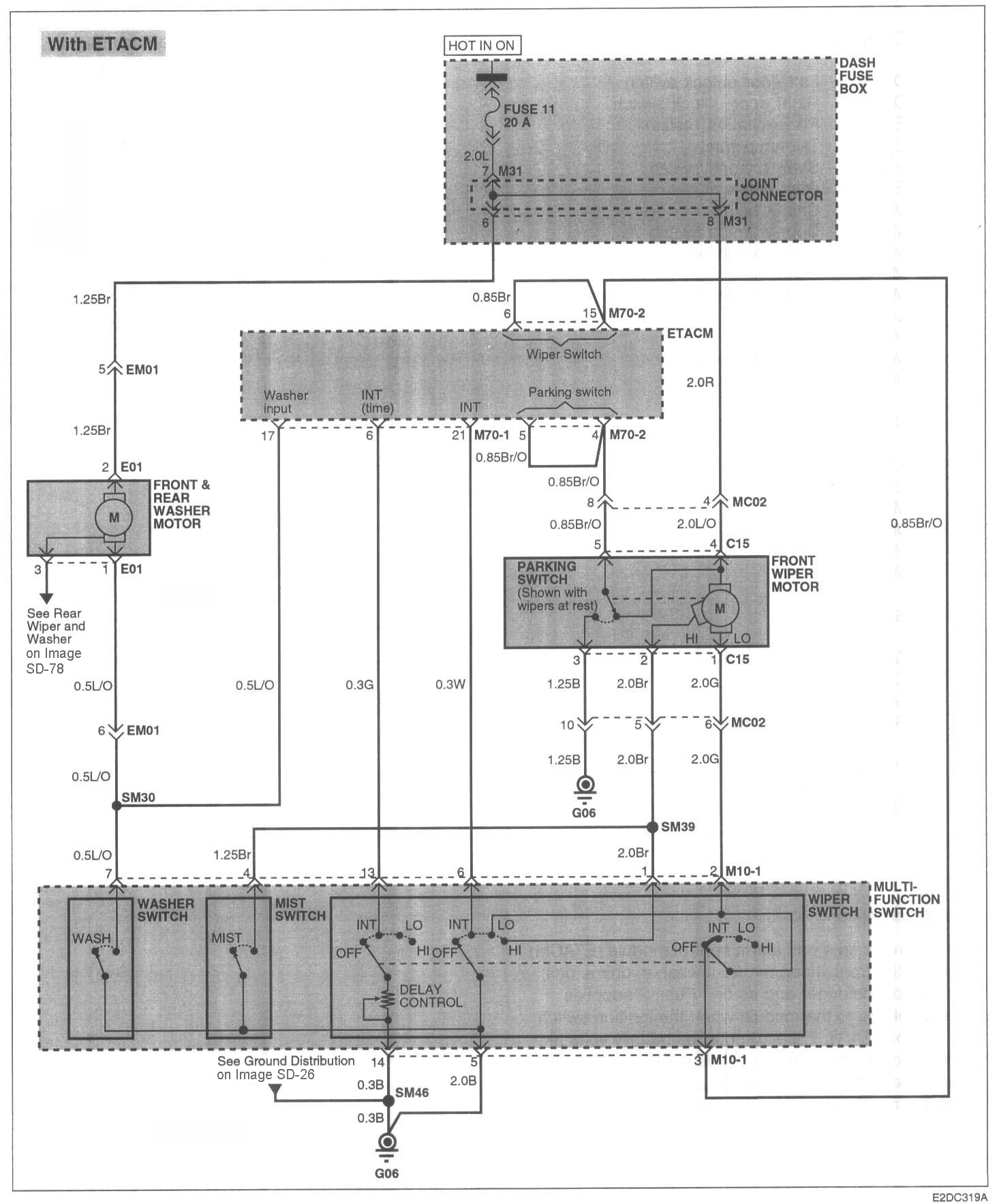

Image SD-76 Front Wiper And Washer (3):
