Electrical Diagrams

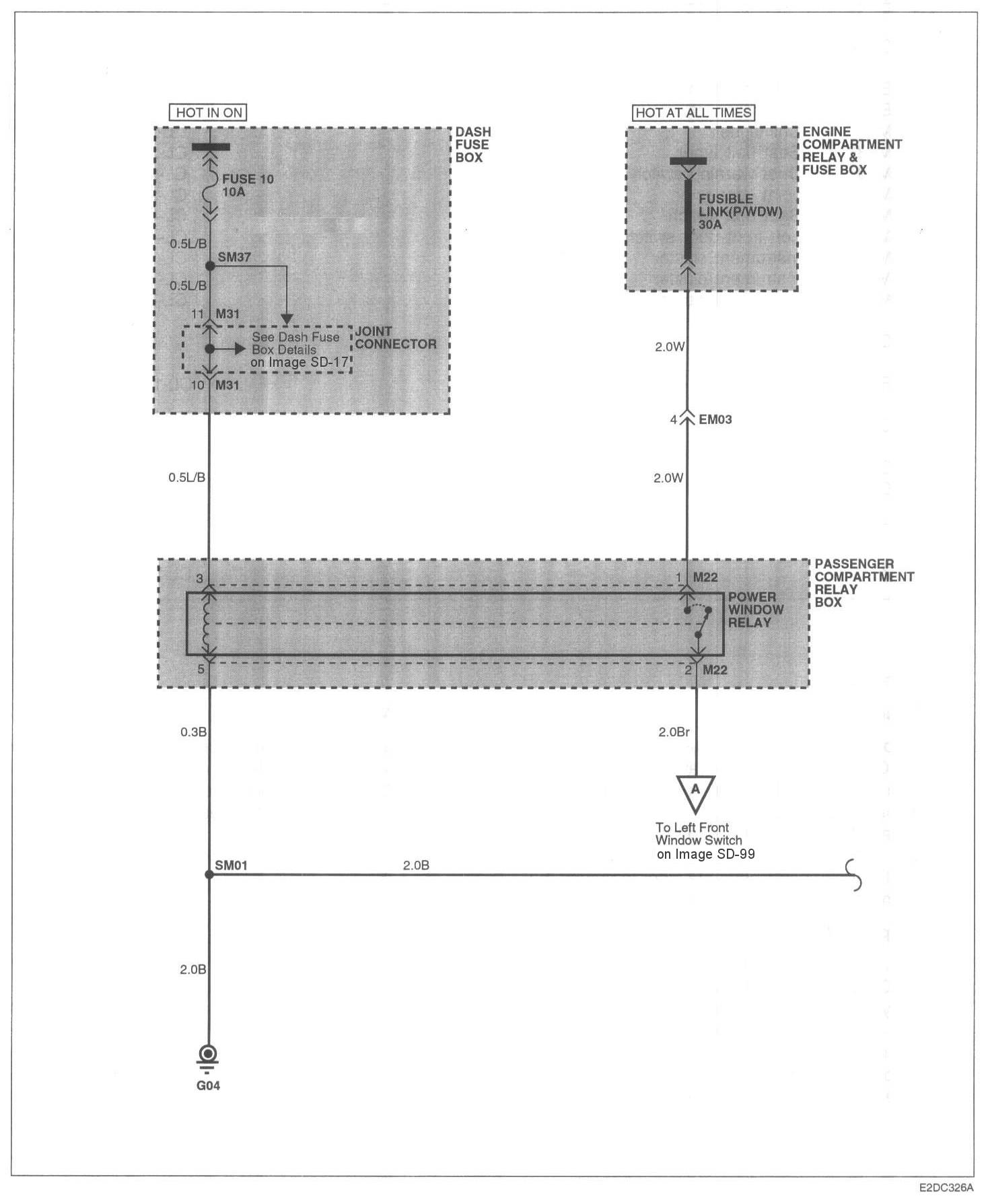

Image SD-98 Power Windows (1):

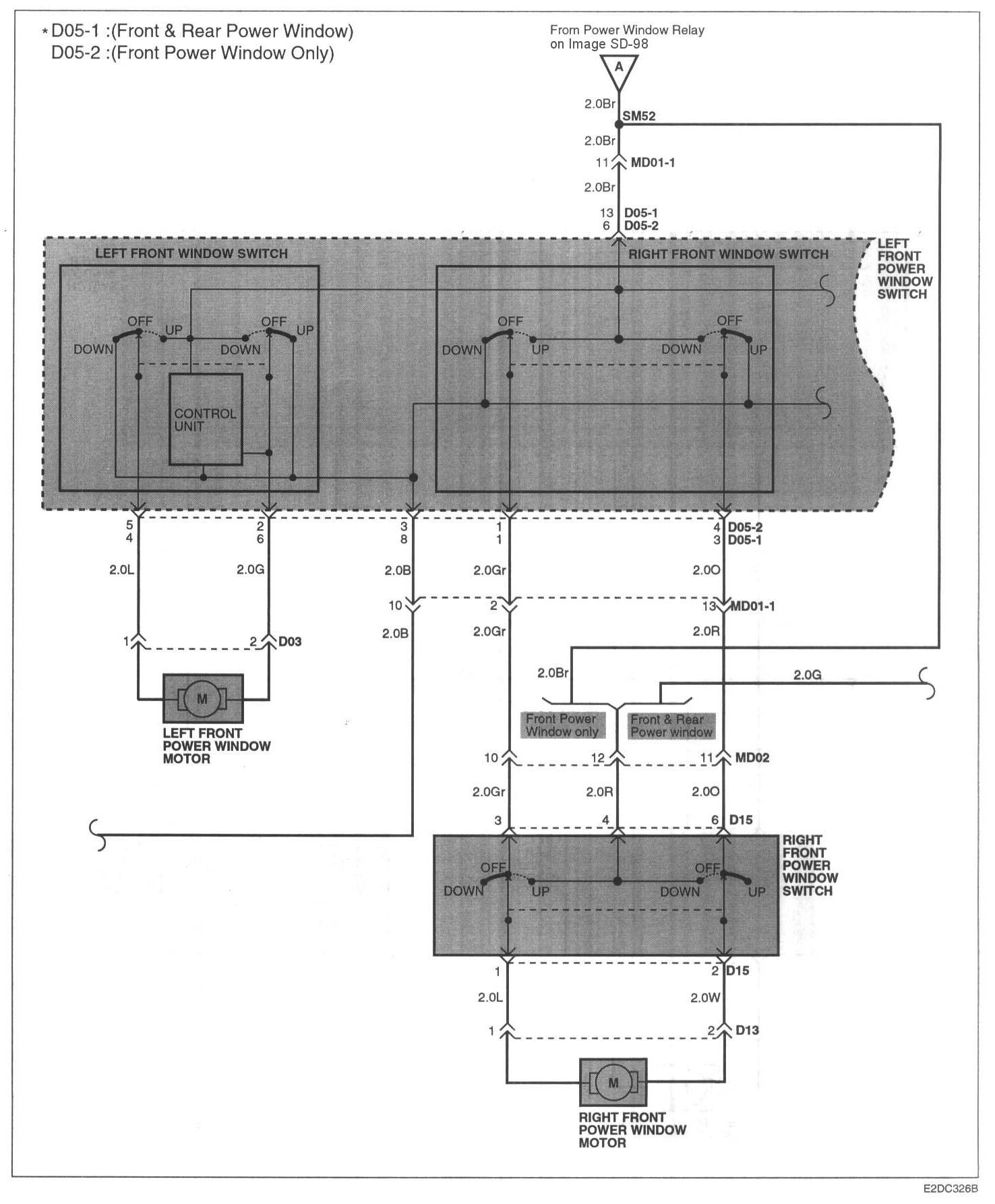

Image SD-99 Power Windows (2):

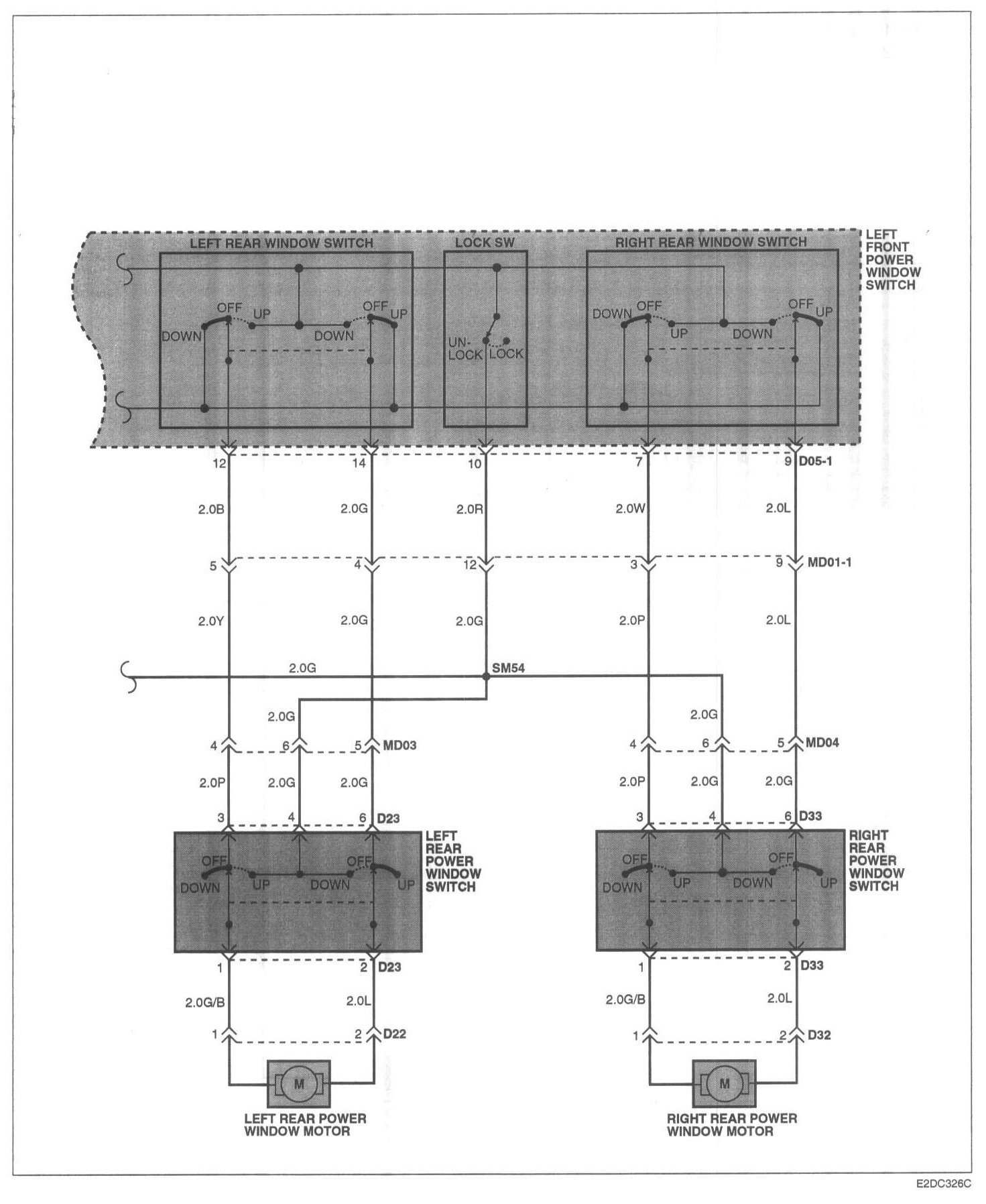

Image SD-100 Power Windows (3):
