Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Diagrams >> Electrical Diagrams

Electrical Diagrams

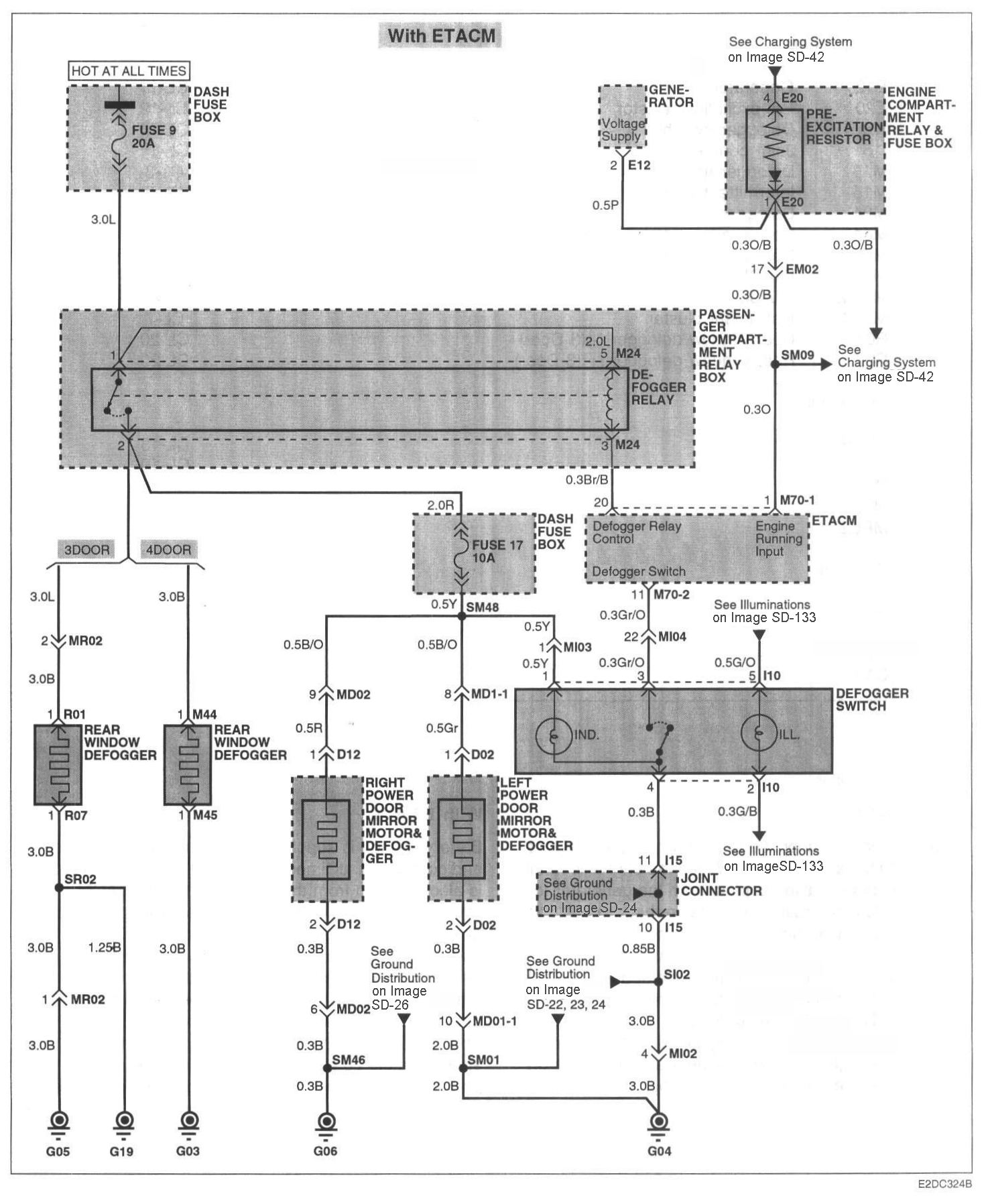

Image SD-92 Rear Window Defogger (1):

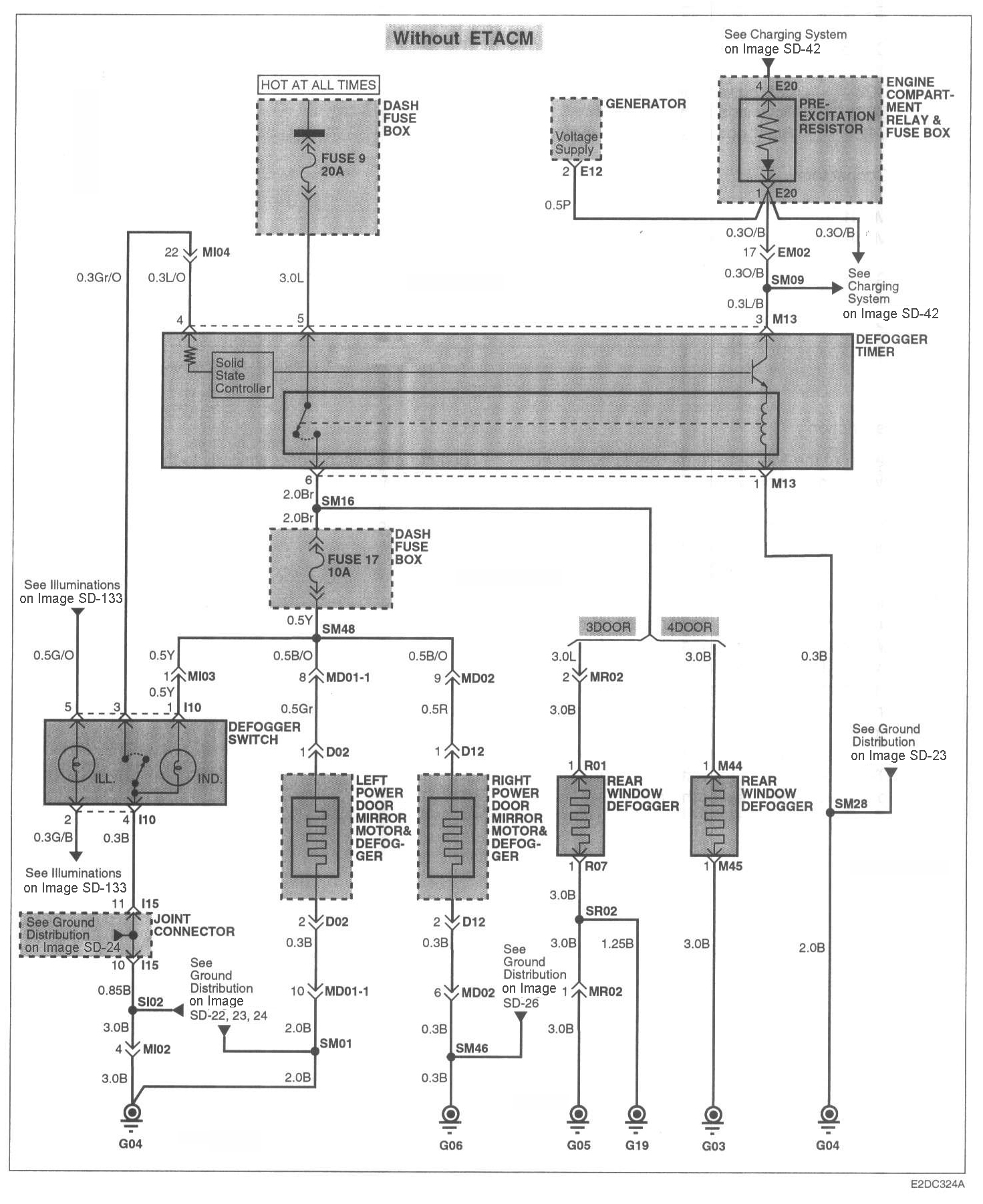

Image SD-93 Rear Window Defogger (2):
