M/T - Clutch Master Cylinder/Tube Updated

Group: CLUTCH

Number: 04-40-017

Date: OCTOBER, 2004

Model: ACCENT

Subject

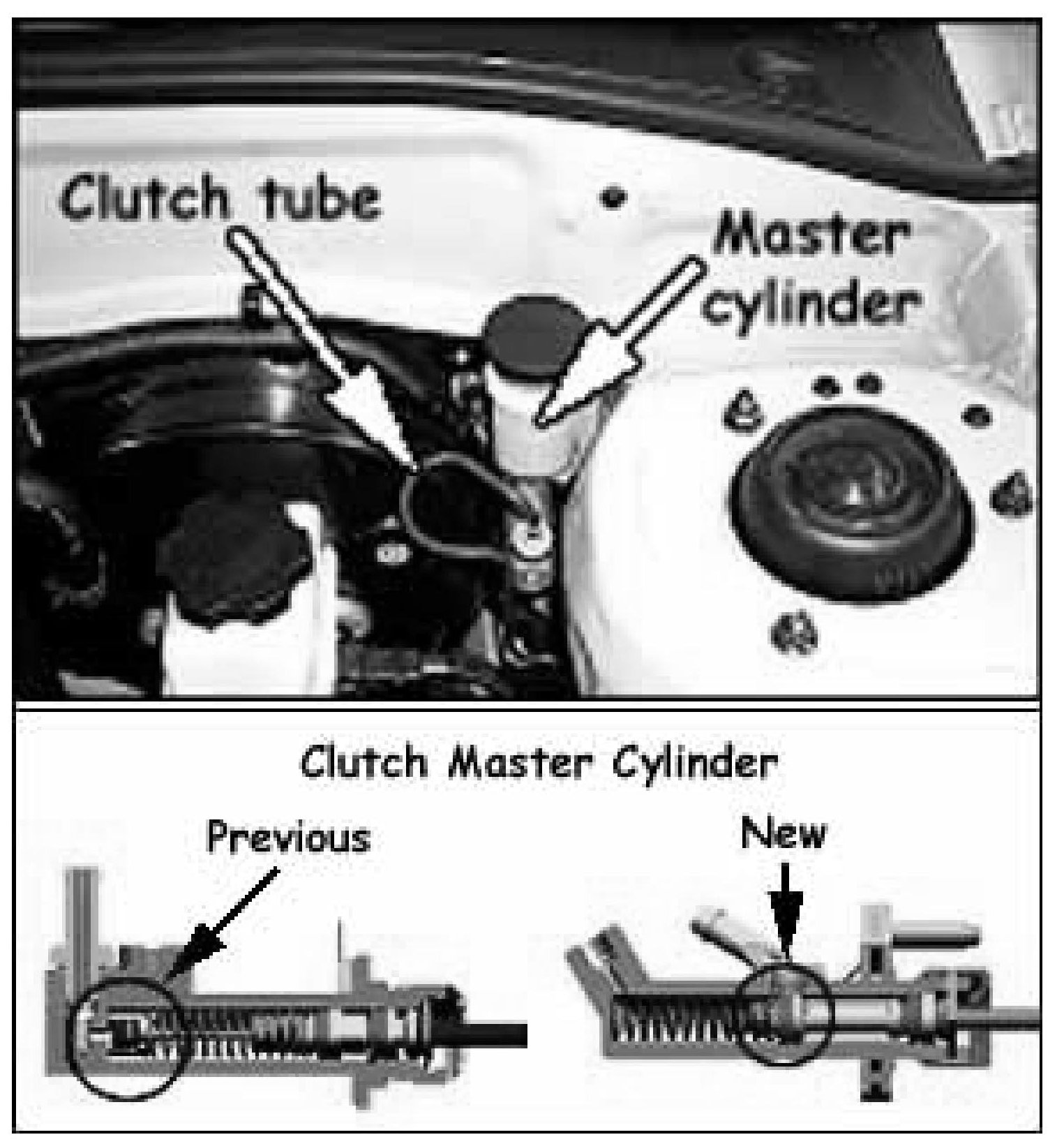

CHANGE OF CLUTCH MASTER ASSEMBLY

DESCRIPTION:





A new style clutch master cylinder has been applied in production beginning on September 16, 2003. This bulletin provides information about the previous and new style components.

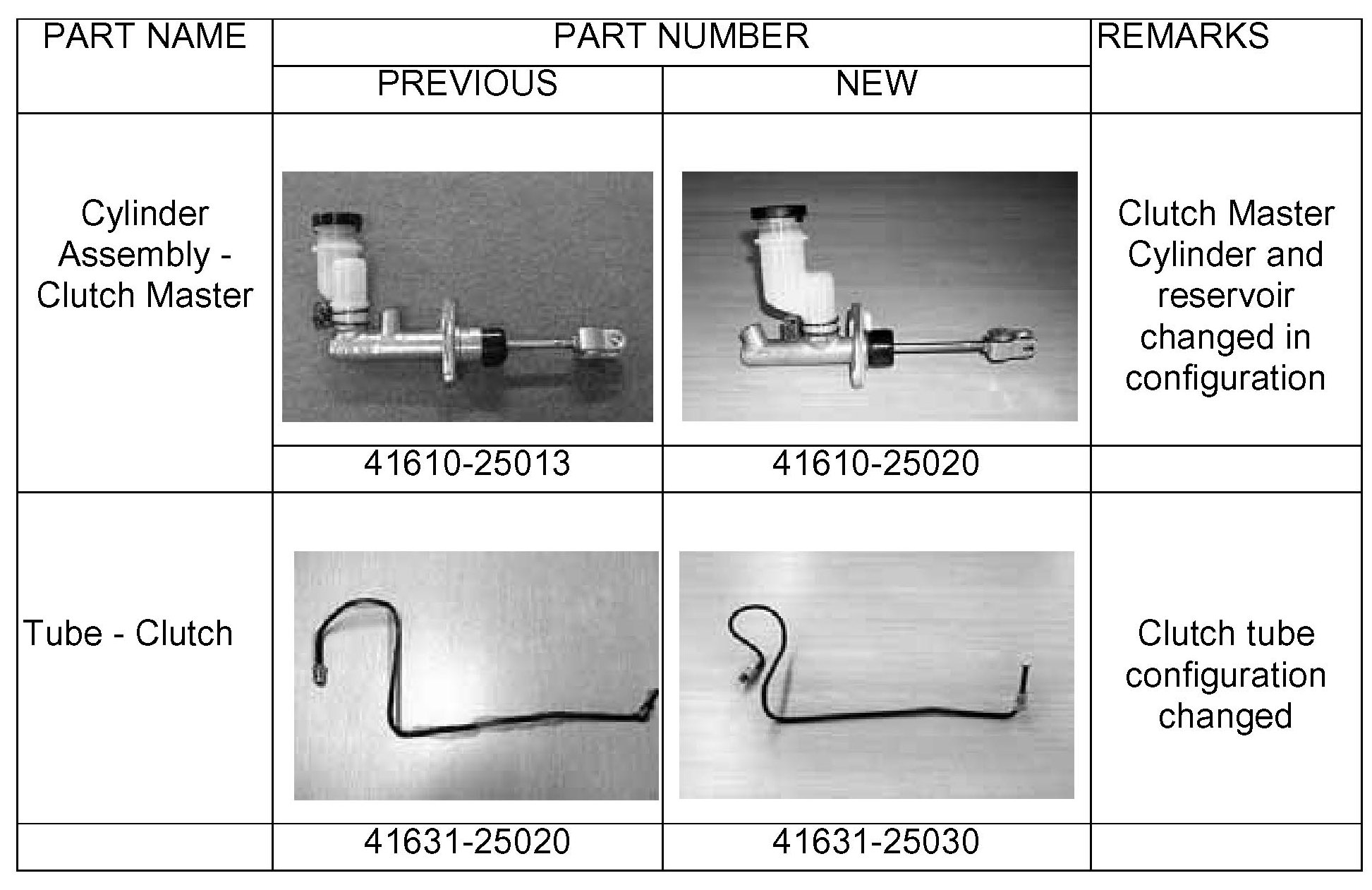

PARTS INFORMATION:

WARRANTY INFORMATION:

Normal warranty policies and procedures apply.

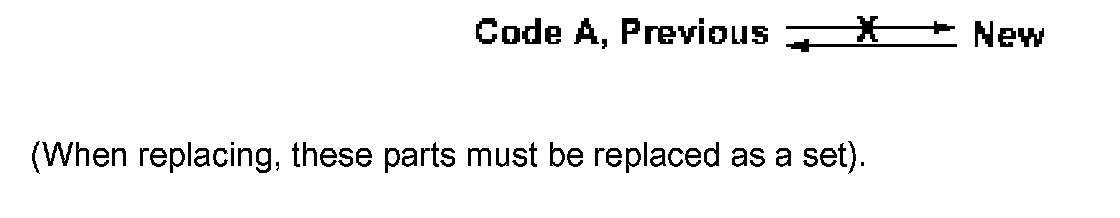

INTERCHANGABILITY:
