Removal and Installation
MANUAL TRANSAXLE SYSTEMREMOVAL

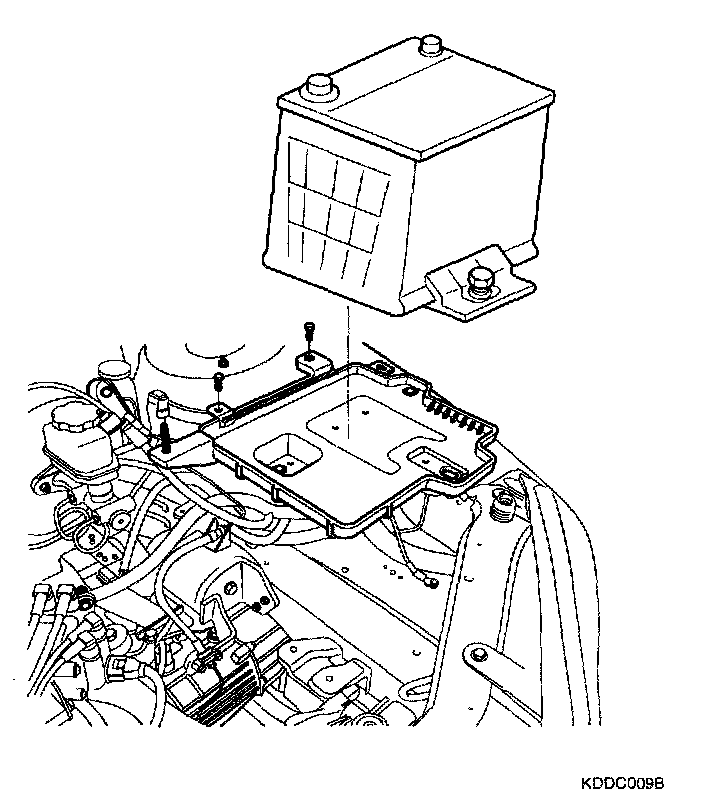

1. Remove the battery terminal and the battery.

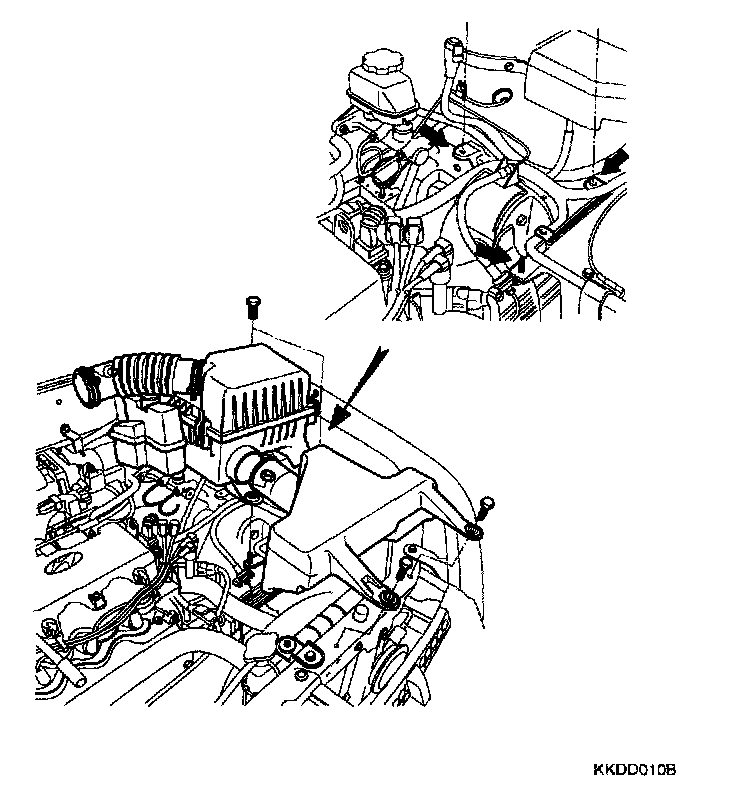

2. Removal the air cleaner.

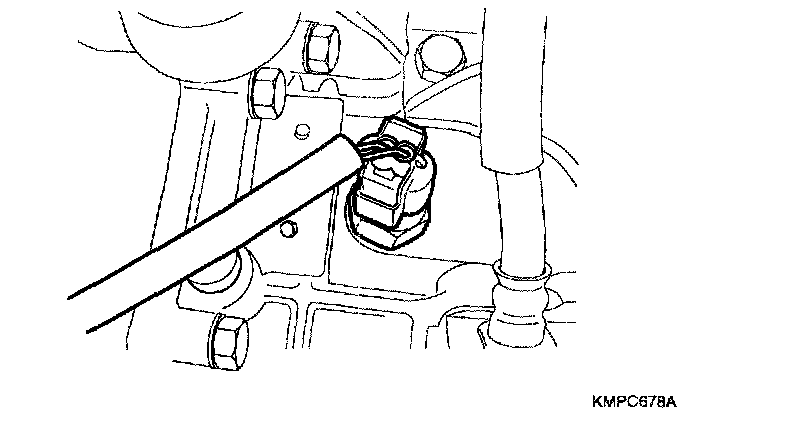

3. Remove the back-up lamp switch.

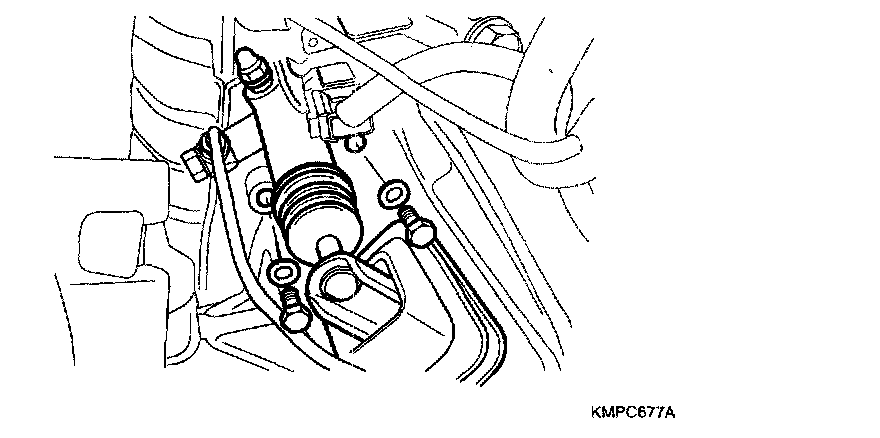

4. Remove the clutch release mounting bolts.

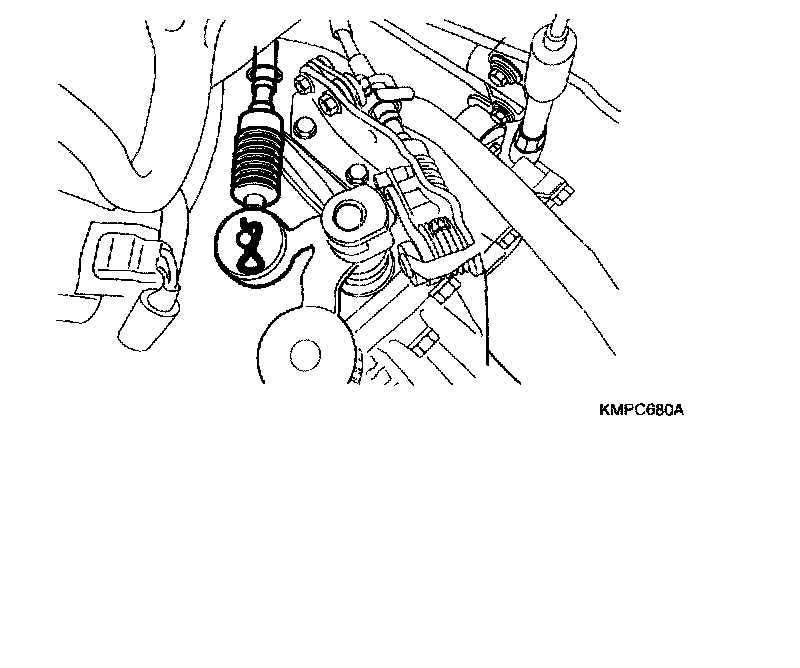

5. Remove the cotter pin of the shift cable.
6. Remove the cotter pin of the selector cable.

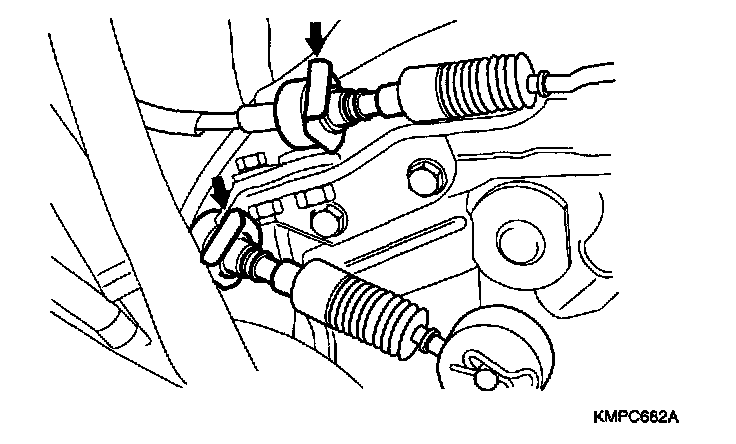

7. Remove the clip of the shift cable.
8. Remove the clip of the selector cable.
9. Remove the speedometer driven gear connector.

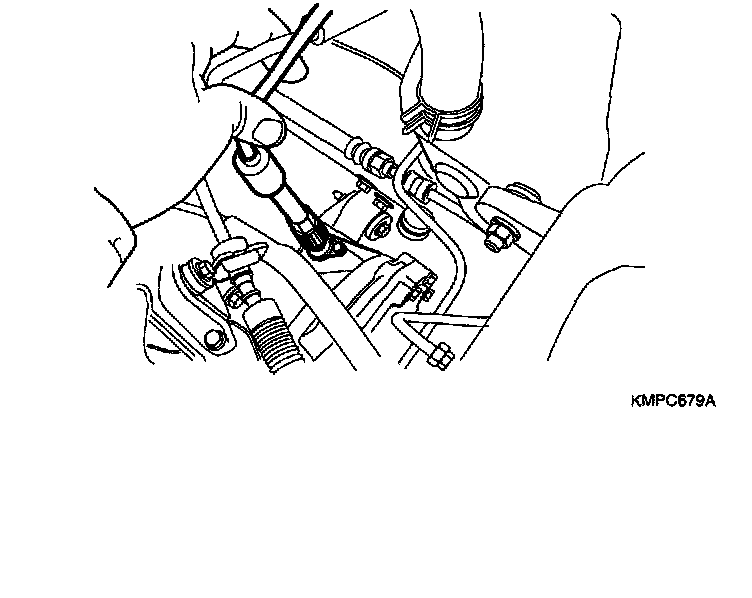

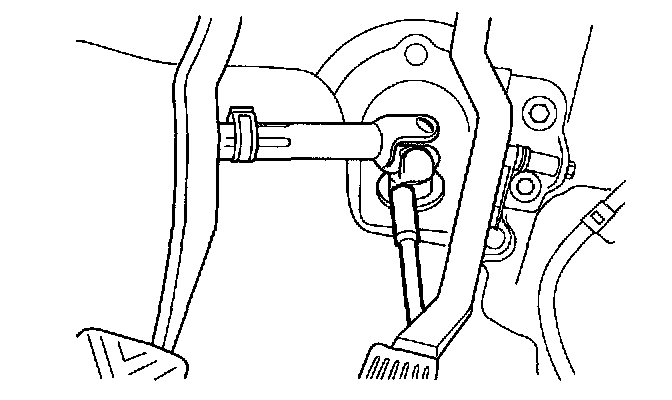

10. Remove the U-joint.
11. Remove the power steering return hose.
12. Remove the tire.

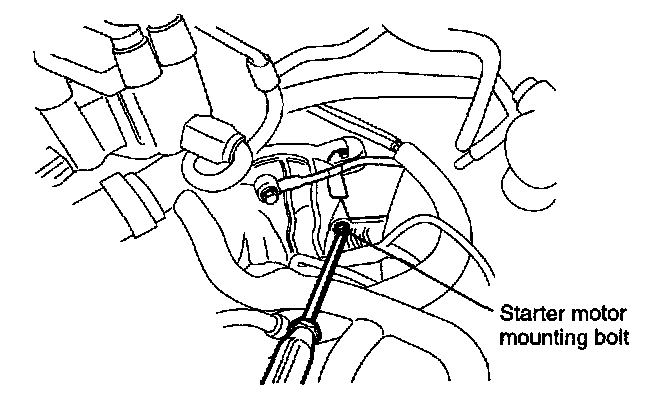

13. Remove the starter motor upward the transaxle.
14. Remove the bolt for the upper connection of the engine and the transaxle.

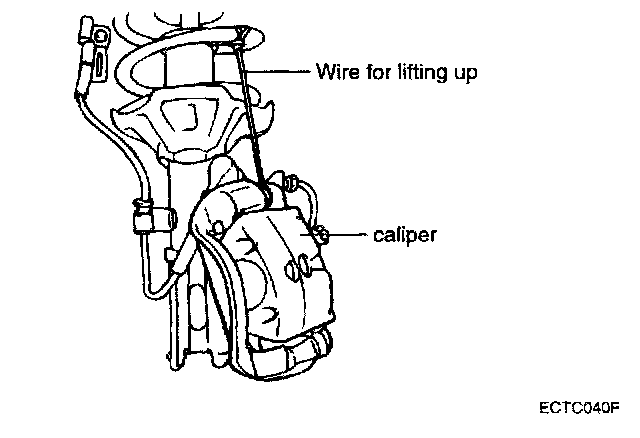

15. Remove the caliper after lifting up the vehicle.
16. Separate the tie rod end from the pin and nut.

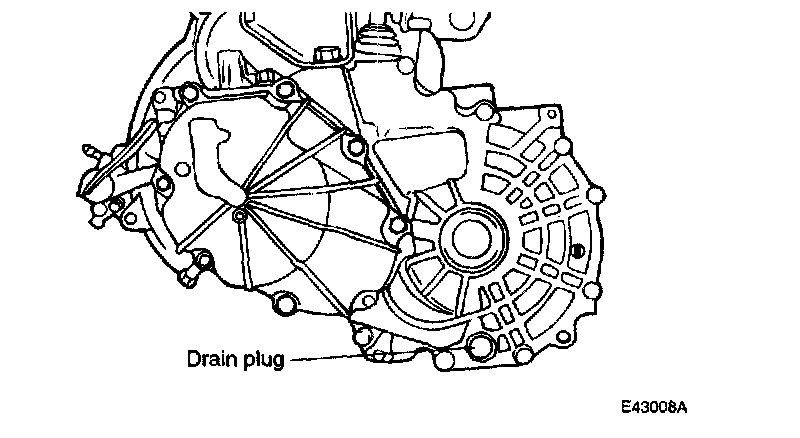

17. Remove the oil drain plug and drain the oil.
18. Remove the wheel speed sensor and the knuckle mounting bolt.

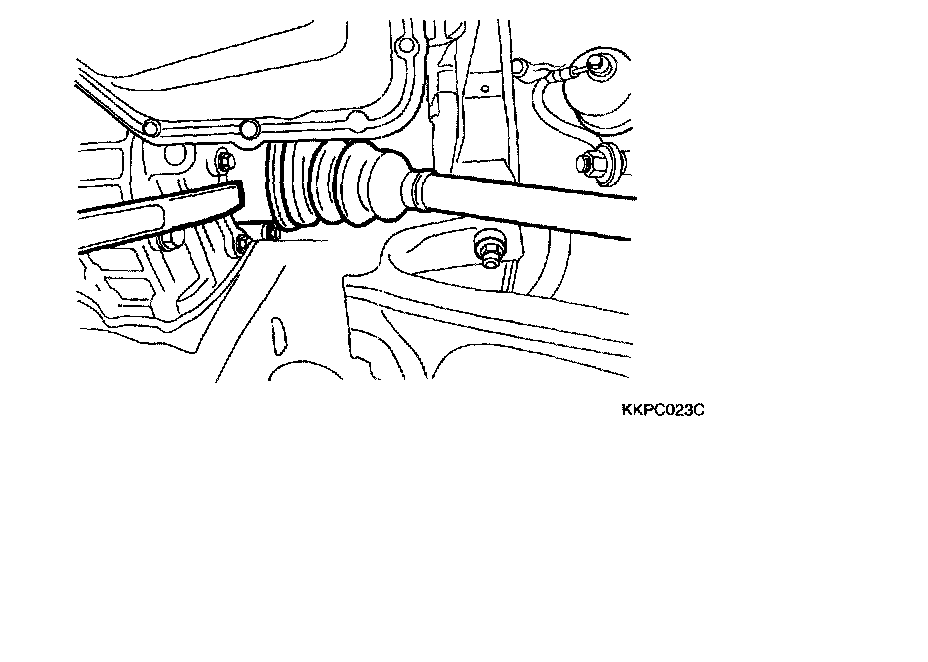

19. Remove the drive shaft and the hub nut.

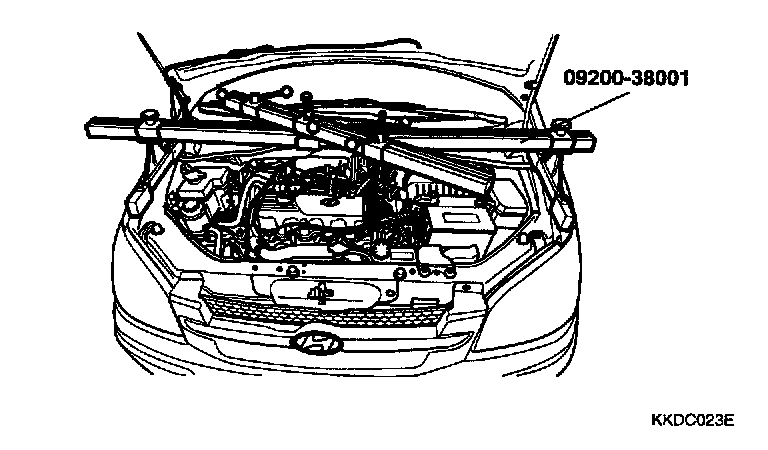

20. Install the special tool, the engine support fixture on the engine assembly.

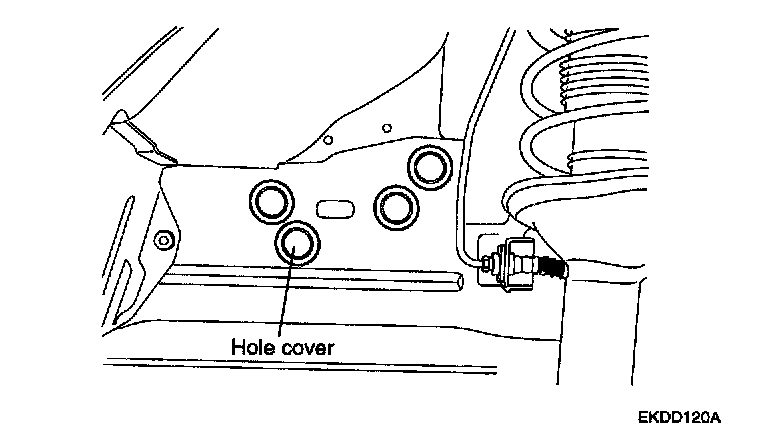

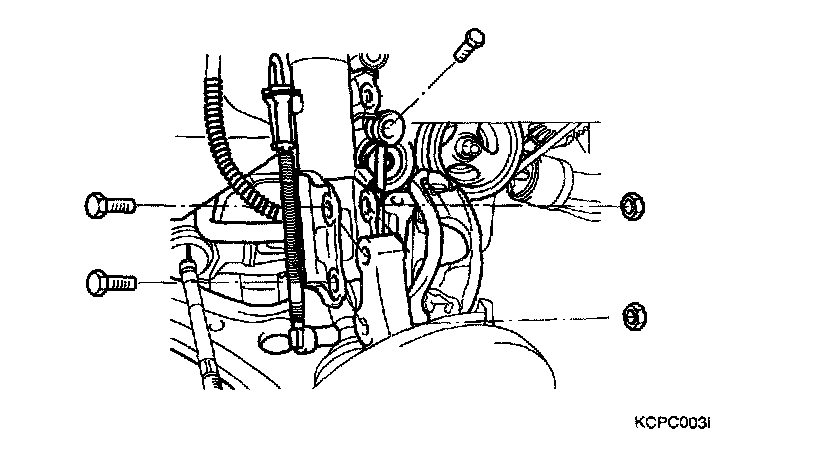

21. Remove the transaxle mounting bracket after removing the hole cover and the mounting bolts.

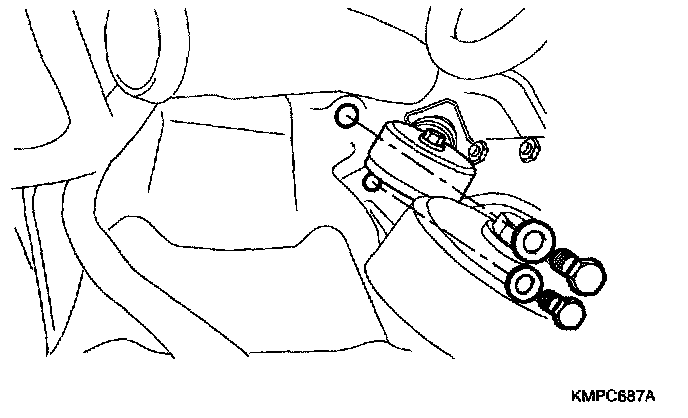

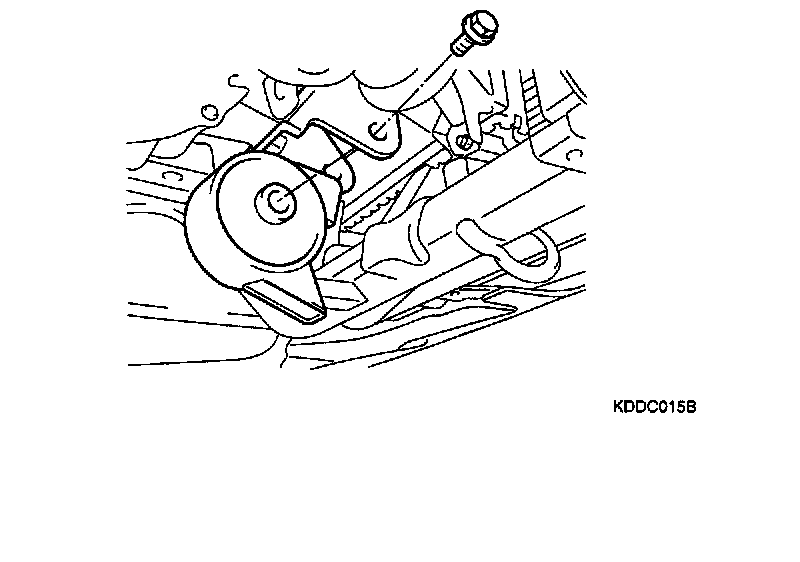

22. Remove the front roll stopper.

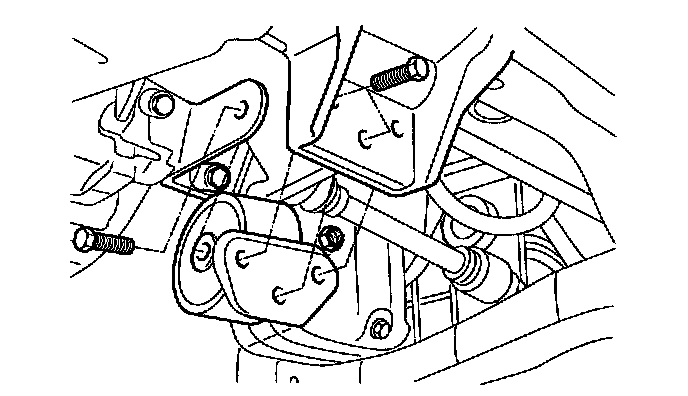

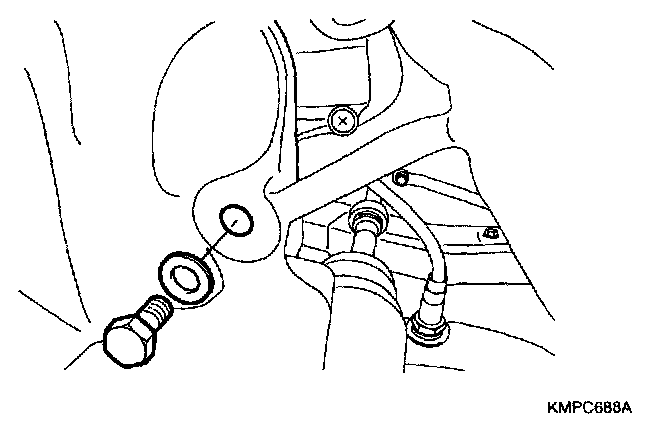

23. Remove the rear roll stopper.

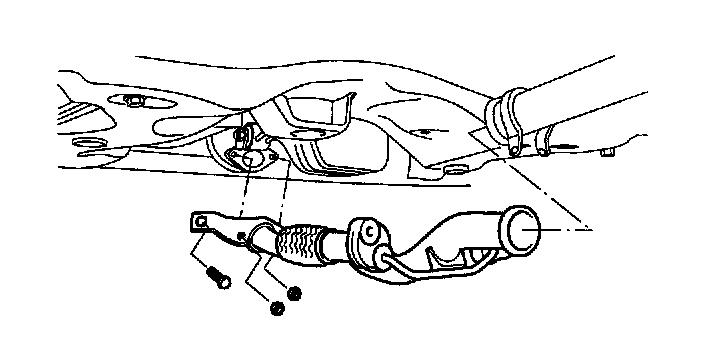

24. Remove the front muffler.

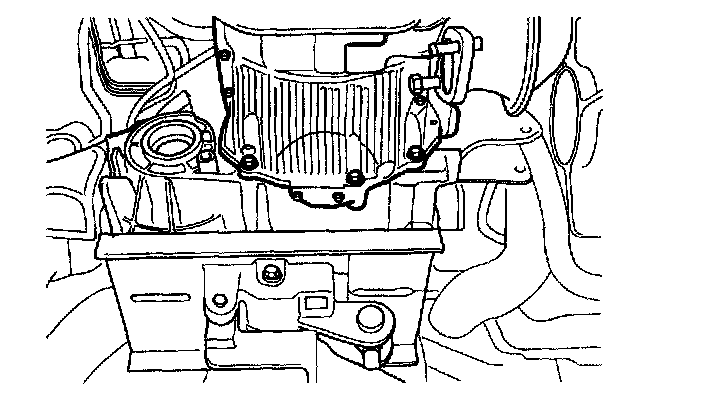

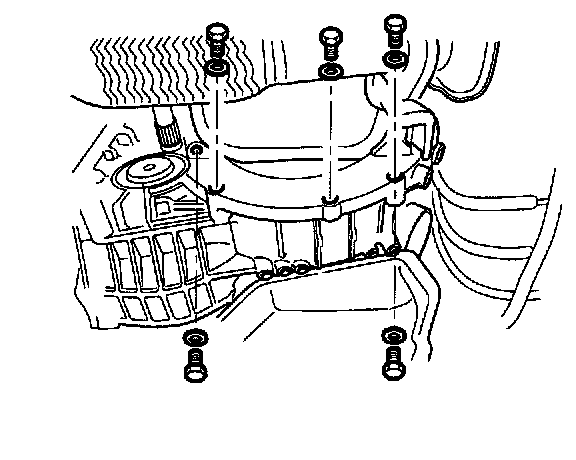

25. Remove the bell housing cover. (Bolt: 5EA)

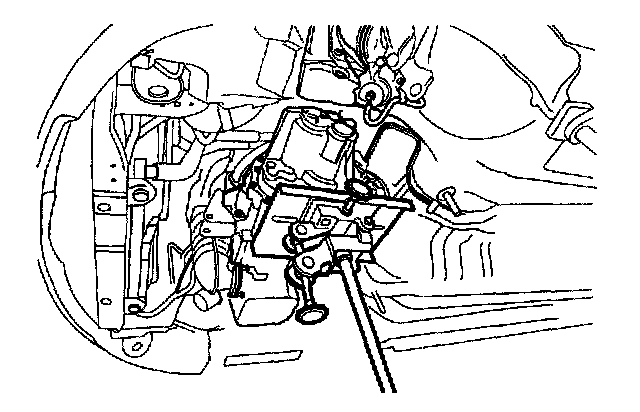

26. Install the jack for supporting transaxle.
27. Remove the sub frame.
28. Remove the lower mounting bolts of the transaxle.
29. Remove the transaxle.
INSTALLATION
Installation is the reverse of removal.
