Fluid - M/T: Testing and Inspection

MANUAL TRANSAXLE (INSPECT OIL LEVEL)
Inspect for leakage in each component and check the oil level by removing the tiller plug. If the oil is contaminated, replace it with new oil.

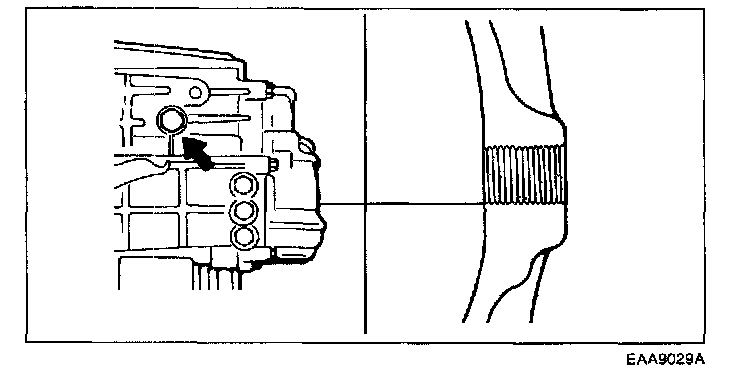

1. With the vehicle parked on a level surface, remove the filler plug and make sure that the oil level is the same level as the plug hole.
2. Check that the transaxle oil is not dirty.
