Replacement of Transaxle Gear Oil

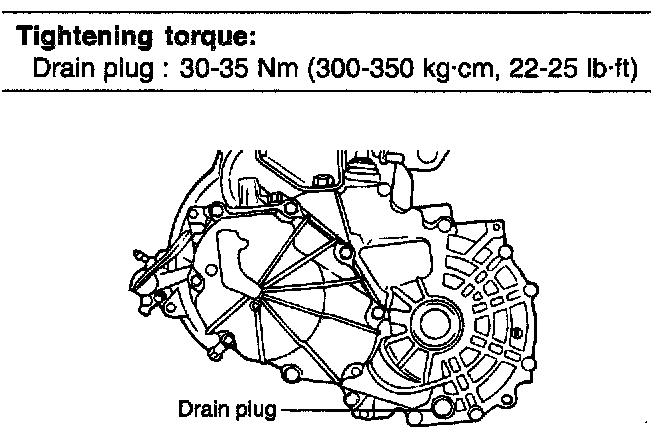

REPLACEMENT OF TRANSAXLE GEAR OIL1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.
2. Replace the gasket with a new one and install the drain plug.
Tightening torque:
Drain plug: 30 - 35 Nm (300 - 350 kg.cm, 22 - 25 ft. lbs.)

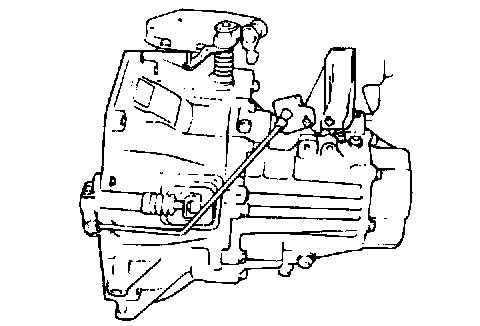

3. Add new oil the through the filler plug, filling to a level 5 - 9 mm (0.2 - 0.4 inch) below the plug opening.
Transaxle oil total capacity: 2.15 liters (2.27 u.s. quarts, 1.89 lmp. quarts)
Tightening torque:
Filler plug: 30 - 35 Nm (300 - 350 kg.cm, 22 - 25 ft. lbs.)
