Drive Axles, Bearings and Joints: Specifications

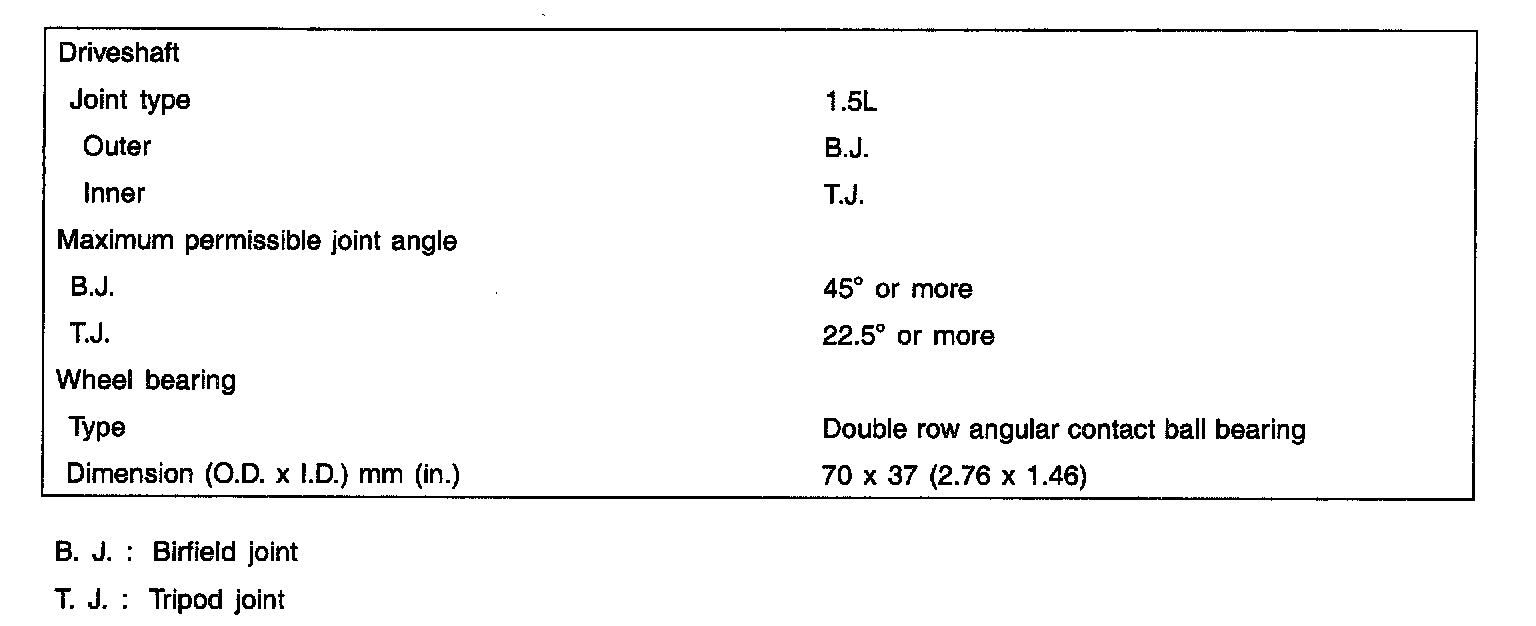

SPECIFICATIONS





Joint Type 1.5L
Outer B.J.
Inner T.J.
Maximum Permissible Joint Angle
B.J. 45° or more
T.J. 22.5° or more
Wheel Bearing
Type Double Row Angular Contact Ball Bearing
Dimension (O.D. x I.D.) 70 x 37 mm (2.76 x 1.46 inch)

B. J. Birfield joint
T. J. Tripod joint

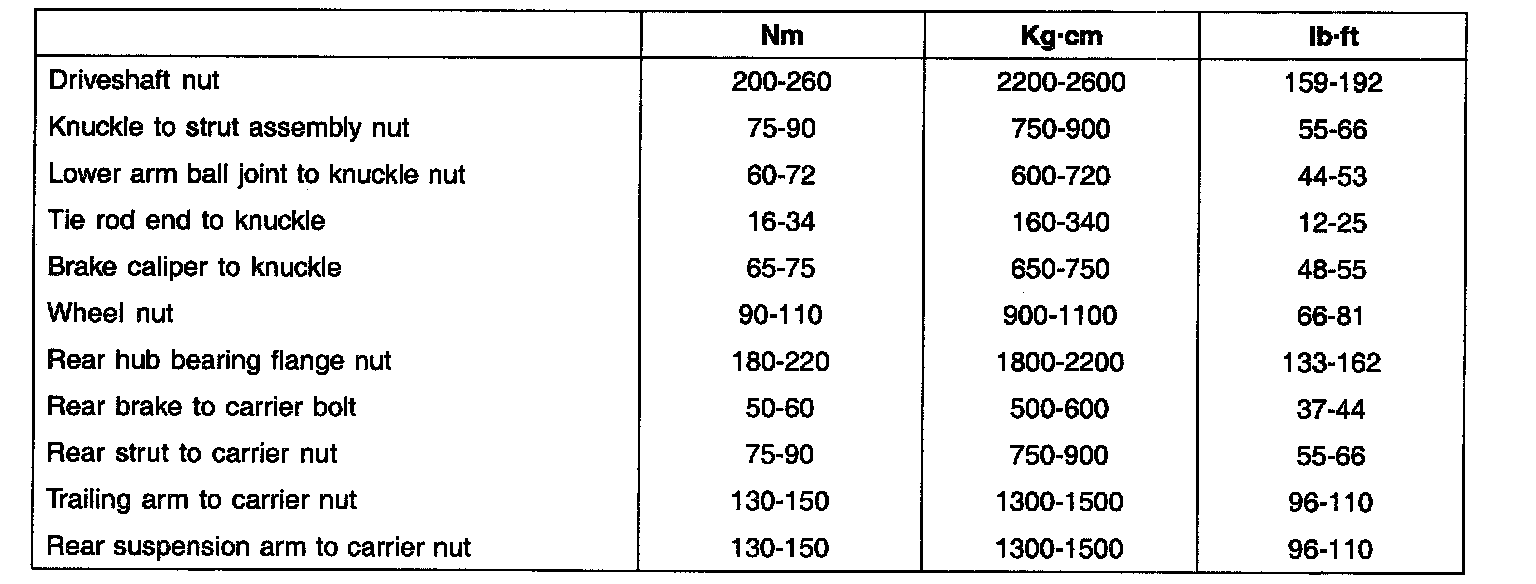

TIGHTENING TORQUE





Driveshaft Nut 200 - 260 Nm (159 - 192 ft. lbs.)
Knuckle To Strut Assembly Nut 75 - 90 Nm (55 - 66 ft. lbs.)
Lower Arm Ball Joint To Knuckle Nut 60 - 72 Nm (44 - 53 ft. lbs.)
Tie Rod End To Knuckle 16 - 34 Nm (12 - 25 ft. lbs.)
Brake Caliper To Knuckle 65 - 75 Nm (48 - 55 ft. lbs.)
Wheel Nut 90 - 110 Nm (66 - 81 ft. lbs.)
Rear Hub Bearing Flange Nut 180 - 220 Nm (133 - 162 ft. lbs.)
Rear Brake To Carrier Bolt 50 - 60 Nm (37 - 44 ft. lbs.)
Rear Strut To Carrier Nut 75 - 90 Nm (55 - 66 ft. lbs.)
Trailing Arm To Carrier Nut 130 - 150 Nm (96 - 110 ft. lbs.)
Rear Suspension Arm To Carrier Nut 130 - 150 Nm (96 - 110 ft. lbs.)

CAUTION: Replace self-locking nuts with new ones after removal.

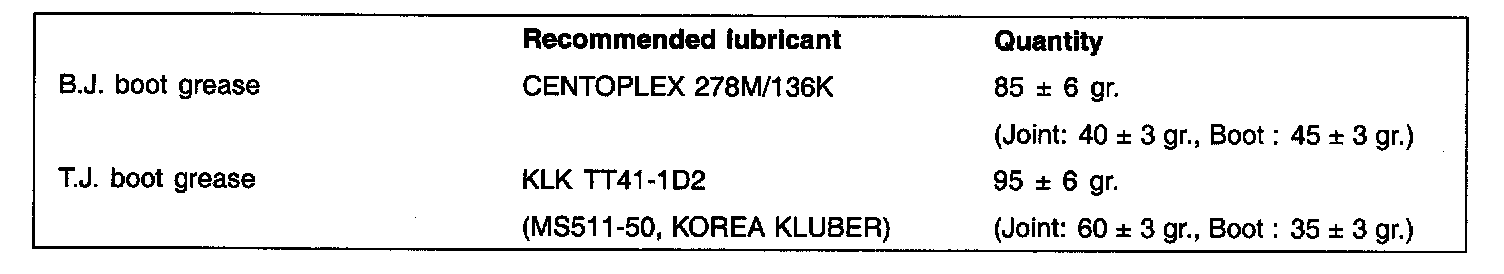

LUBRICANTS
