Inspection of Electronic Control System Components

INSPECTION OF ELECTRONIC CONTROL SYSTEM COMPONENTS

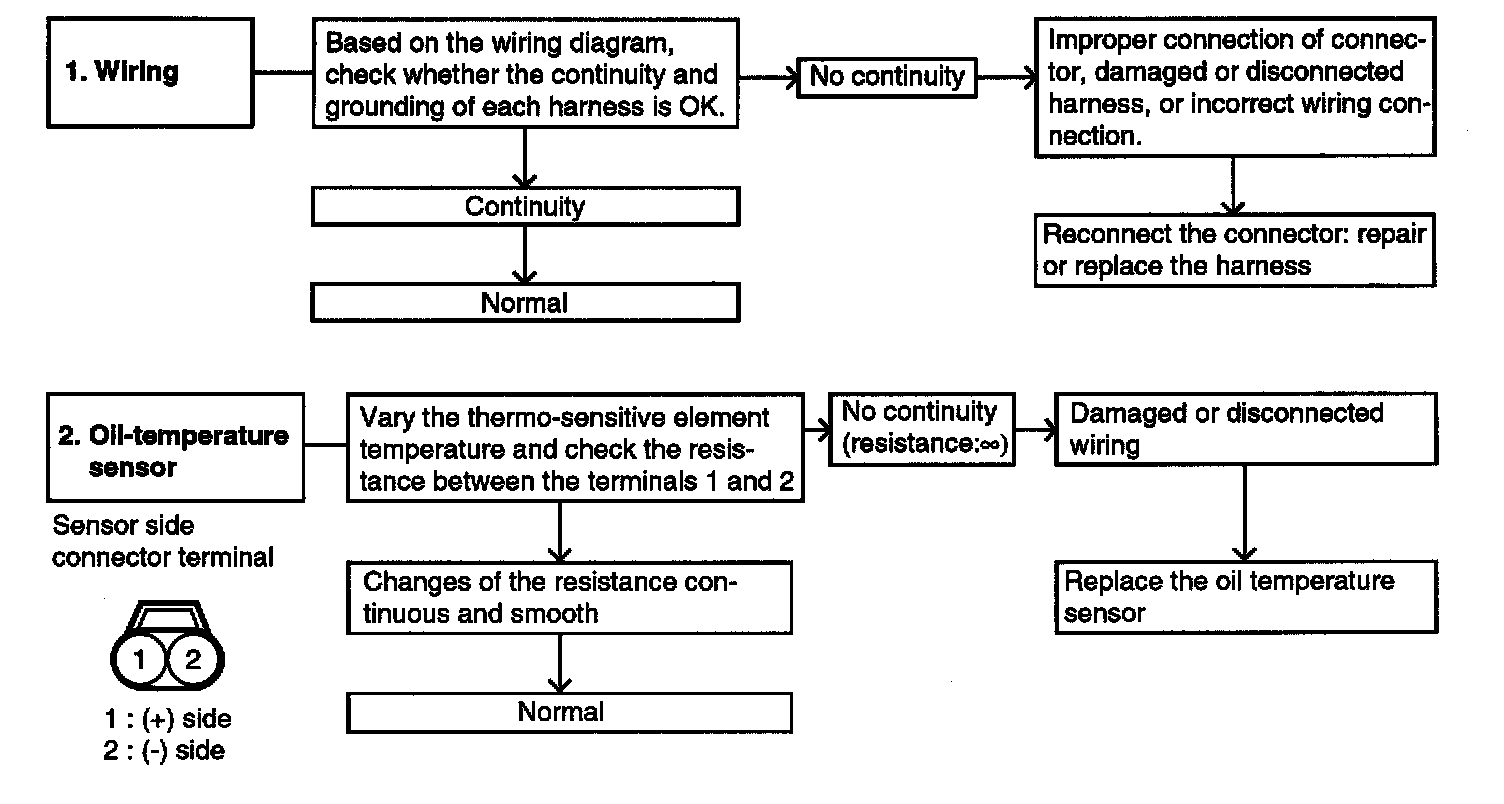

1 of 7





2 of 7





3 of 7

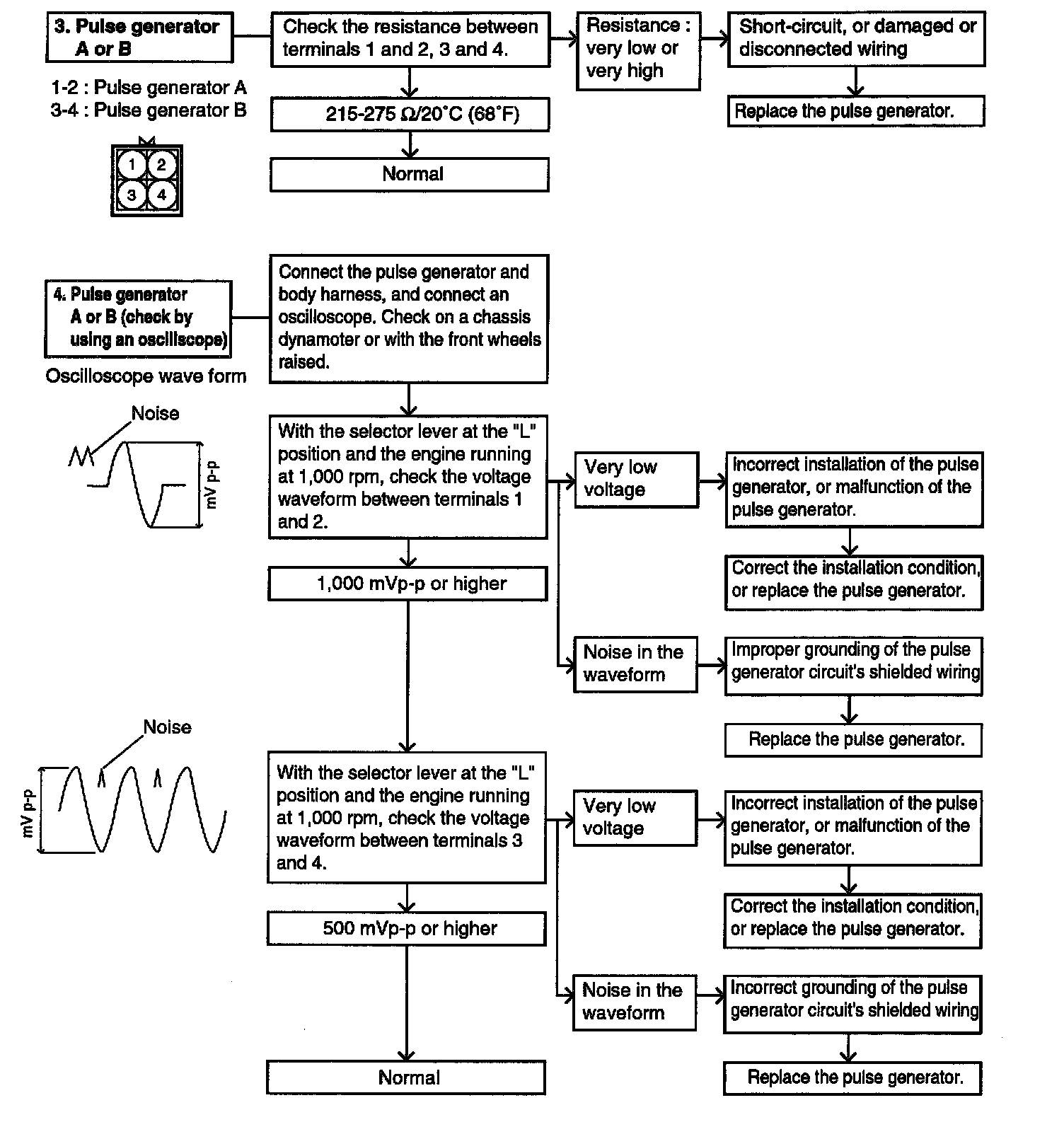

4 of 7

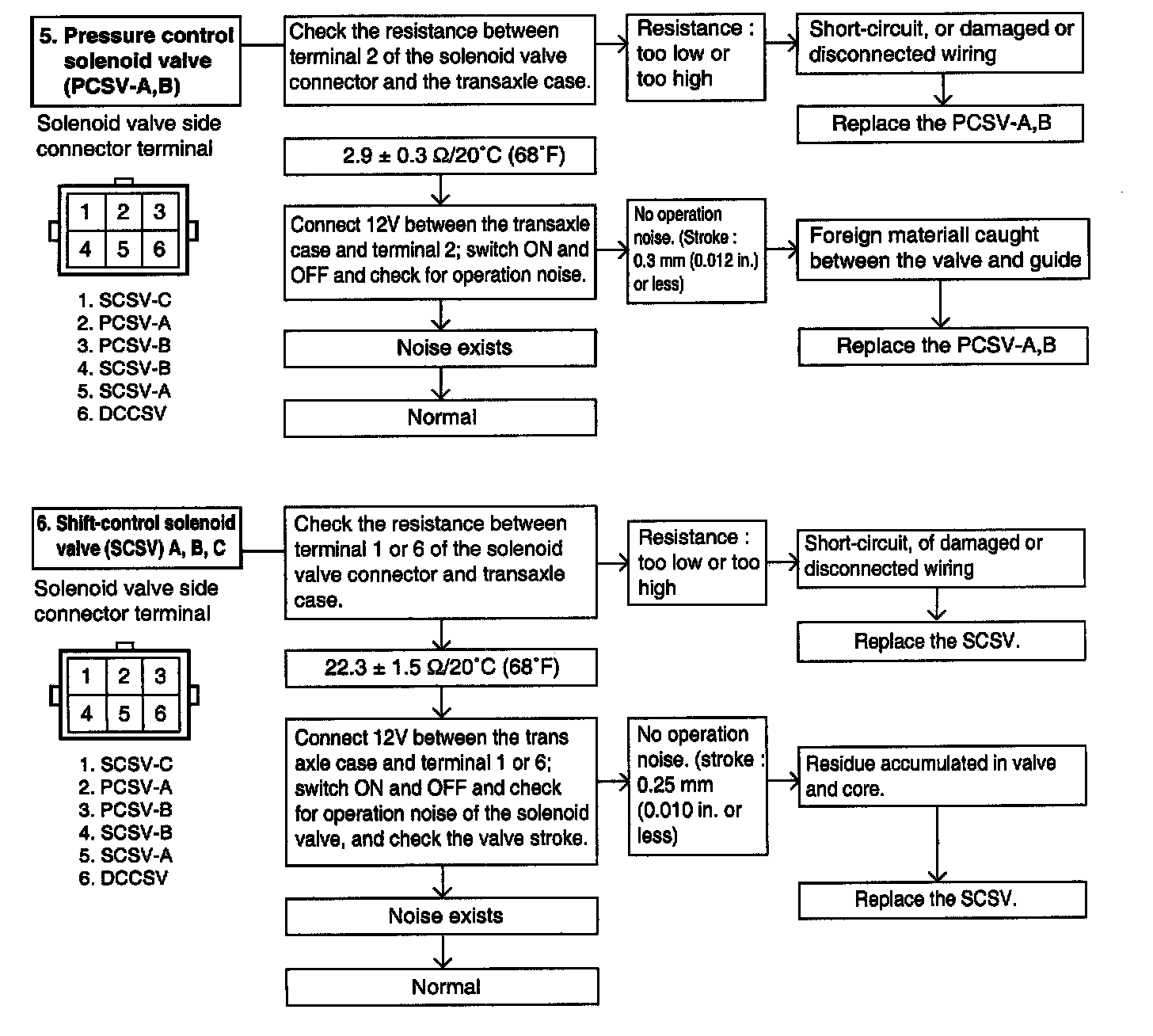

5 of 7

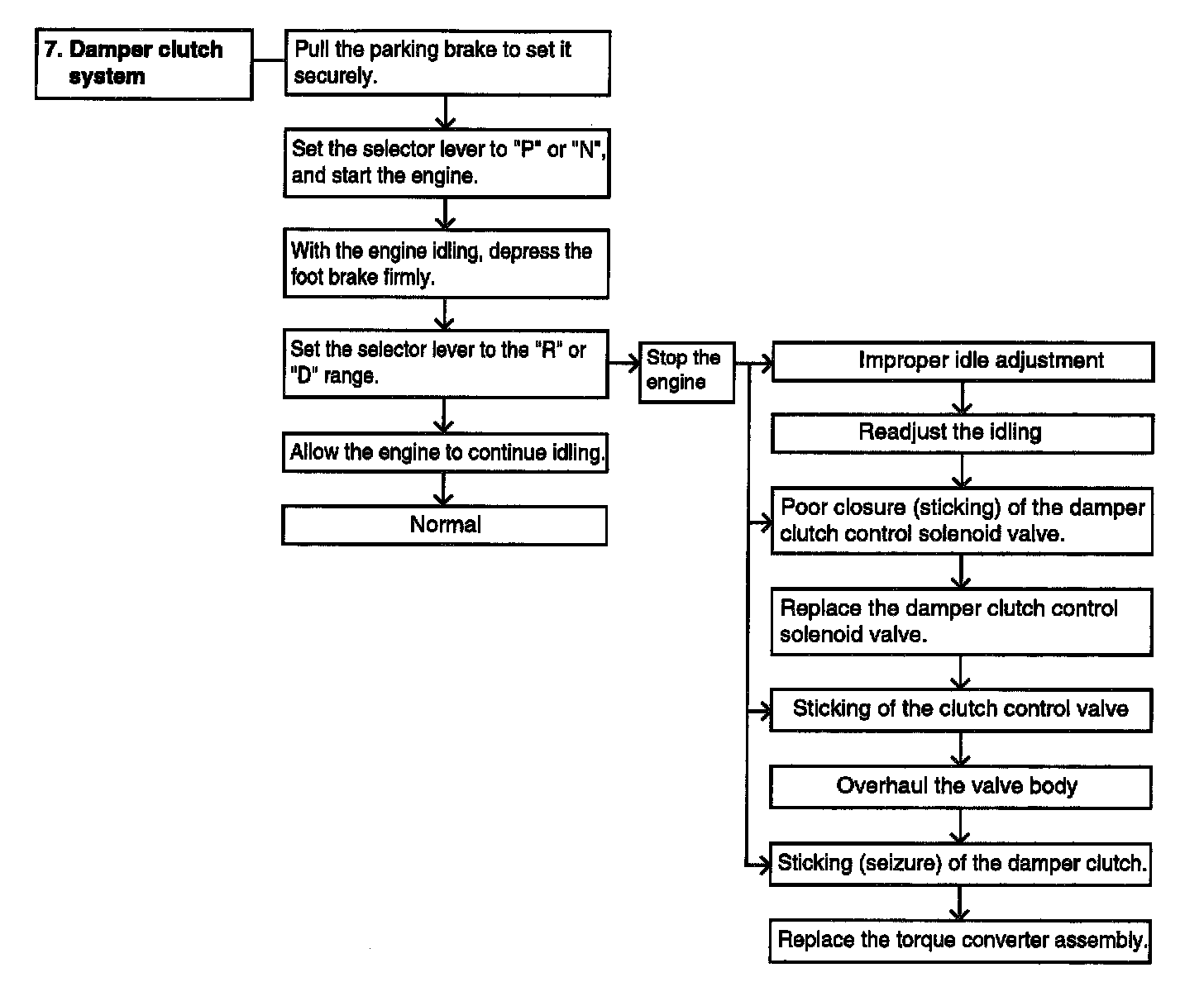

6 of 7

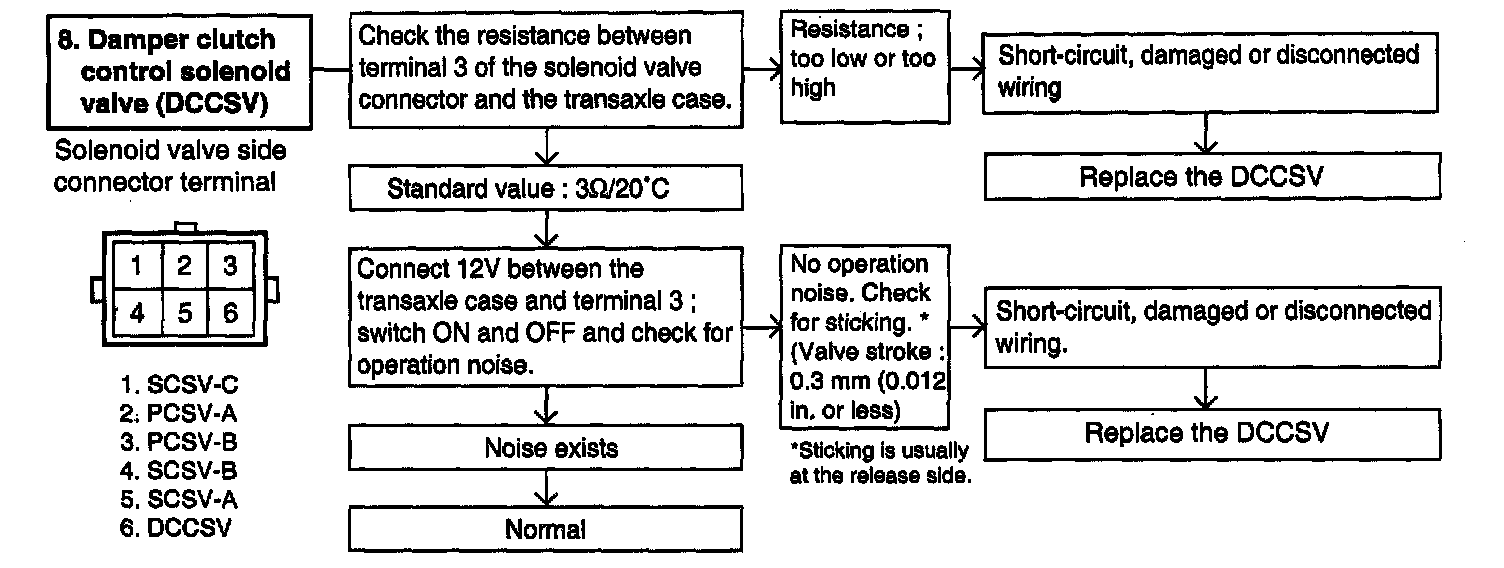

7 of 7
