Shifter A/T: Service and Repair

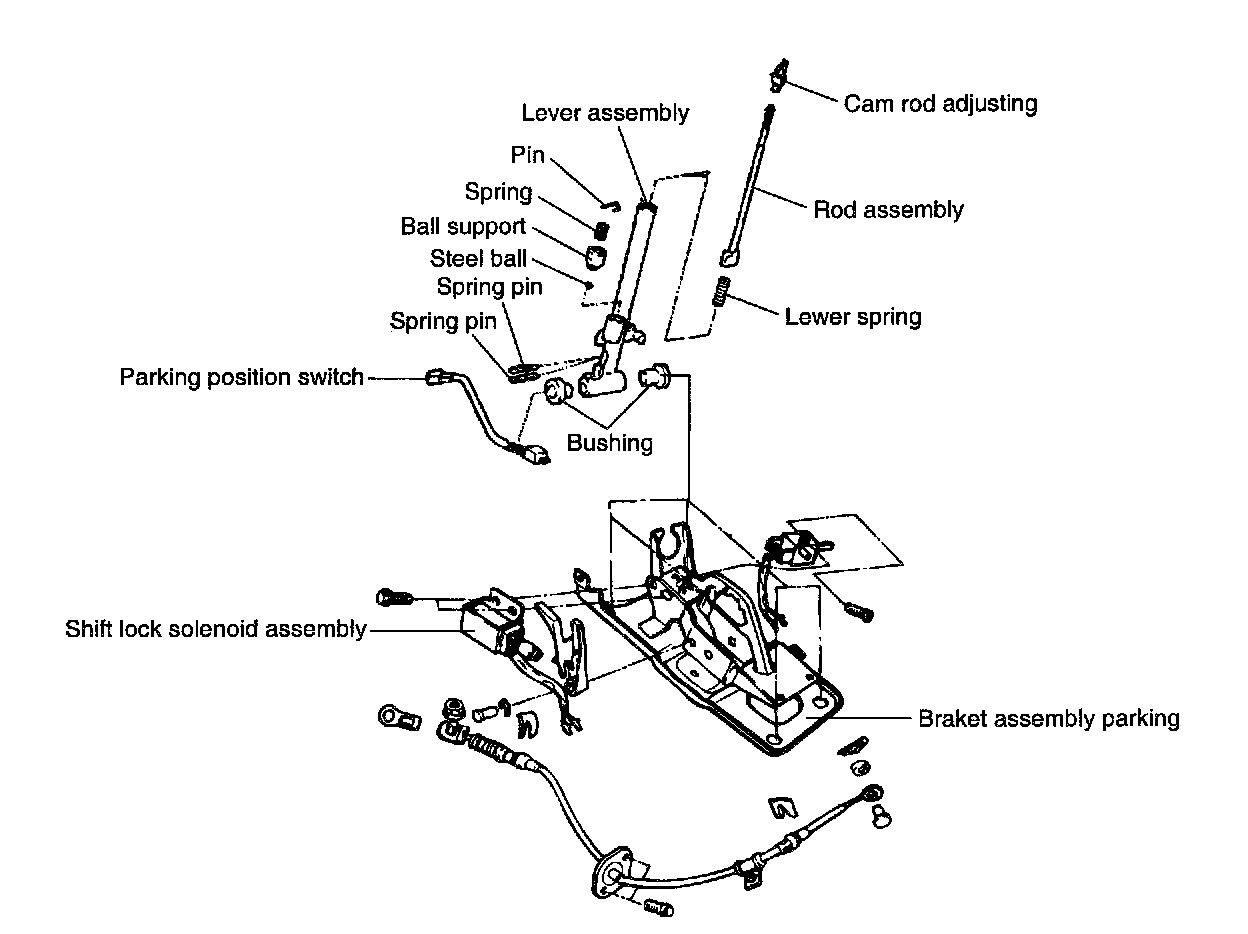

SHIFT LEVER






INSPECTION
^ Check the detent place for wear.
^ Check the bushing for wear or damage.
^ Check the spring for damage or deterioration.
^ Check the pin at the end of the rod assembly for wear.

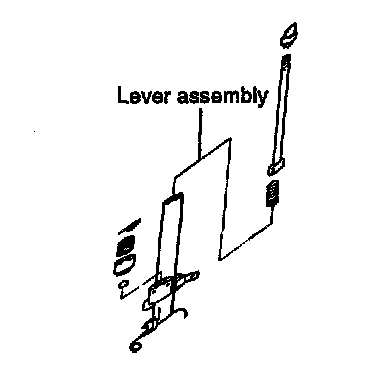

ASSEMBLY





1. Apply a coating of grease to the sliding part of the bushing.
Specified grease: Chassis grease SAE J310, NLGI No.2

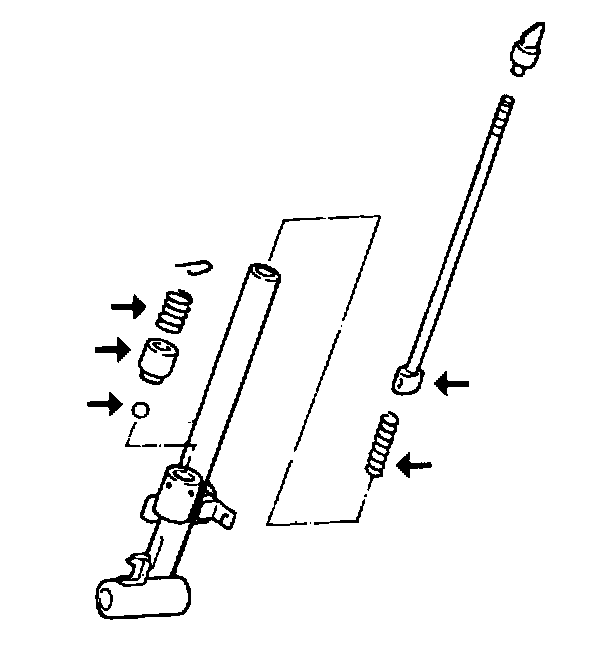

2. Apply the specified grease at the places shown in the figure.
Specified grease Multipurpose grease SAE J310, NLGI No.2
