Fluid Diagrams

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

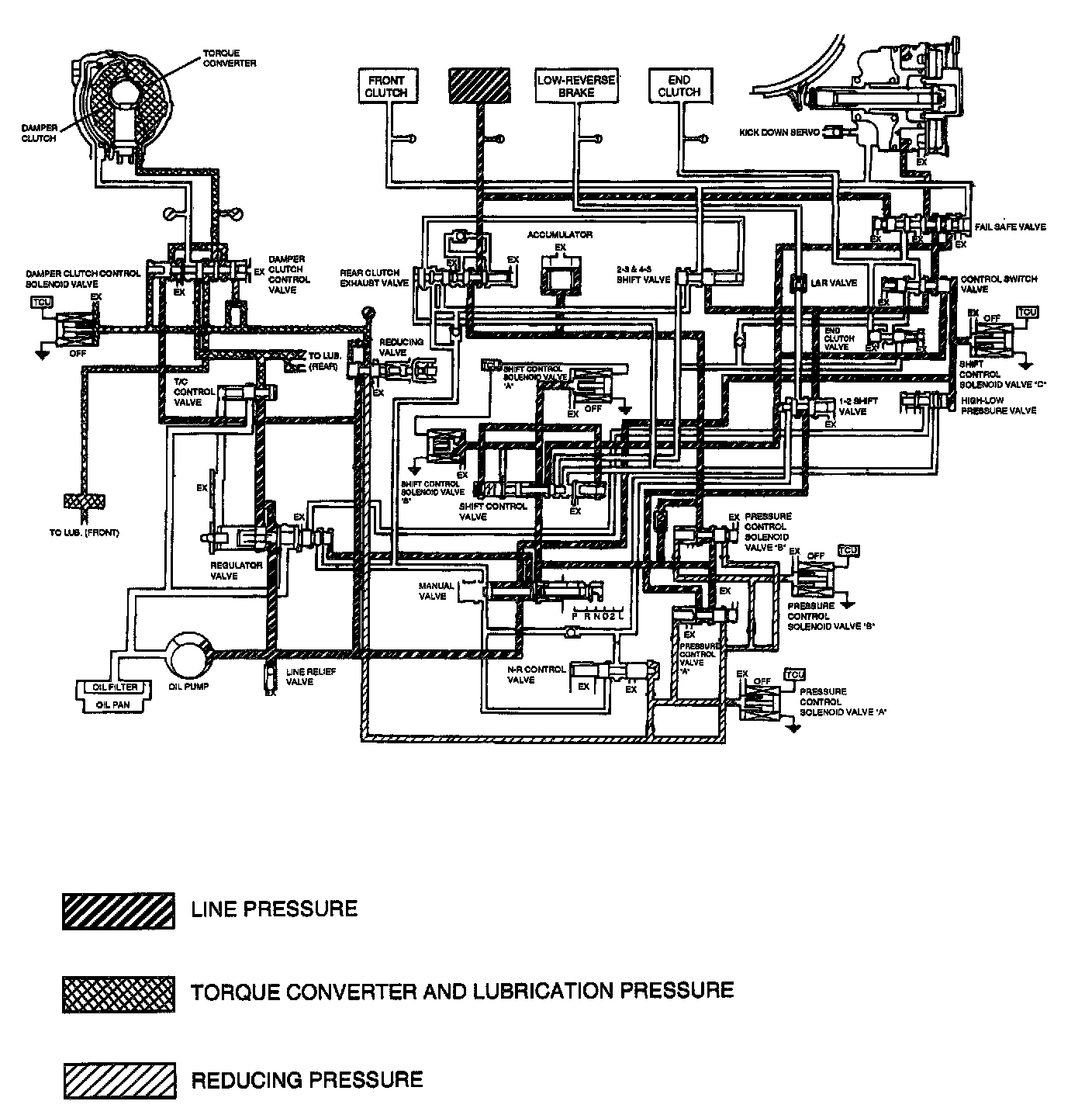

NEUTRAL & PARKING

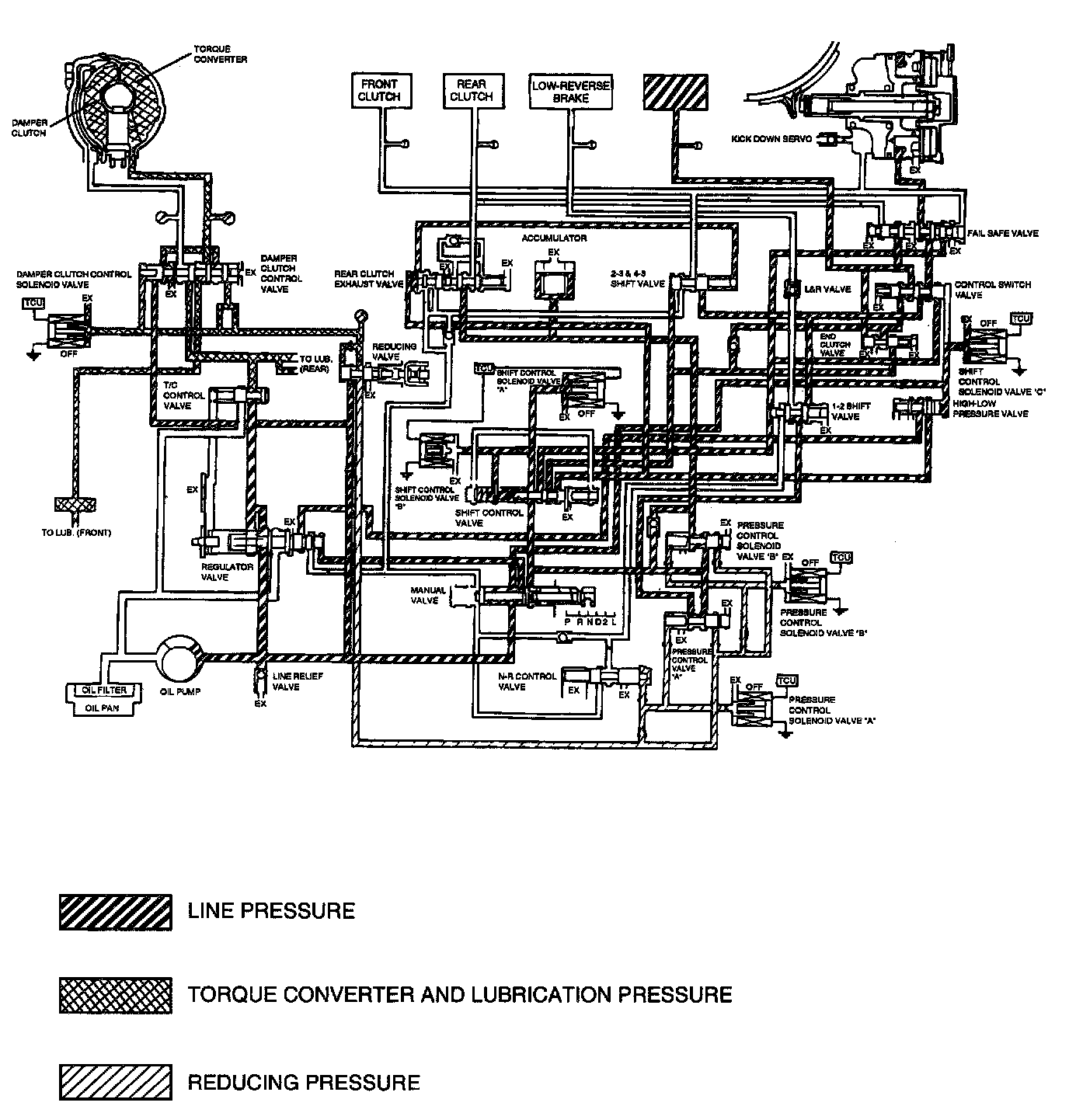

DRIVE (FIRST)

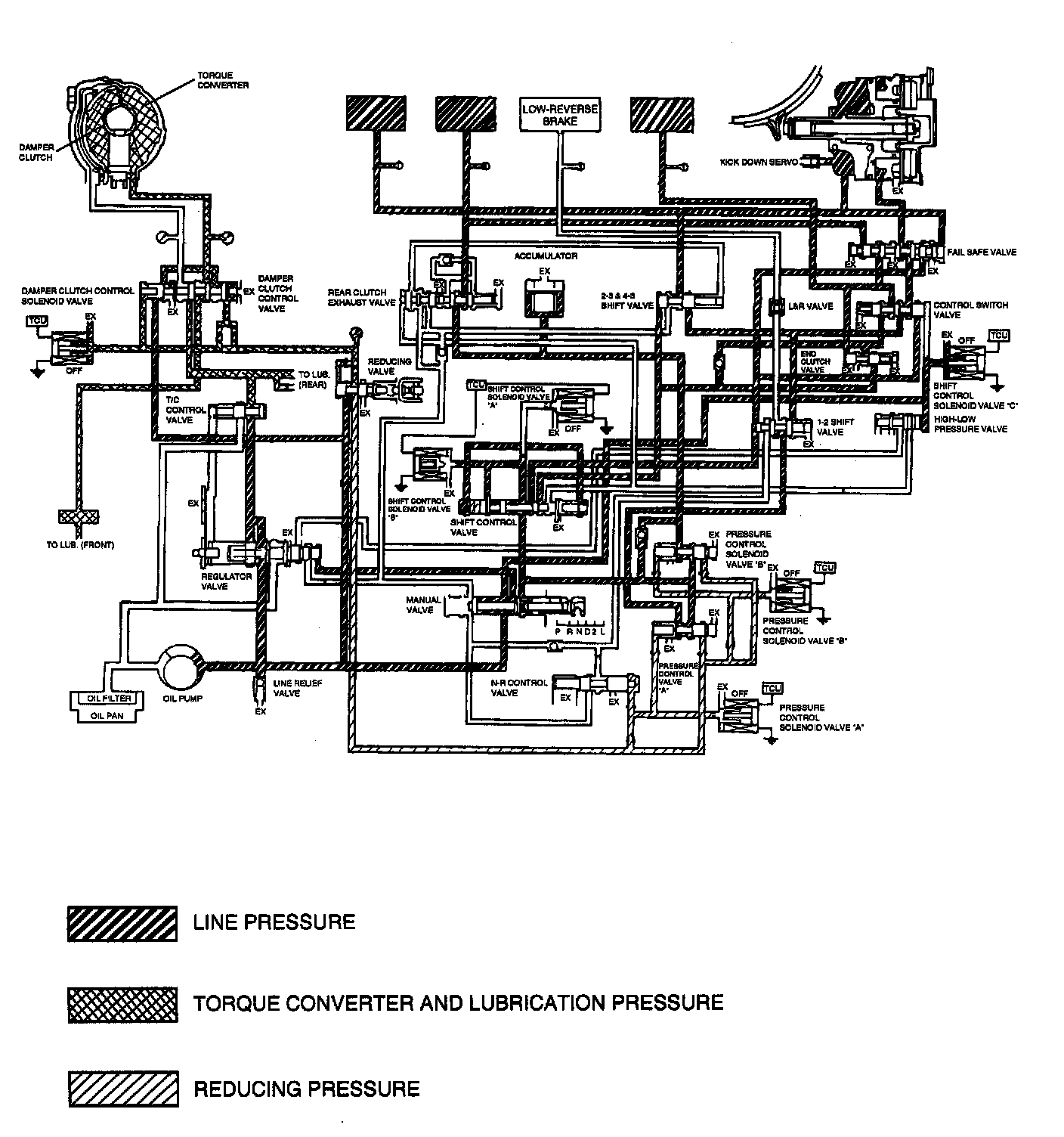

DRIVE (SECOND)

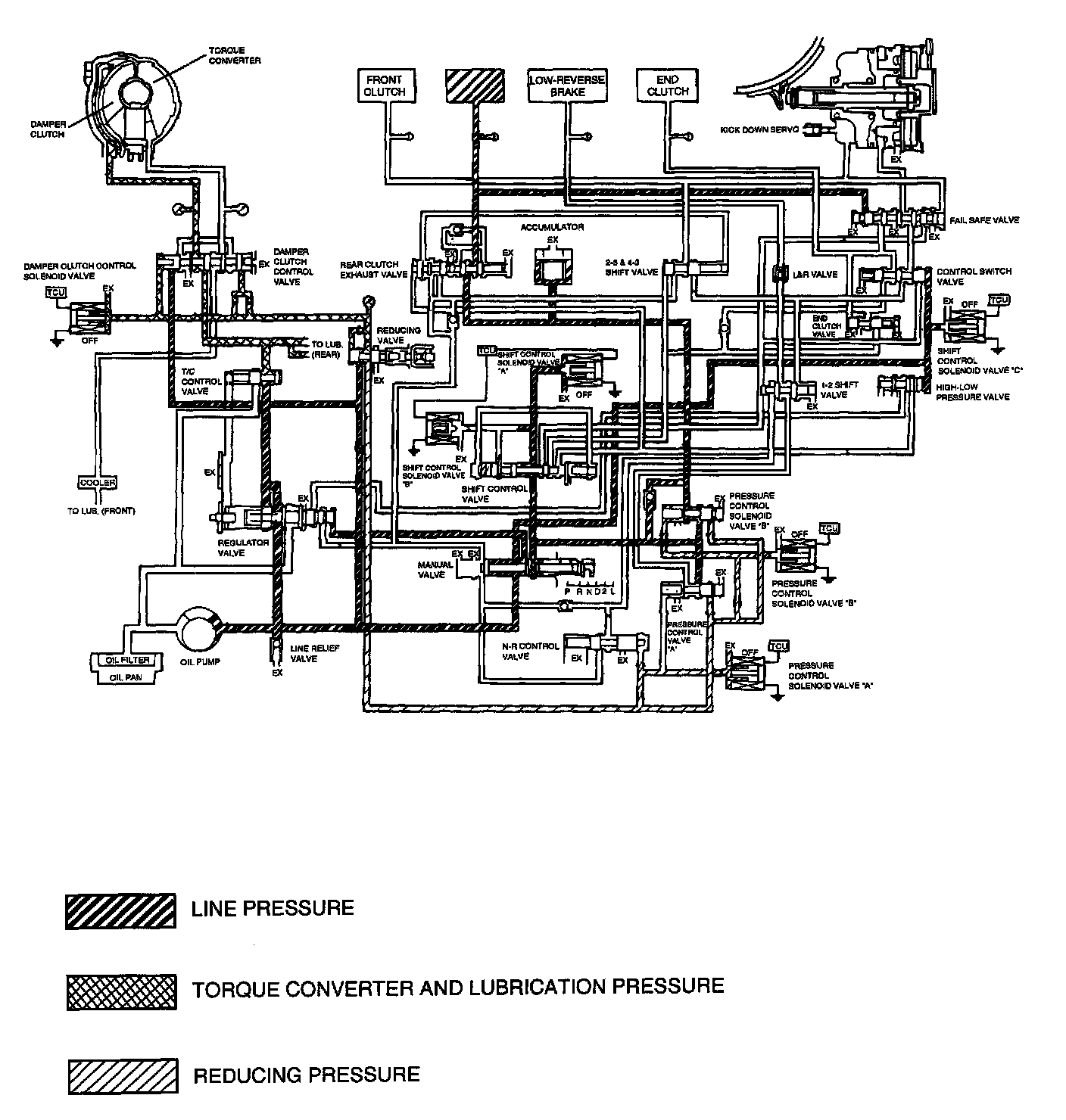

DRIVE (THIRD)

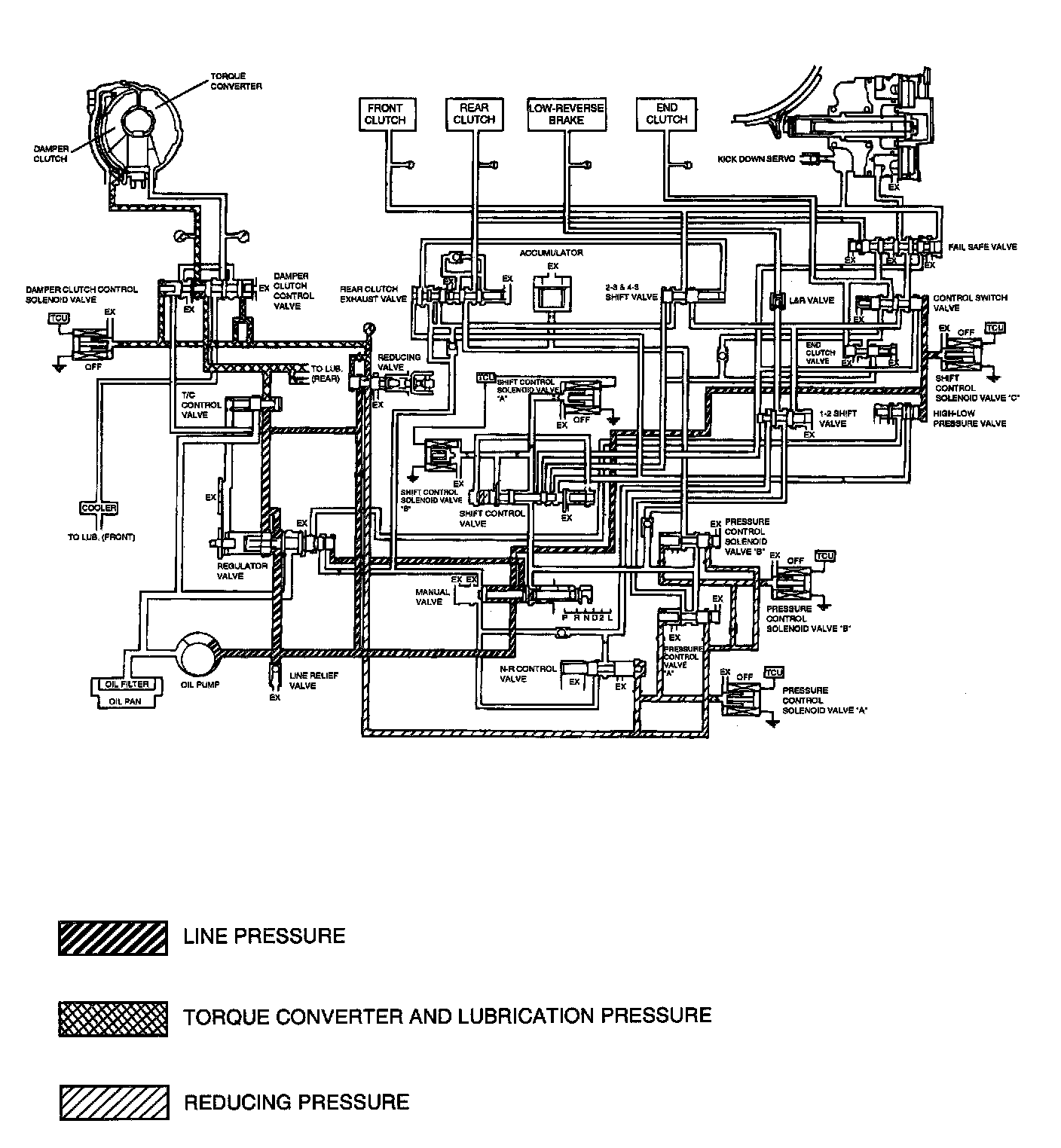

DRIVE (FOURTH)





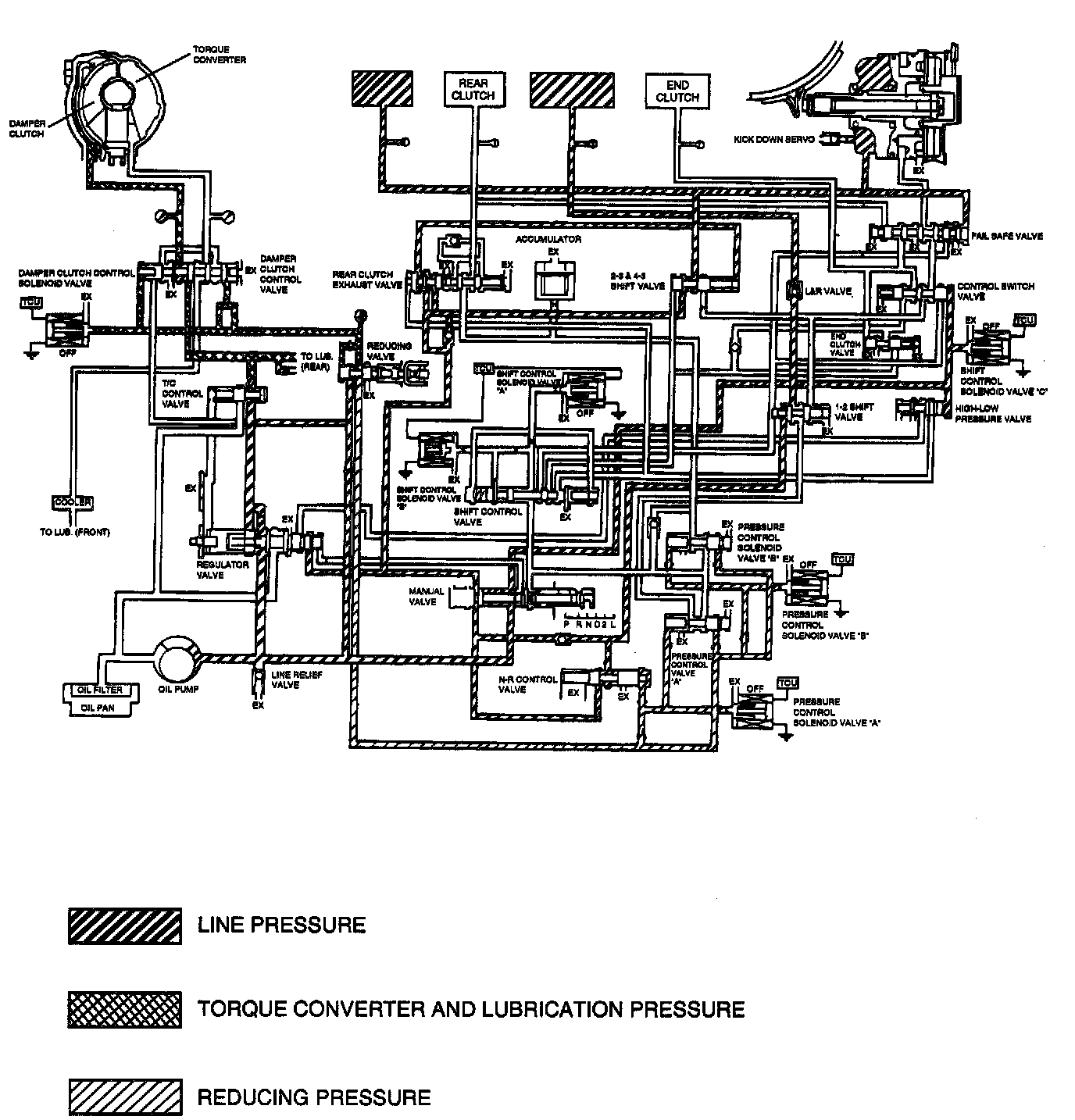

LOCK





REVERSE
