Trailing Arm Bushing: Service and Repair

TRAILING ARM BUSH REPLACEMENT

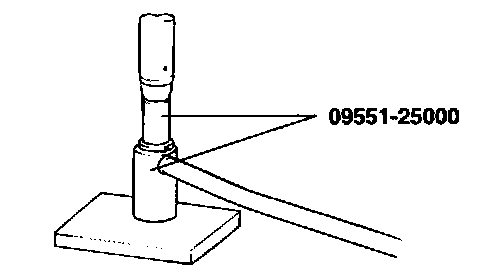

1. Install the Special Tool (09551-25000) on the trailing arm.
2. Press out the bushing.
3. Apply soap solution to the new bushing and trailing arm bushing mount.

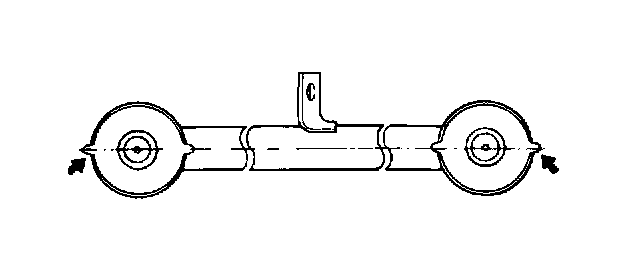

4. Position the projection of the bushing in a line as shown in the illustration.
5. Using the Special Tool (09551-25000), press-fit the bushing.
