Removal

REMOVAL
1. Remove the front wheel.

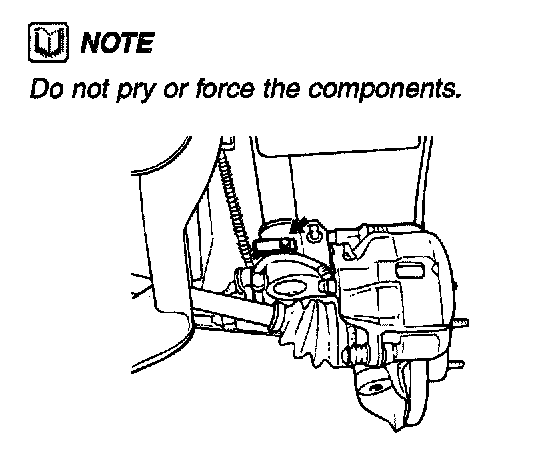

2. Detach the brake hose bracket from the strut assembly.

NOTE: Do not pry or force the components.

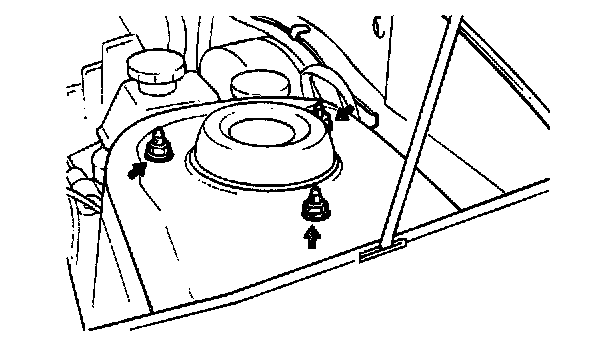

3. Remove the strut upper mounting bolts(3).





4. Remove the strut assembly
5. Installation is the reverse of removal.
