Control Arm Bushing: Service and Repair

REAR SUSPENSION ARM (A,B) BUSH REPLACEMENT

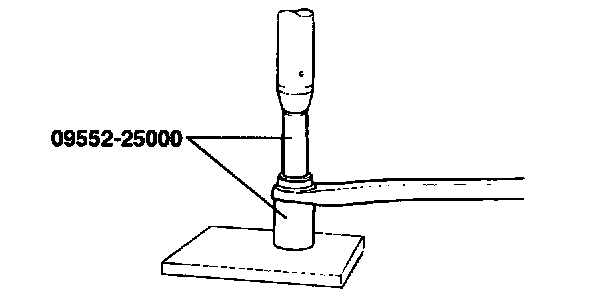

1. Install the Special Tool (09552-25000) on the suspension arm.
2. Press out the bushing.
3. Apply soap solution to the new bushing and suspension arm.
4. Using the Special Tool (09552-25000), press-fit the bushing.
