Checking Steering Wheel Free Play

CHECKING STEERING WHEEL FREE PLAY
1. Start the engine and with the steering wheel in the straight ahead position, apply a force of 5 N (1.1 lbs.) while turning the steering wheel.

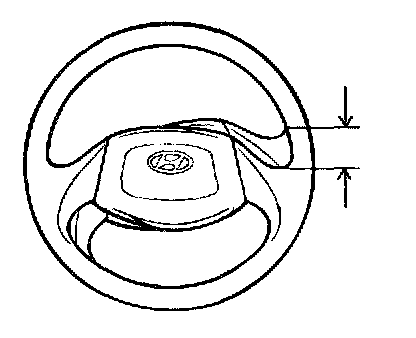

2. Measure the play at the circumference of the steering wheel.
Standard value
Steering wheel free play: 0 - 30 mm (0 - 1.1 inch)





3. If the play exceeds the standard value, inspect the contact of the steering shaft and tie rod ends.
