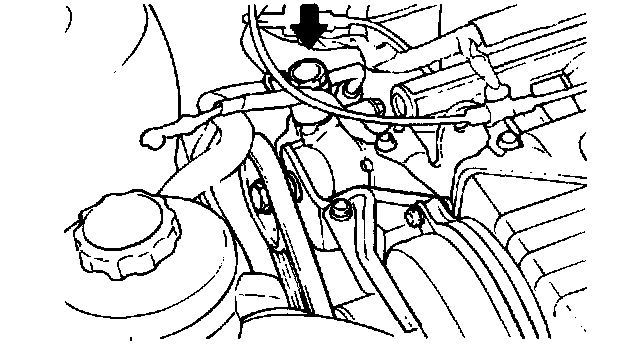

Removal Repair and Installation

REMOVAL

CAUTION: Be sure to cover the generator with a protector . when servicing the oil pump.

1. Remove the pressure hose from the oil pump.





2. Disconnect the suction hose from the suction connector and drain the fluid into a container.
3. Loosen the oil pump mounting bolts to remove the drive belt.
4. Remove the oil pump bracket mounting bolts and disconnect the pressure switch connector.





5. Remove the oil pump.

INSTALLATION
1. Install the oil pump to the oil pump bracket.
2. Install the suction hose.
3. Install the ribbed V-belt and adjust the belt tension.
4. Connect the pressure hose to the oil pump, and the suction hose to the oil reservoir.

NOTE: Install the hoses so they are not twisted and they do not come in contact with any other parts.

5. Replenish the fluid.
Recommended fluid : PSF-3
6. Bleed the system.
7. Check the oil pump pressure.
8. Install parts to the specified torque.
