Component Tests and General Diagnostics

PERFORMANCE TEST (NO-LOAD)

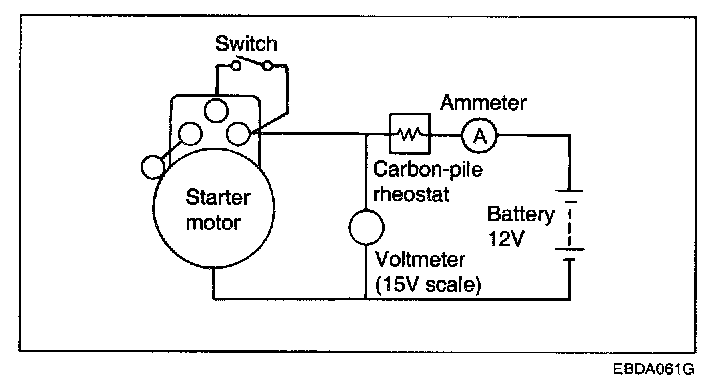

1. Make the no-load circuit test as shown.
2. After adjusting the rheostat until the battery voltage shown on the voltmeter reads 11.5 volts, confirm that the maximum amperage draw is within the specifications and that the starter motor turns smoothly and freely.

CURRENT : 60 A or less
