Disassembly and Reassembly

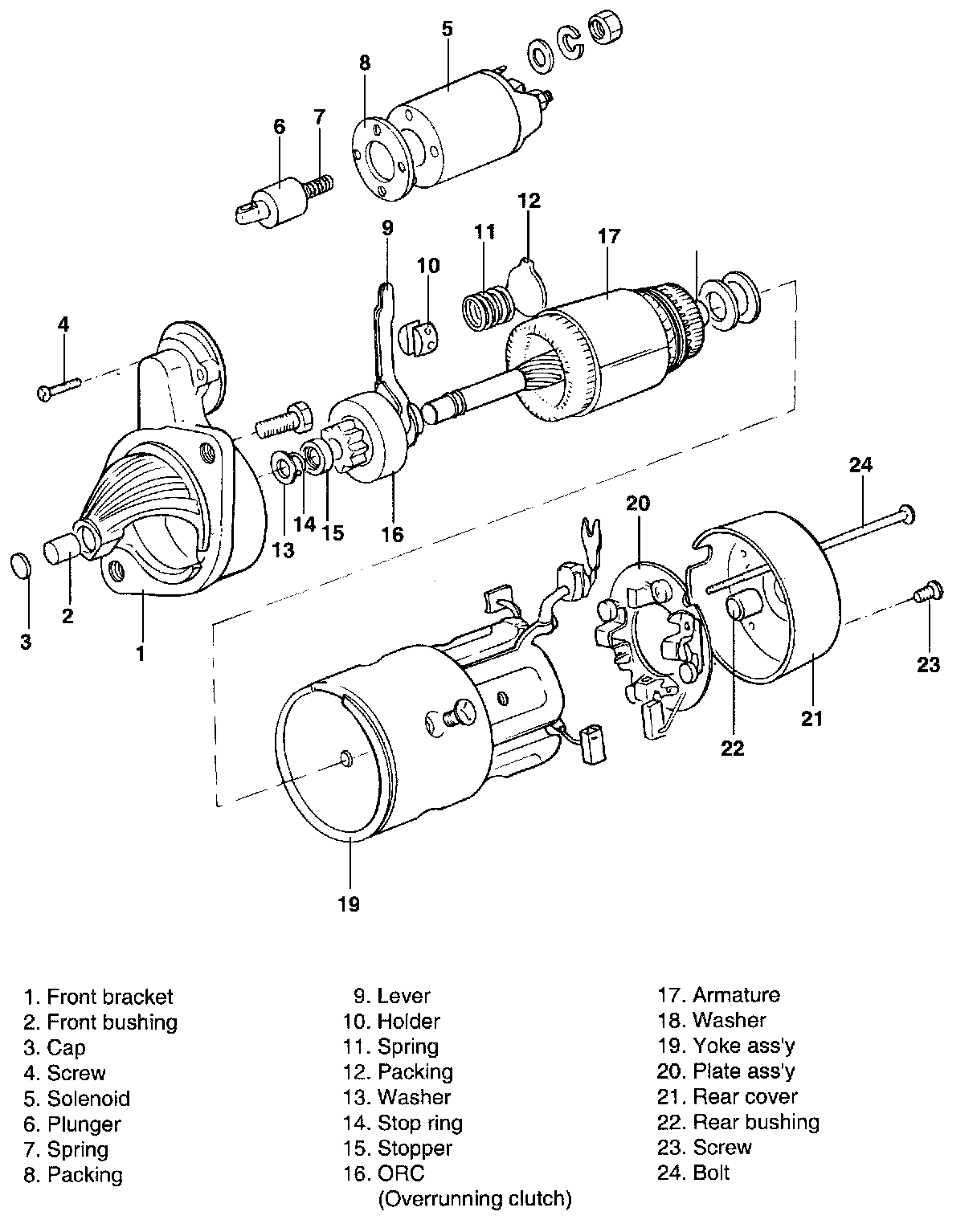

Starter Components:

DISASSEMBLY

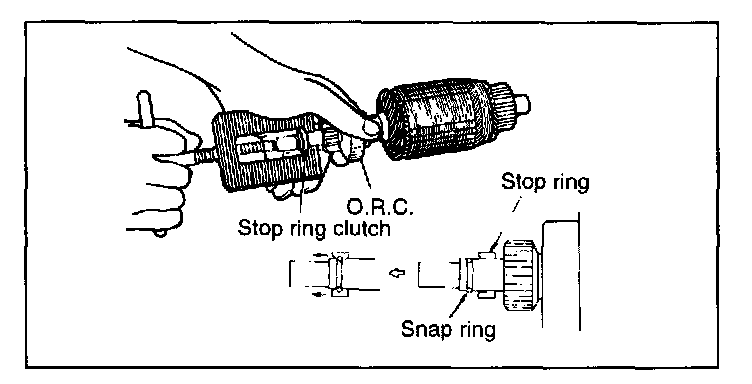

To remove the overrunning clutch from the armature shaft, the stop ring must be removed.

Move the stop ring toward the pinion and remove the snap ring. Now the stop ring can be removed from the shaft.

REASSEMBLY
1. Install the overrunning clutch to the front end of the armature shaft.

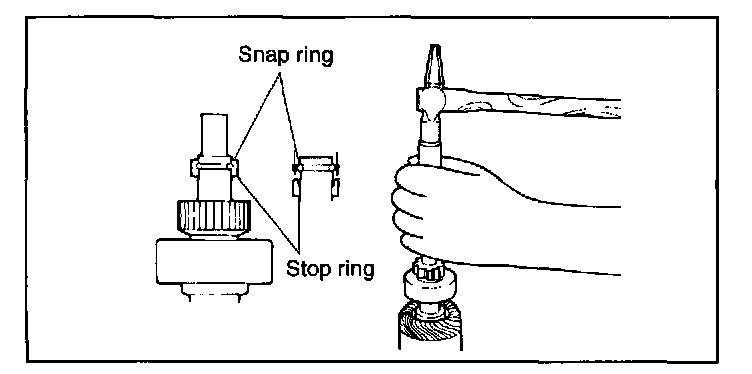

2. Install the stop ring and the snap ring from the front end of the armature shaft. Push the stop ring all the way toward the snap ring.




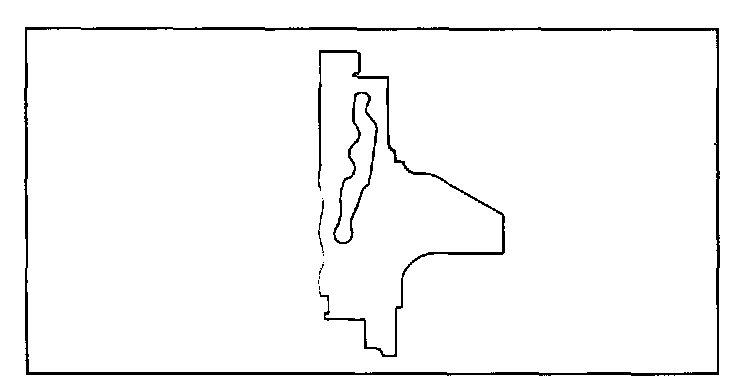

3. When the lever is mounted on the front bracket, pay attention to its direction. If it is mounted in a reverse direction, the pinion will remain in an outward position and fail to operate properly.
