Fuse and Fusible Link Locations

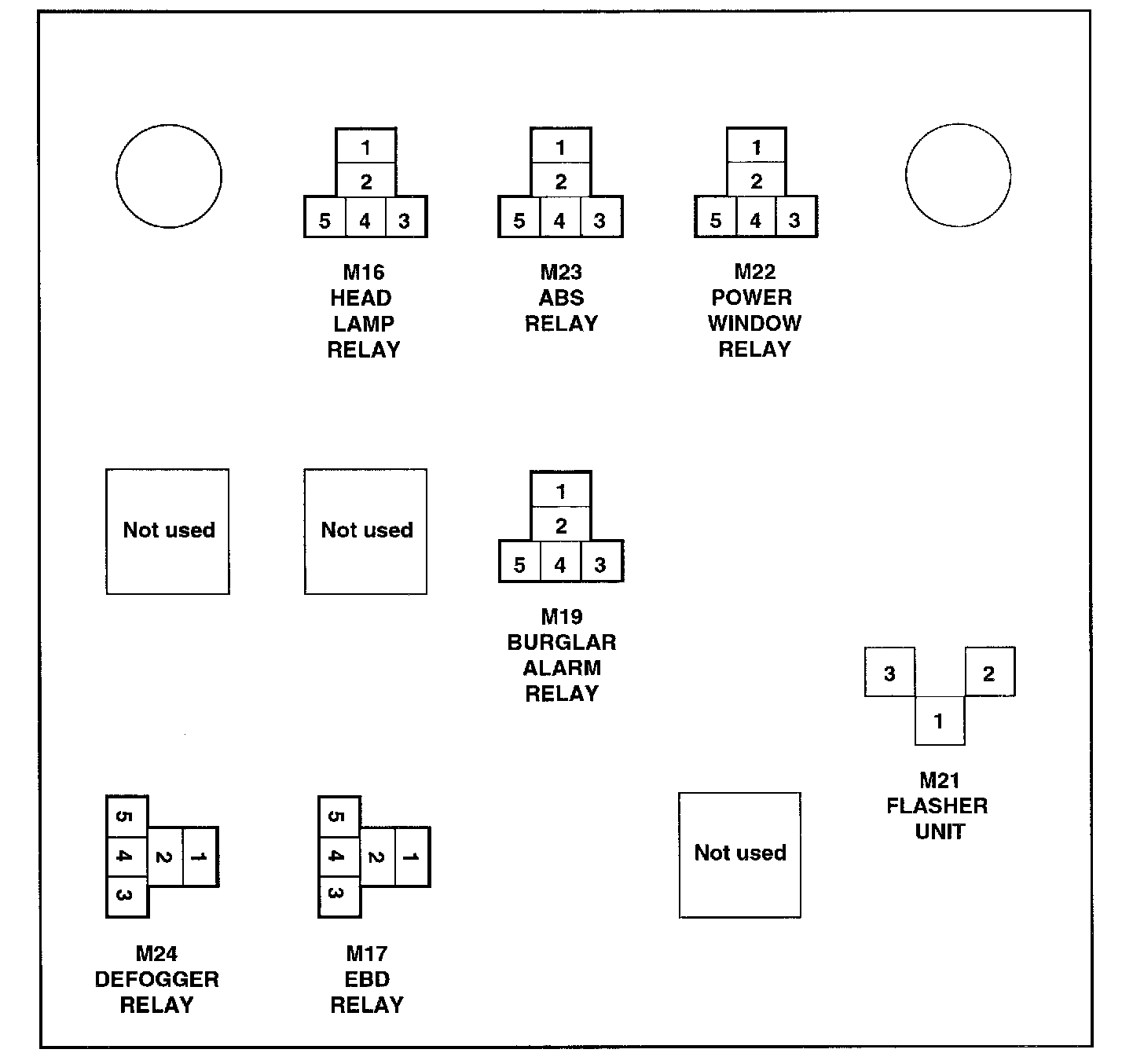

Passenger Compartment Relay Box Layout:

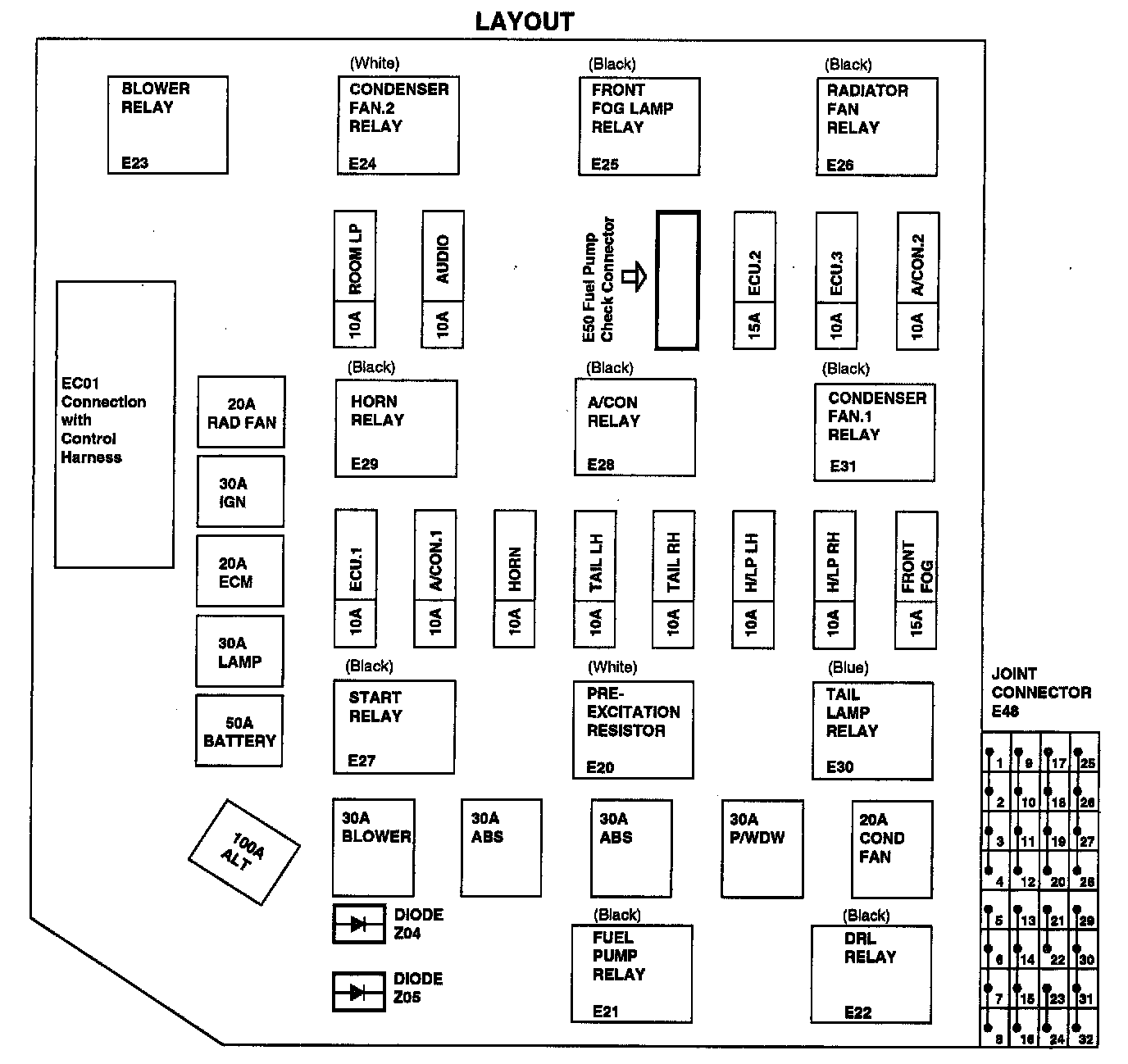

Engine Compartment Relay And Fuse Box:

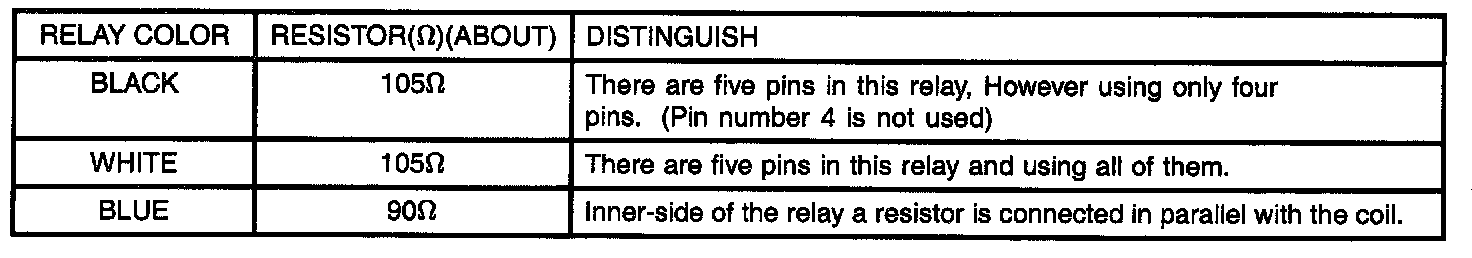

Relay Color:

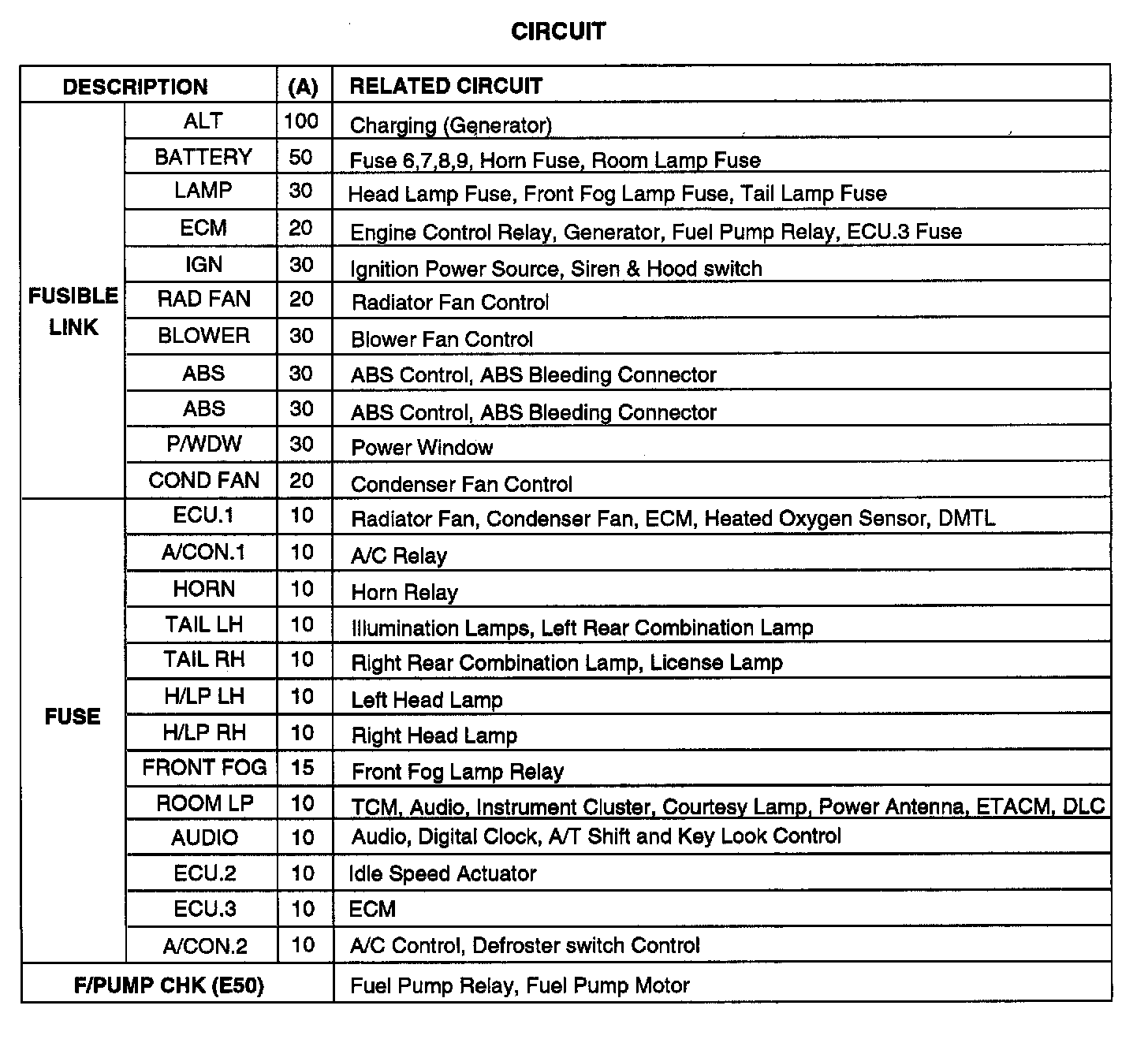

Fuse And Relay Information:
