The charging system includes a battery, a generator with a built-in regulator, and the charging indicator light and wire. The generator has six built-in diodes (three positive and three negative), each rectifying an AC current to DC current. Therefore, the DC current appears at generator "B" terminal.

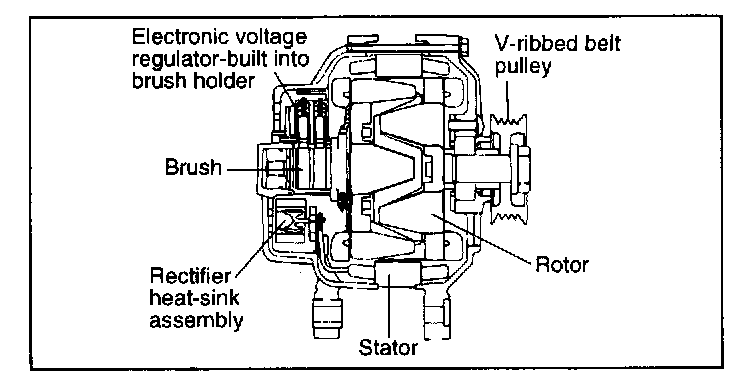

In addition, the charging voltage of the generator is regulated by the battery voltage detection system. The main components of the generator are the rotor, stator, rectifier, capacitor brushes, bearings and drive belt pulley. The brush holder contains a built-in electronic voltage regulator.

Circuit Description
The generator generates AC voltage in its windings by a belt driven by the engine. The rectifier converts this AC voltage to DC voltage. The voltage regulator, a component which is included in the generator frame, has a primary function of controlling the generator's output to meet electrical system requirements. The regulator also controls the charge warning lamp. Fuse 2 supplies battery voltage to the charge warning indicator. With the engine not running and the ignition switch ON, terminal L of the regulator is grounded internally and the indicator lights up.

A small amount of current provided by both the charge warning lamp and the pre-excitation resistor is used to 'excite' the magnetic field windings to start the charging process. With the engine running and the generator charging, terminal L voltage rises and the indicator goes out. If the generator fails to charge, terminal L remains below battery voltage and the indicator remains lights.
