Removal and Installation

Alternator:

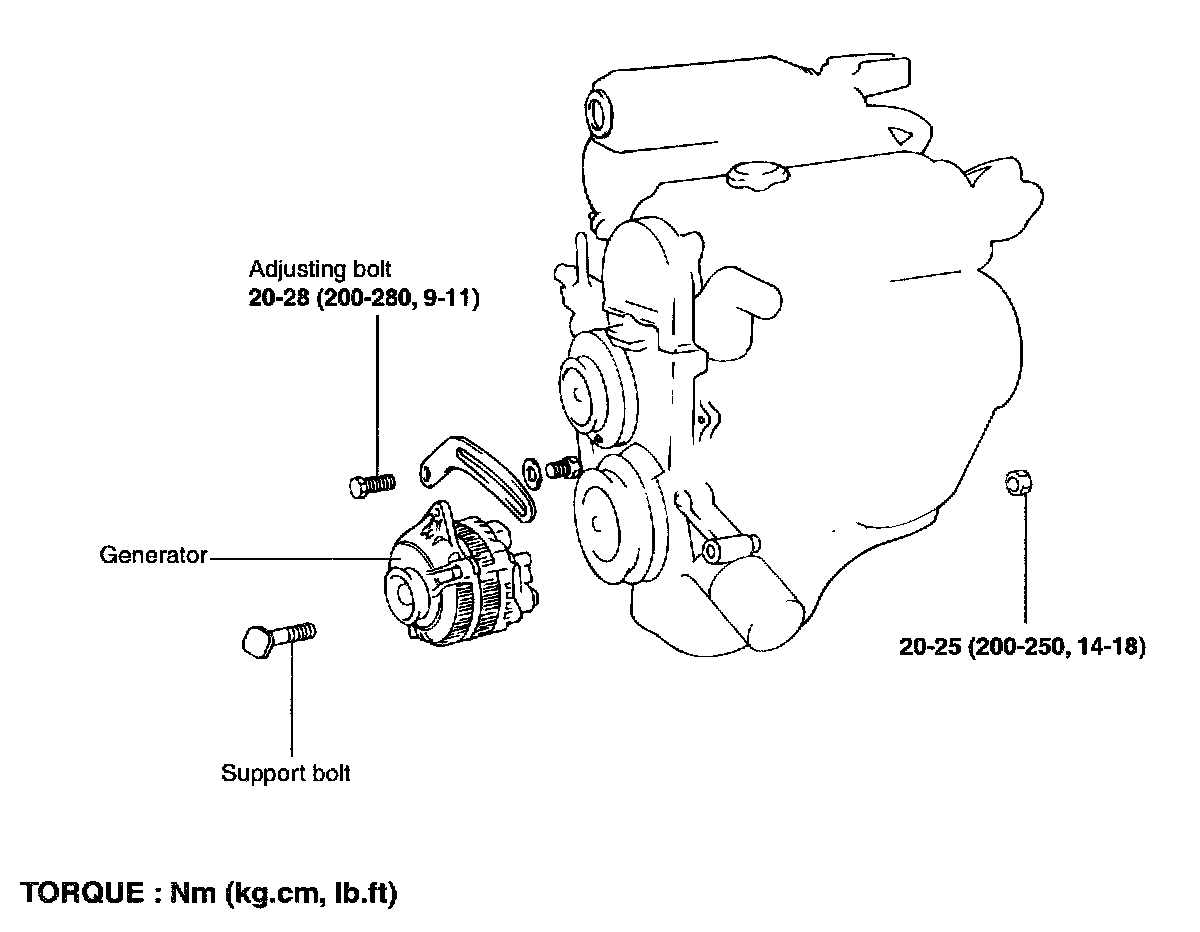

REMOVAL

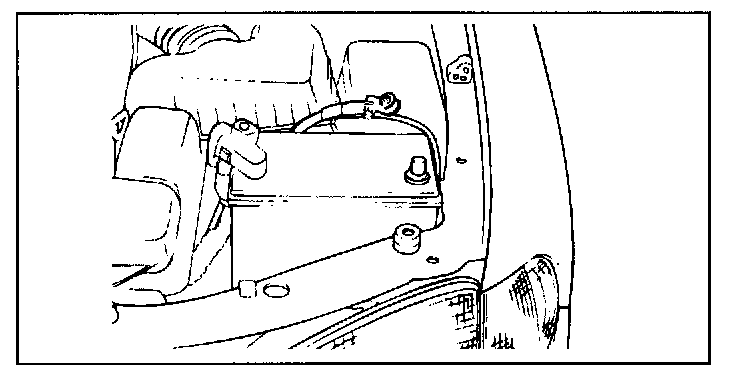

1. Disconnect the negative terminal from the battery and disconnect the radiator fan connector and condenser fan connector.

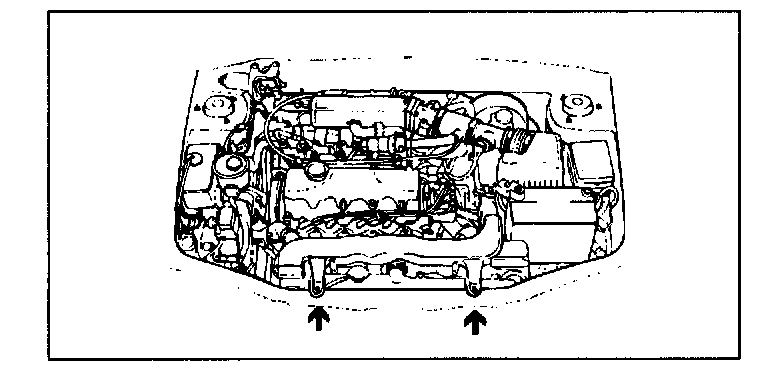

2. Remove the radiator mounting bolts

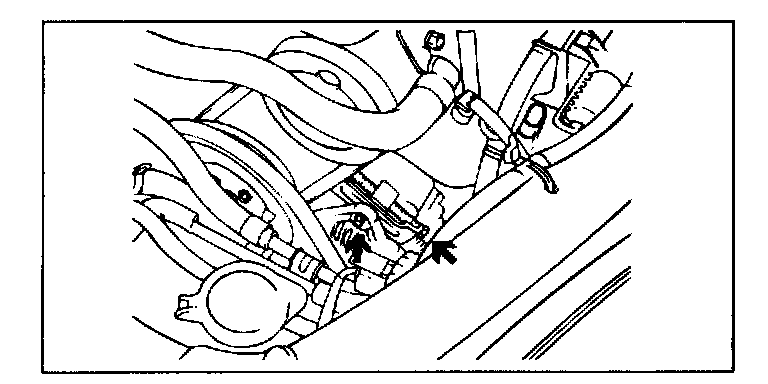

3. Loosen the belt tension adjusting bolt and remove the mounting bolt.
Then, raise the vehicle.

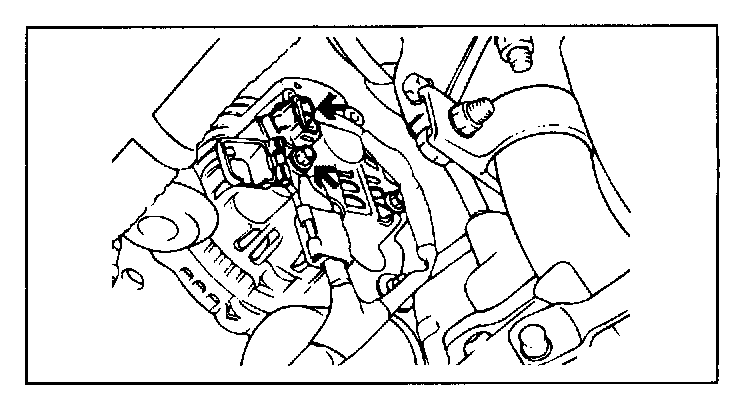

4. Disconnect the generator connector and remove the B+ terminal cable.

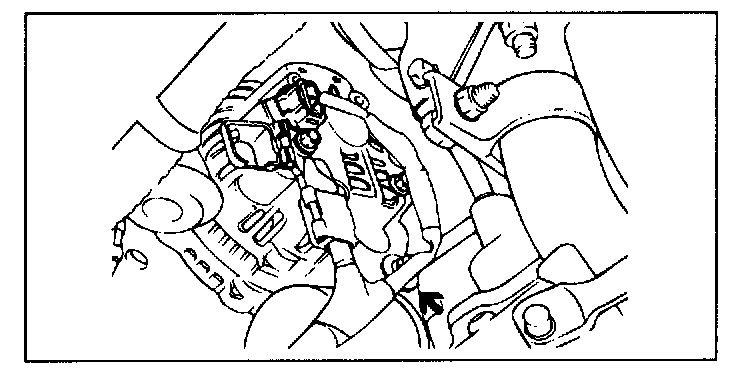

5. Remove the belt and detach the generator mounting bolt and nut.
Then, remove the generator assembly while raising the radiator.

INSTALLATION




1. Position the generator and insert the support bolt. (Do not attach the nut.)

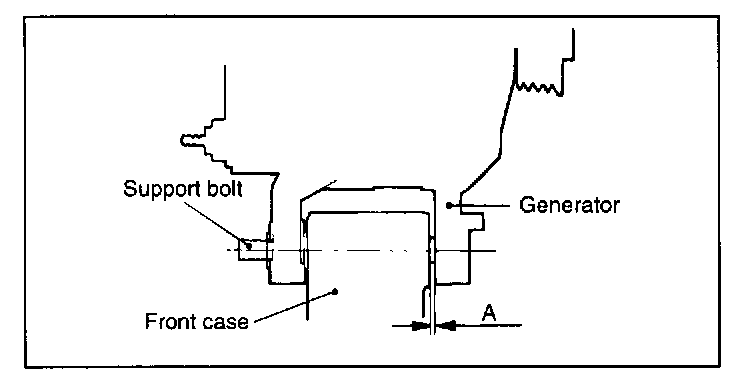

2. Push the generator forward and determine how many spacers (thickness : 0.198 mm) should be inserted between the front leg of the generator and the front case (space "A" in the illustration).
(There should be enough spacers so that they do not fall out when you let go of them.)
3. Insert the spacers (space "A" in the illustration), attach the nut, and complete the installation.
