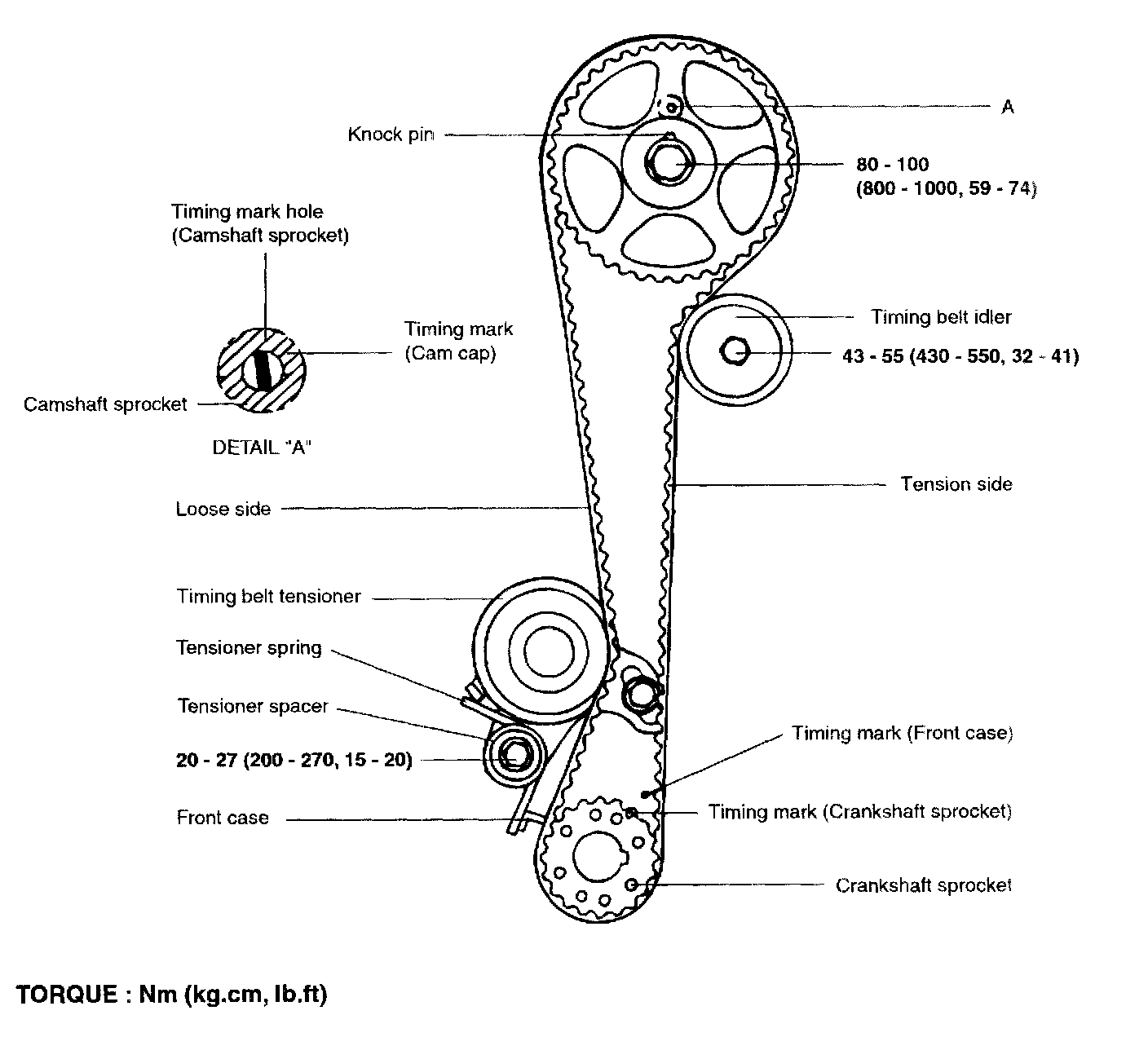

Timing Belt

TIMING BELT:

Crankshaft pulley bolt 140-150 Nm (1400-1500 kg-cm, 103-111 ft. lbs.)
Camshaft sprocket bolt 80-100 Nm (800-1000 kg-cm, 59-74 ft. lbs.)
Timing belt tensioner bolt 20-27 Nm (200-270 kg-cm, 15-20 ft. lbs.)
Timing belt idle bolt 43 - 55 Nm (430 - 550 kg-cm, 32 - 41 ft. lbs.)
Timing belt cover bolt 8-10 Nm (80-100 kg-cm, 6-7 ft. lbs.)
Front case bolt 20-27 Nm (200-270 kg-cm, 15-20 ft. lbs.)
