Power Window Switch: Testing and Inspection
1.
Remove the switch from the door trim panel.
2.

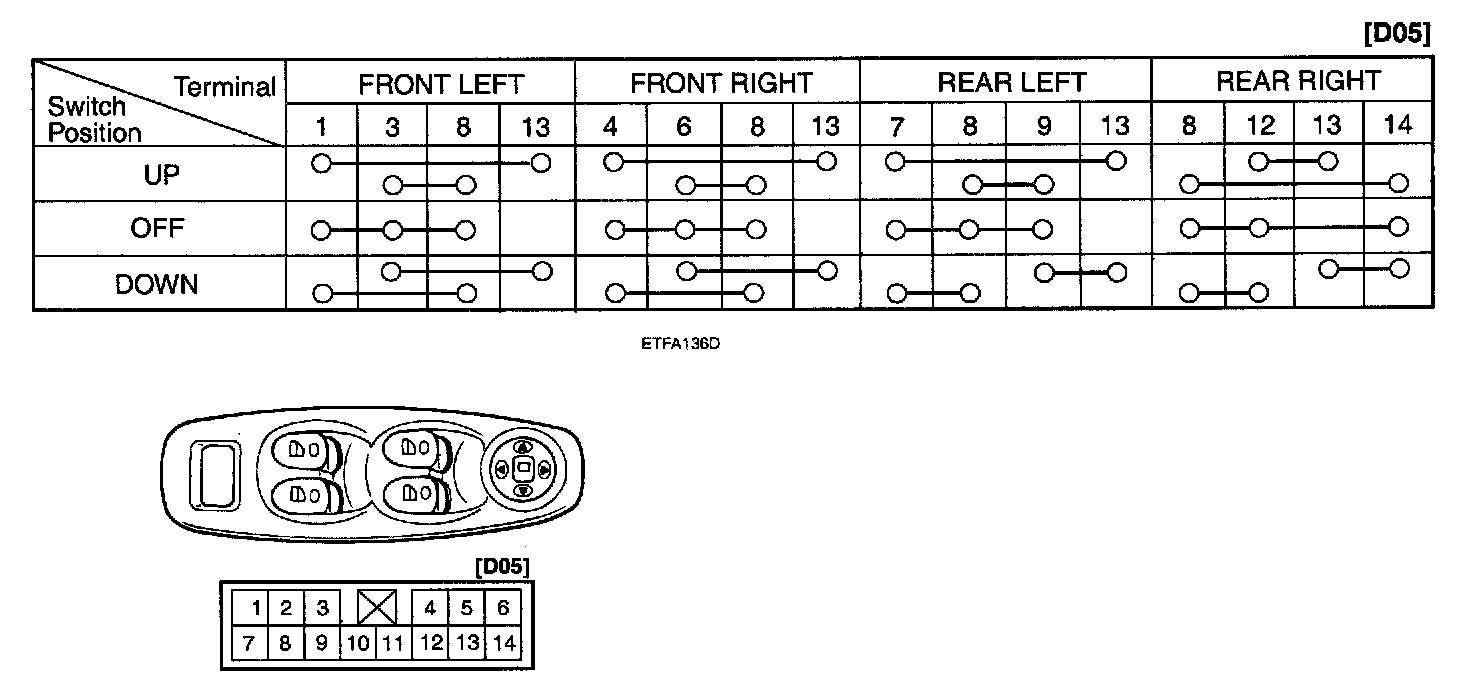

Check for continuity between the terminals. If continuity is not as specified, replace the
power window switch
.
