Without Air Bag

Multifunction Switch (Without Air Bag):

REMOVAL AND INSTALLATION

WITHOUT AIR BAG

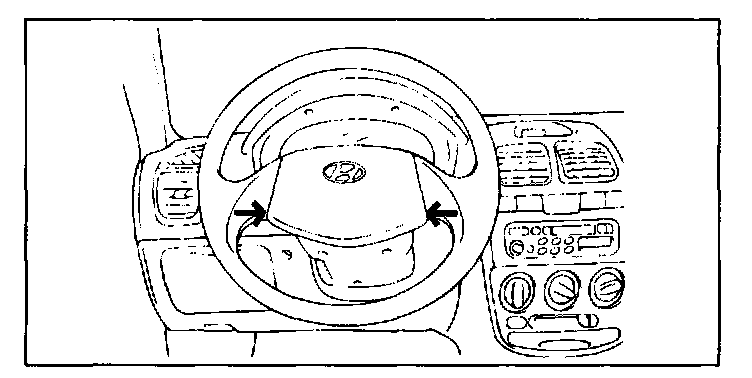

1. Remove the horn pad and steering wheel.

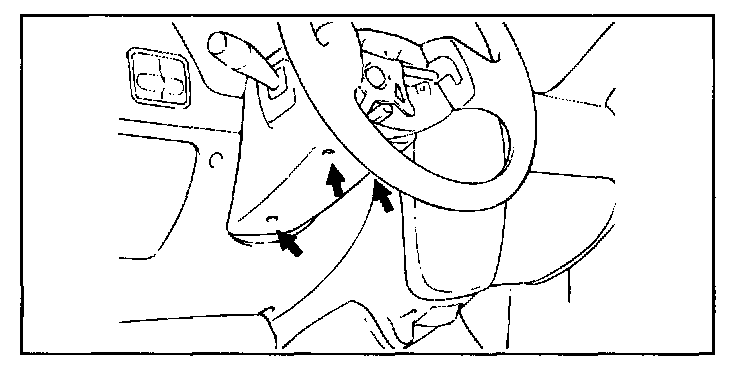

2. Remove the upper and lower steering column shrouds.
3. Remove the multifunction switch assembly mounting screws and remove the multifunction switch assembly.
4. Installation is the reverse of removal.
