Temperature Sensor (Gauge): Locations

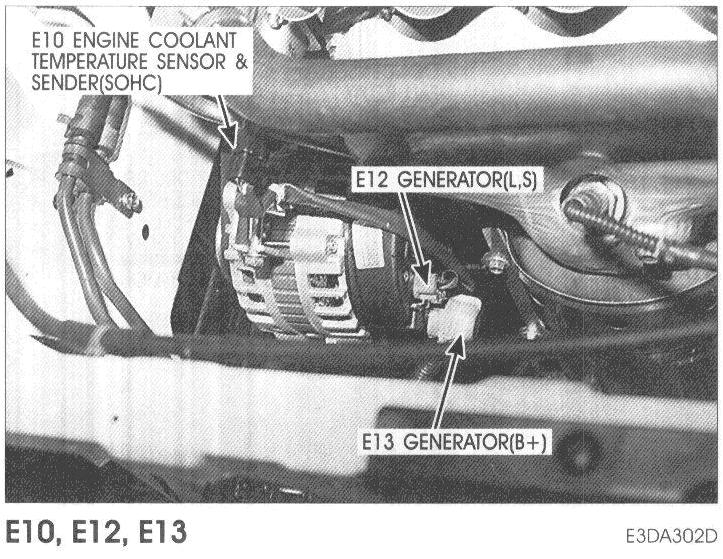

E10-Engine Coolant Temperature Sensor And Sender, E12-Generator(L,S), E13-Generator(B+):

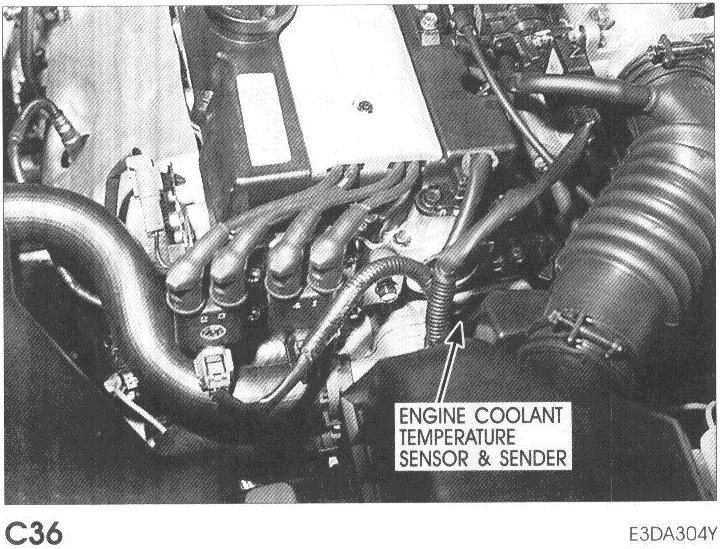

C36-Engine Coolant Temperature Sensor And Sender:
