Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Locations

Power Door Lock Switch: Locations

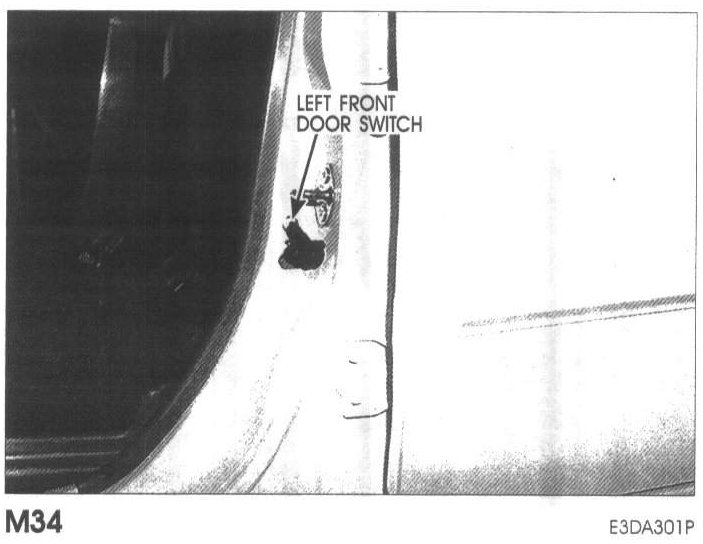

M34 Left Front Door Switch:

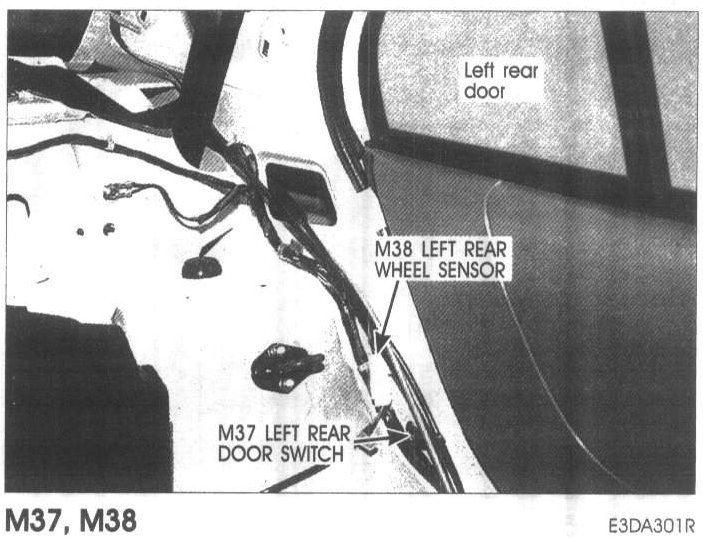

M37 Left Rear Door Switch, M38 Left Rear Wheel Sensor:

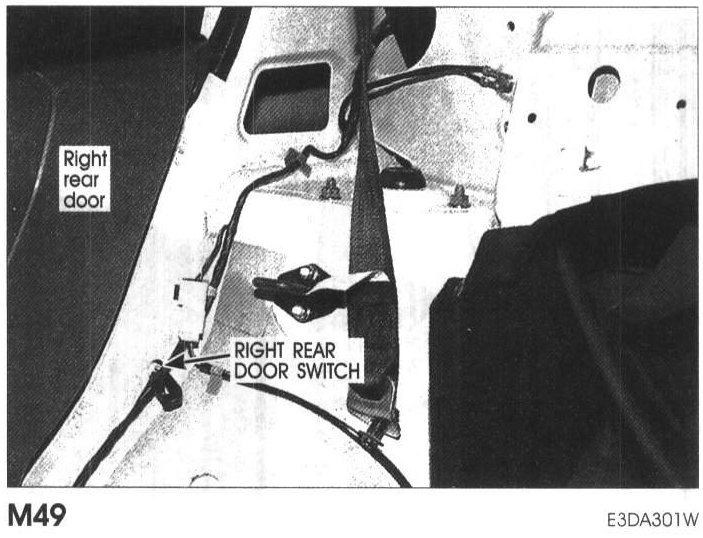

M49 Right Rear Door Switch:

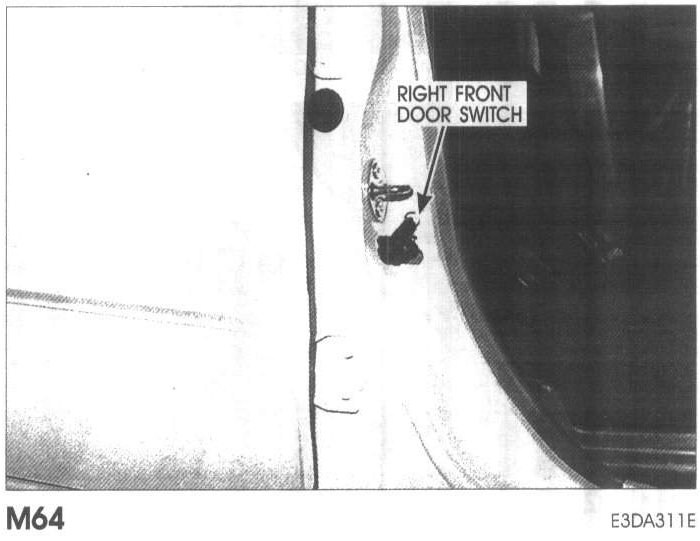

M64 Right Front Door Switch:

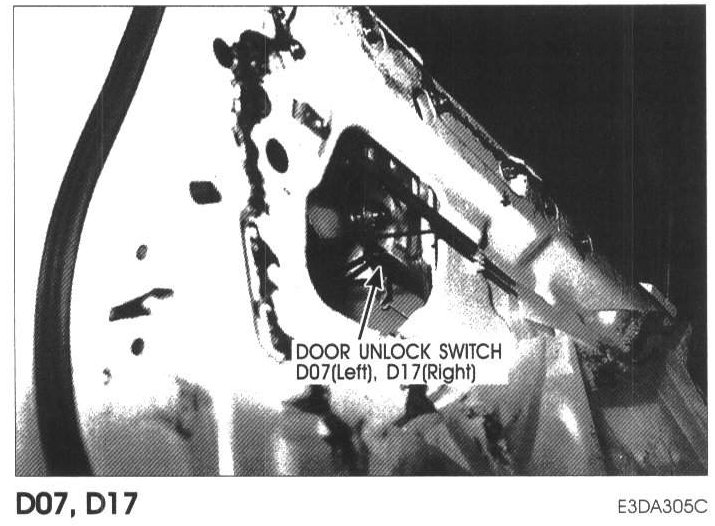

D07 Left Door Unlock Switch, D17 Right Door Unlock Switch:
