Air Bag Control Module: Diagrams

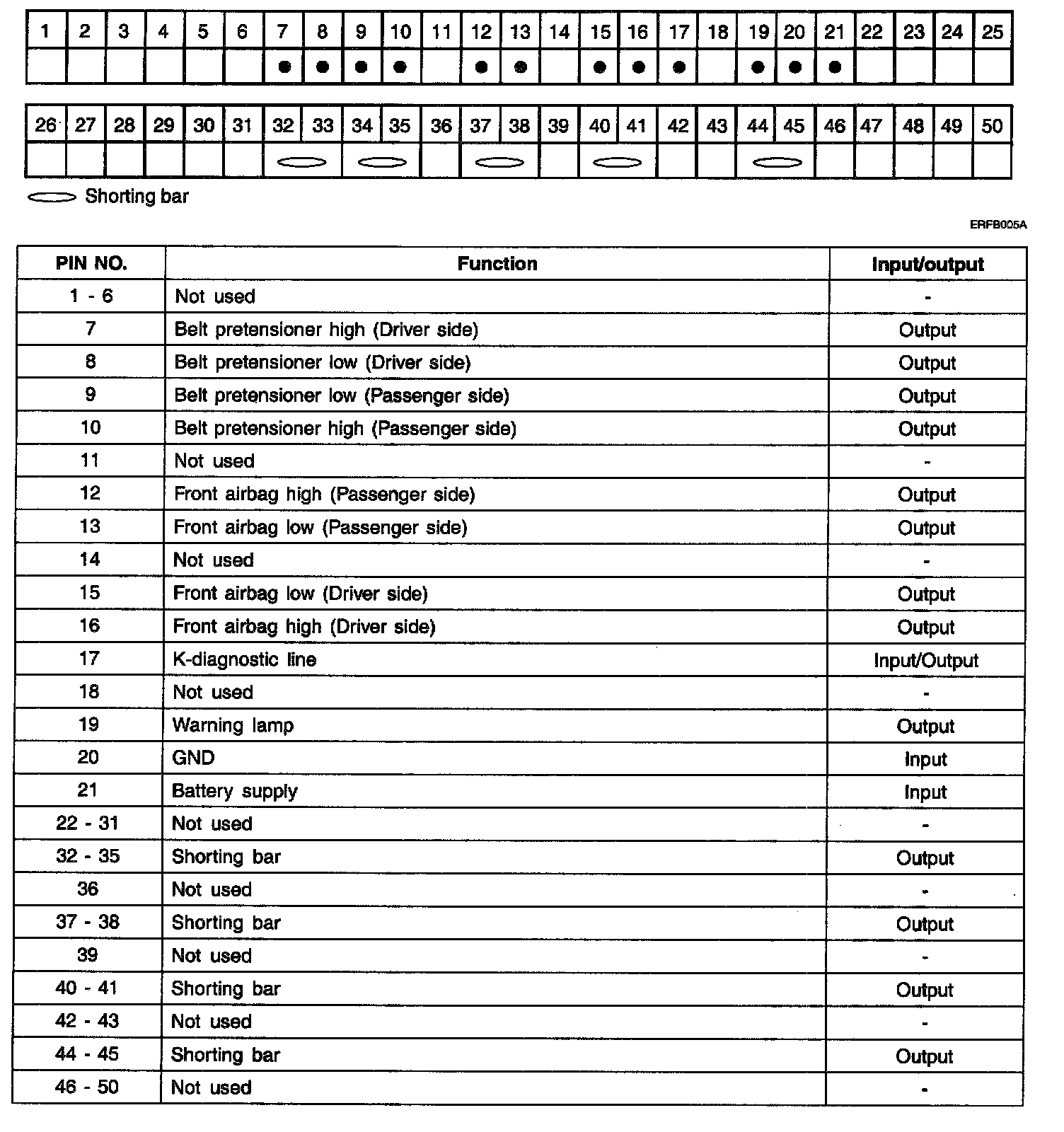

DAB + PAB + BPT:



DAB+PAB+SAB+BPT Pin No. 1 - 39:

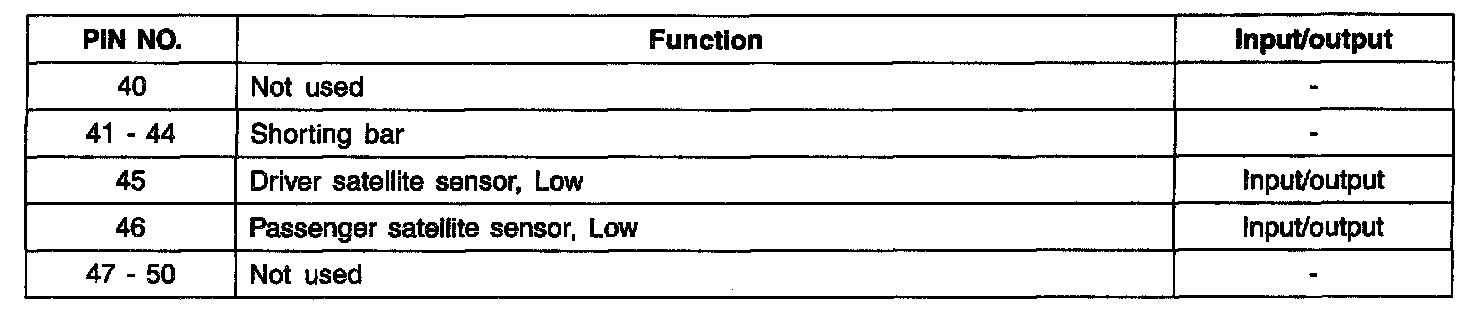

DAB+PAB+SAB+BPT Pin No. 40 - 50:
