Reading and Clearing Diagnostic Trouble Codes

NOTE: HYUNDAI does not provide a procedure to retrieve SRS diagnostic trouble codes without a scan tool.

DIAGNOSIS WITH SCAN TOOL




CHECK PROCEDURES

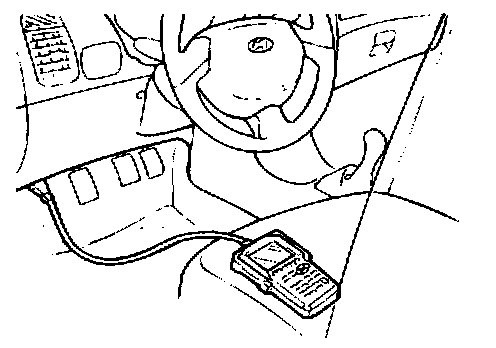

1. Connect the Hi-Scan Pro DLC to the vehicle's data link connector located underneath the dash panel.
2. Turn the ignition key to the "ON' position and turn the Hi-Scan Pro ON.
3. Perform the SRS diagnosis according to the vehicle model configuration.
4. If a fault code is assured, then replace the component. Never attempt to repair the component.
5. If the Hi-Scan Pro finds that a component of the system is faulty, there is a possibility that the fault is not in the component, but in SRS wiring or connector.
