Airbag System (SRS)(1) - (SRE-LC):

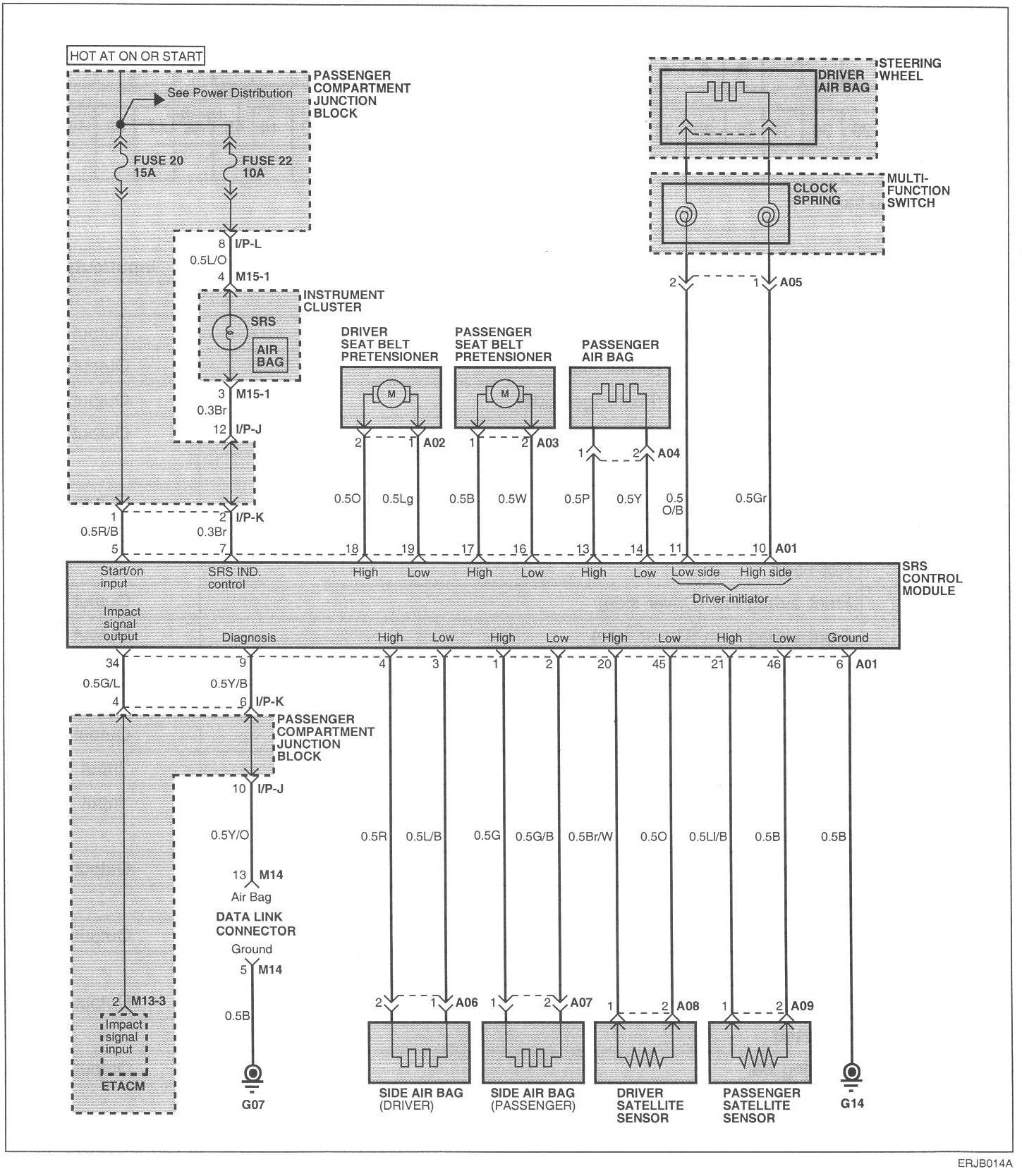

Airbag System (SRS)(2) - (SRE-HMC):

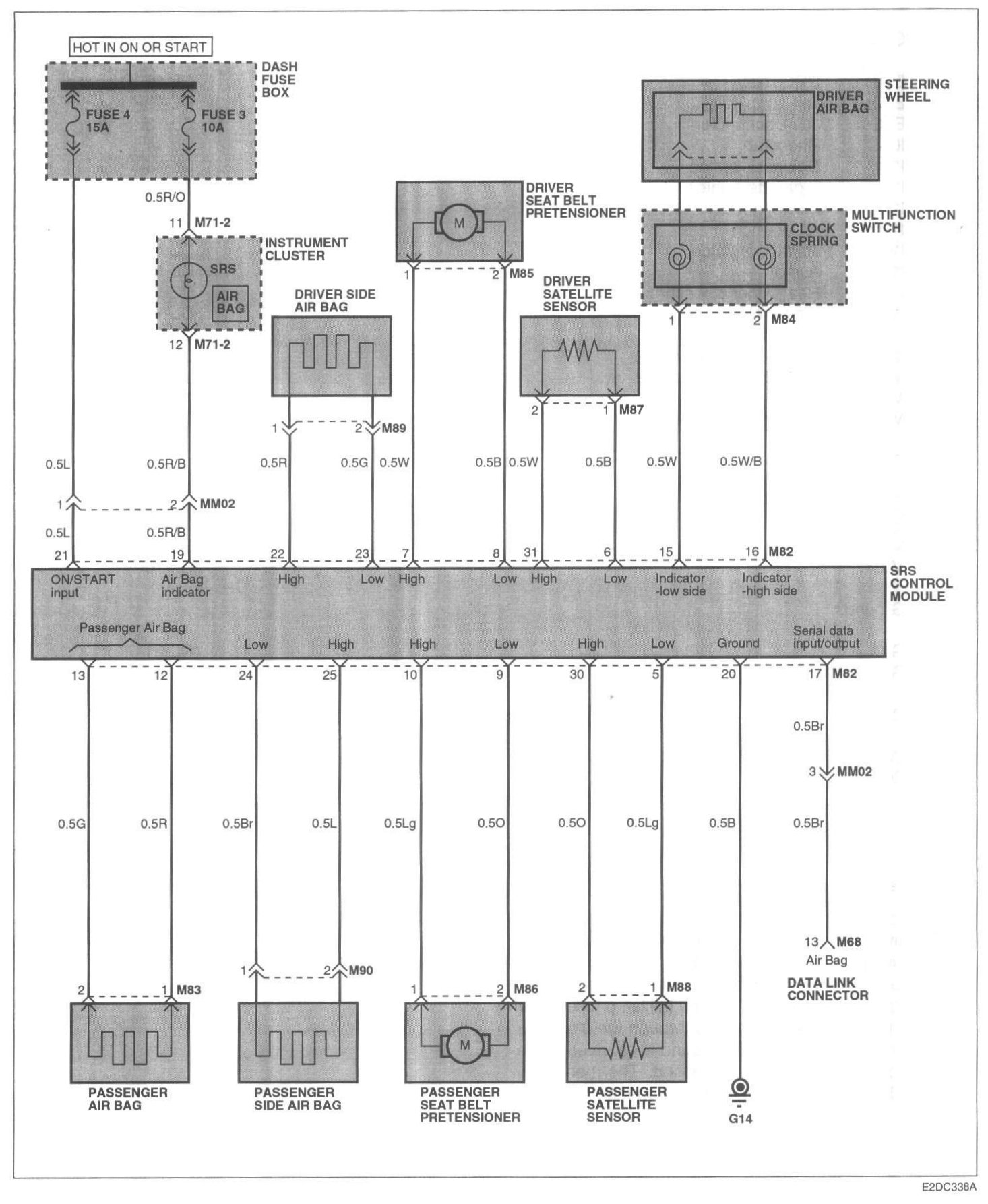

Image SD-136 Air Bag System (SRS) (1):
