Blower Motor Relay: Testing and Inspection

BLOWER FAN RELAY
1. Remove the battery ground cable.
2. Remove the rheostat switch with coin box from the crash pad.

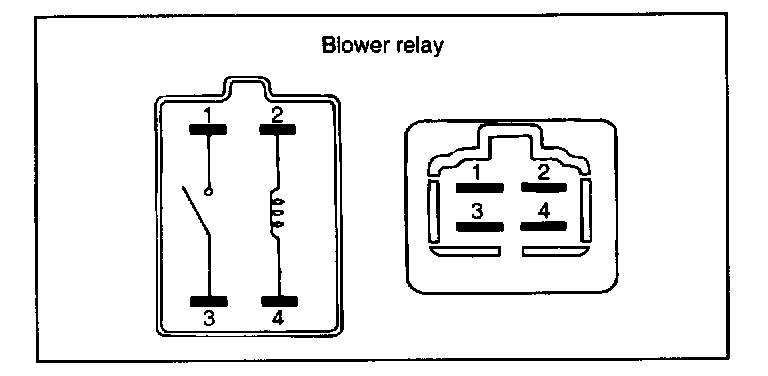

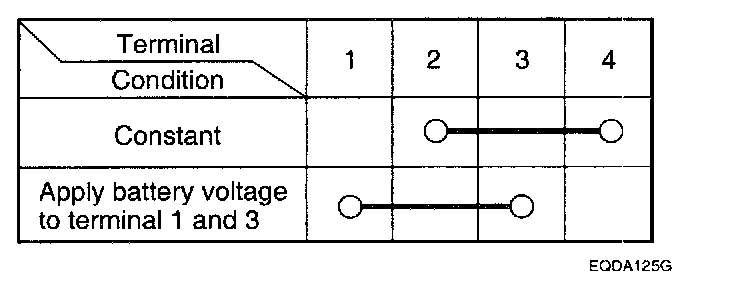

3. Remove the relay and check for continuity between the terminal.




If continuity is not as specified, replace the relay.
