A/T - Diagnostic Trouble Code (DTC) List

Group: TRANSAXLE

Number: 06-40-019

Date: DECEMBER, 2006

Model:
1996-07 ACCENT

Subject:
1996-2000 ELANTRA, 1997-2001 TIBURON AUTOMATIC TRANSAXLE DIAGNOSTIC TROUBLE CODES LIST

This TSB supercedes TSB 05-40-018 to provide 2007 Accent information.

DESCRIPTION

The following vehicles share common transaxle Diagnostic Trouble Codes:

^ 1996-2007 Accent

^ 1996-2000 Elantra

^ 1997-2001 Tiburon





Elantra and Tiburon vehicles produced from 6/1/99 production and 2000-07 Accent vehicles use a valve body with six solenoids and have several new DTCs.

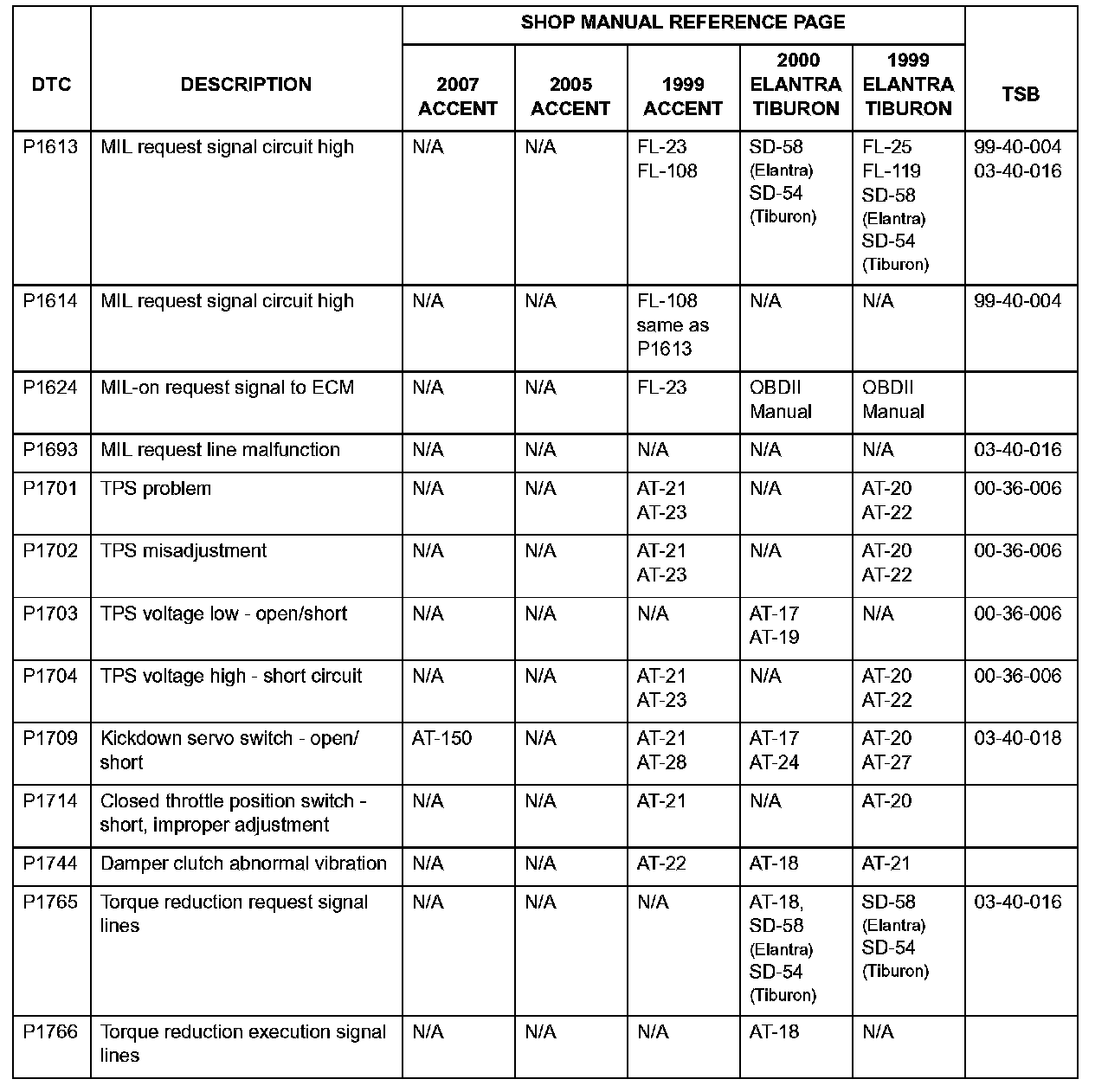

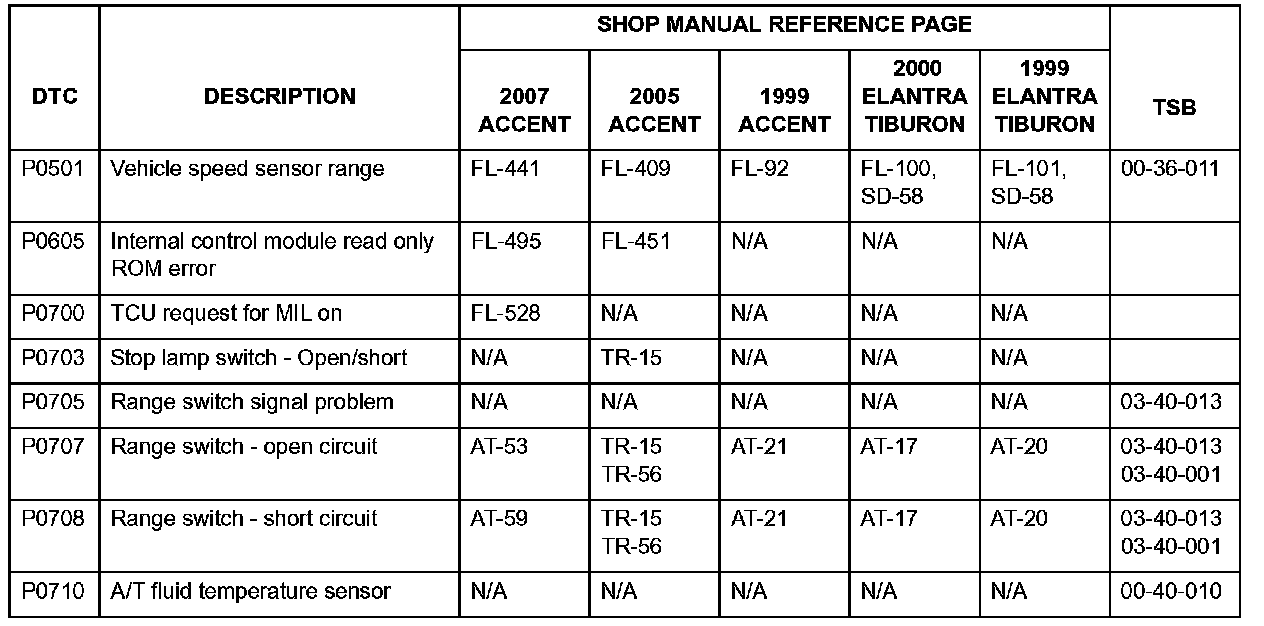

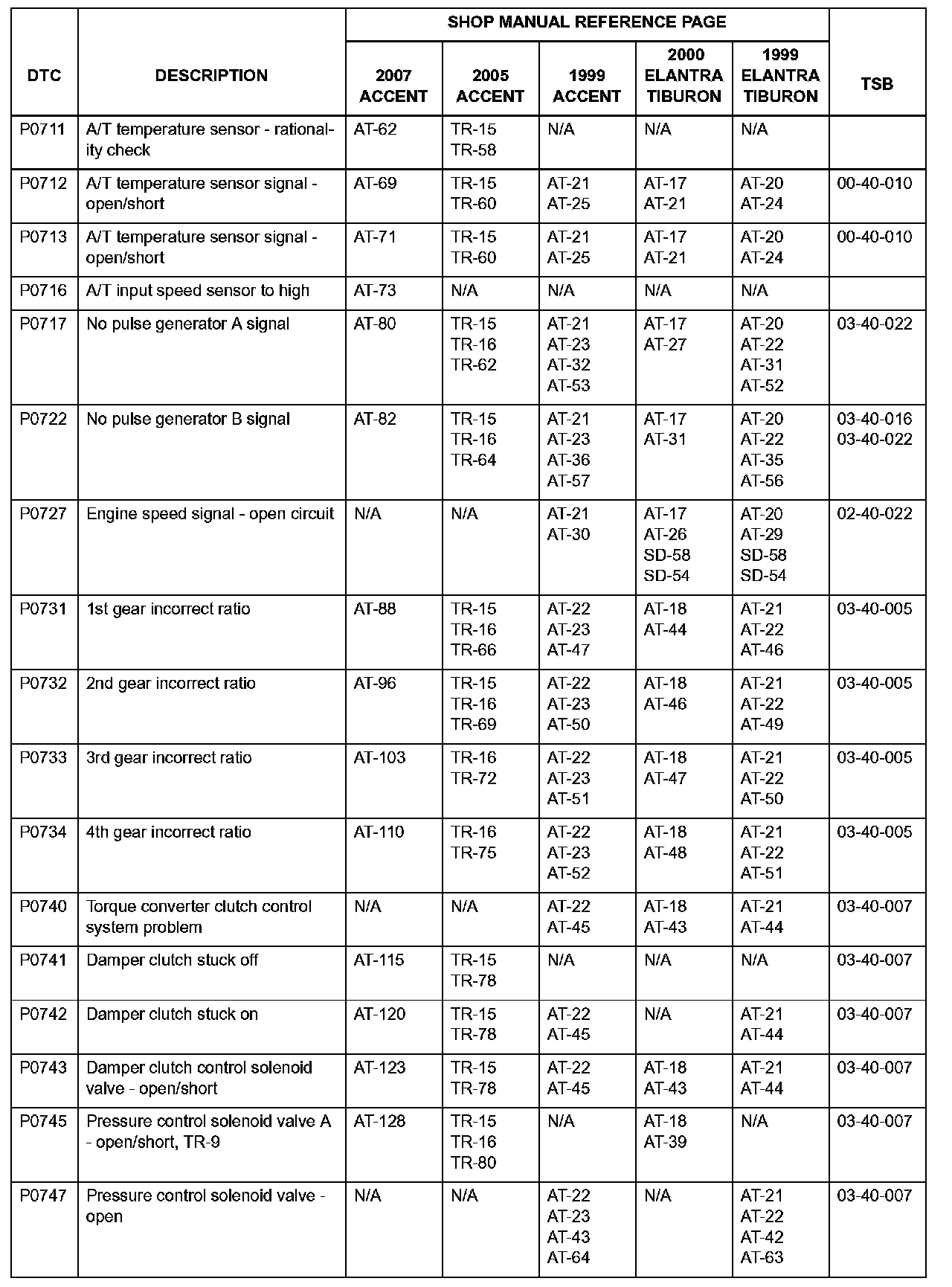

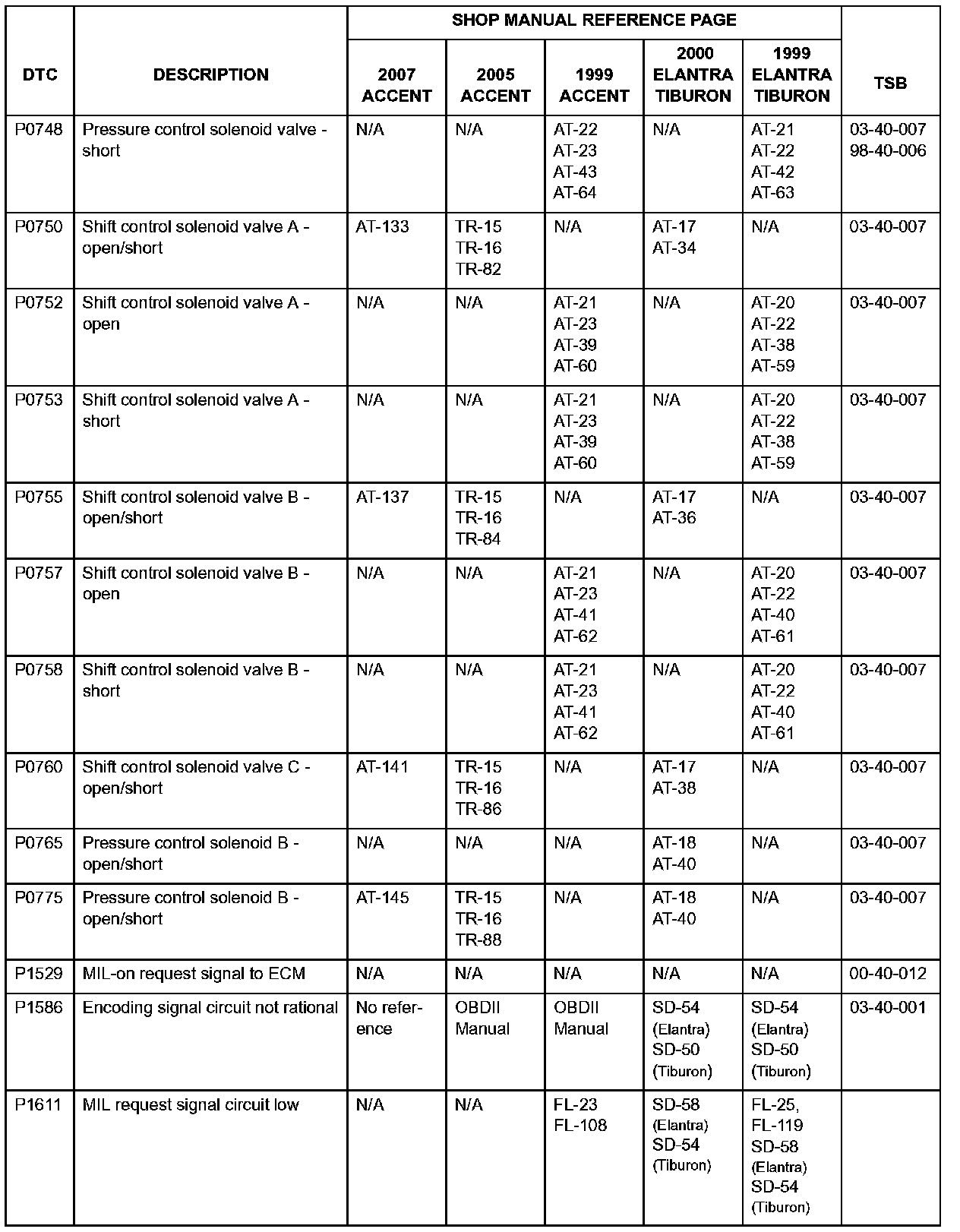

DTC information can be found in the shop manuals, TSBs and Engine Fault Code Diagnostic Manual (OBDII Manual) shown.

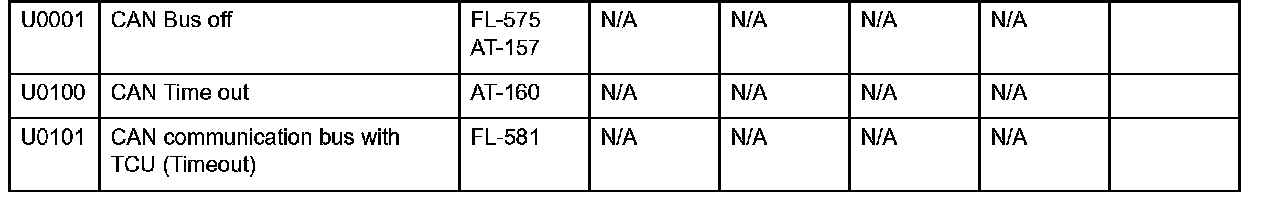

CAN DTC
