Ignition Coil Pack: Testing and Inspection

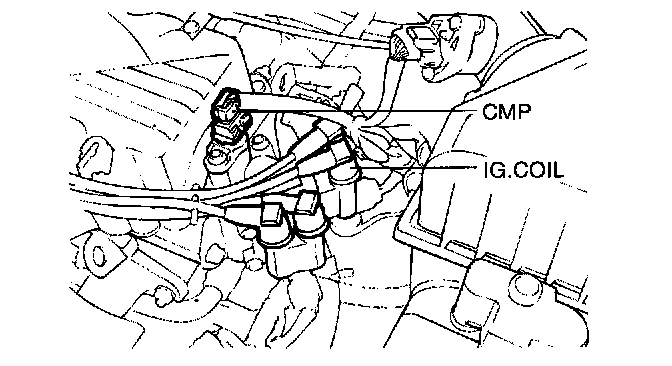

IGNITION COIL
When the ignition power transistor is turned ON by a signal from the ECM, the ECM sends a signal to the ignition coil, then the primary current is shut off and a high voltage is induced in the secondary coil.

Circuit Diagram:

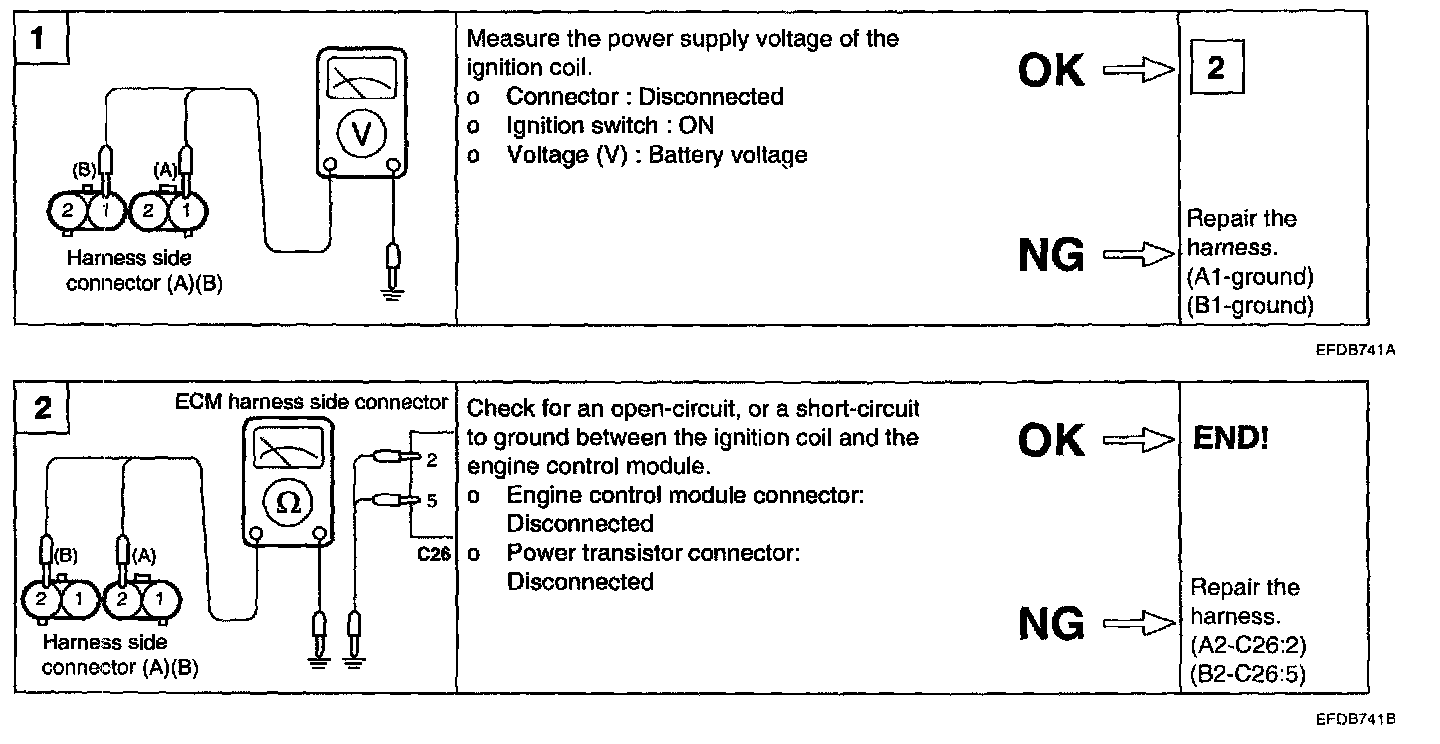

Harness Inspection Procedure:
