Accelerator Pedal: Service and Repair

Engine Control:

REMOVAL




1. Remove the bushing and inner cable of the accelerator arm side.

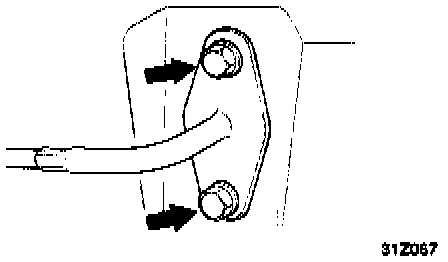

2. After disconnecting the accelerator switch connector, loosen the bolts of the accelerator arm bracket and remove.

INSTALLATION

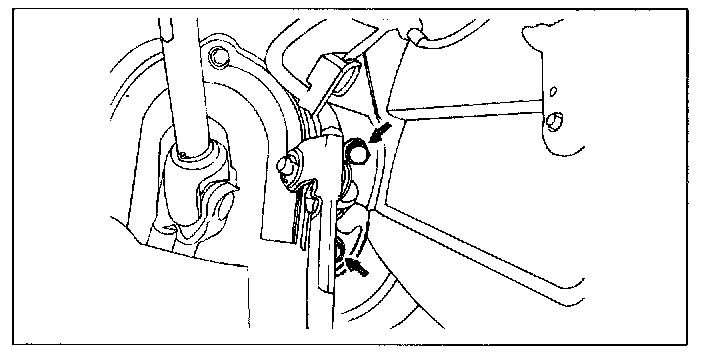

Accelerator Assembly Grease Points:

1. When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.

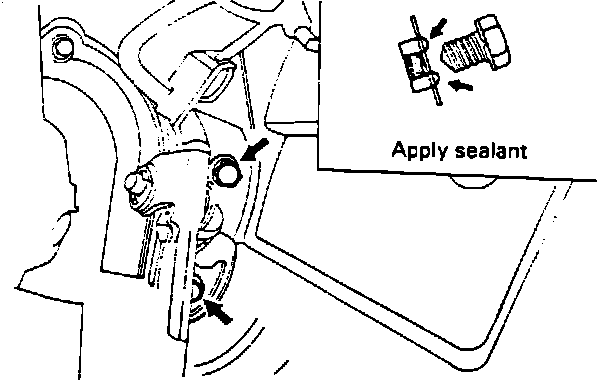

Accelerator Bracket Sealant Points:

2. Apply sealant to the bolt mounting hole, and tighten the accelerator arm bracket.

Tightening torque
Accelerator arm bracket bolts : 8 - 12 Nm (80 - 120 kg.cm, 5.8 - 7.2 lb.ft)

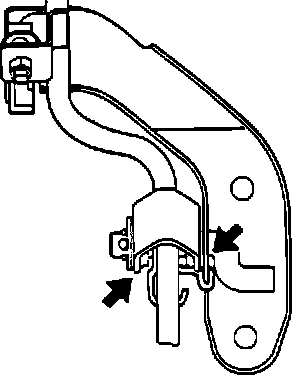

3. Securely install the resin bushing of the accelerator cable on the end of the accelerator arm.

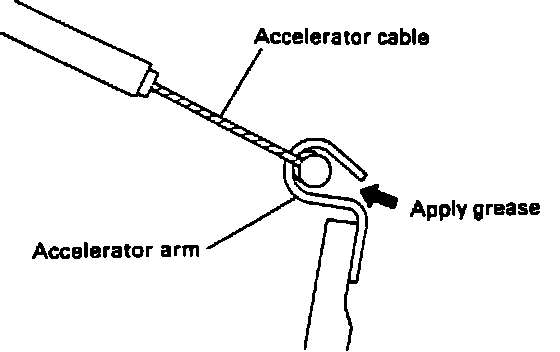

Accelerator Cable, Pedal End Grease Point:

4. Apply multipurpose grease around the cable end.
