Harness Inspection Procedures

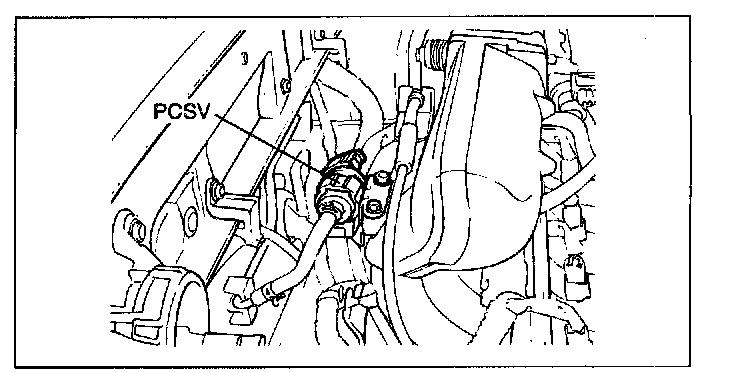

EVAPORATIVE EMISSION CANISTER PURGE SOLENOID VALVE
The evaporative emission canister purge solenoid valve is a duty control type, which controls the flow of purge air from the evaporative emission canister.

Circuit Diagram:

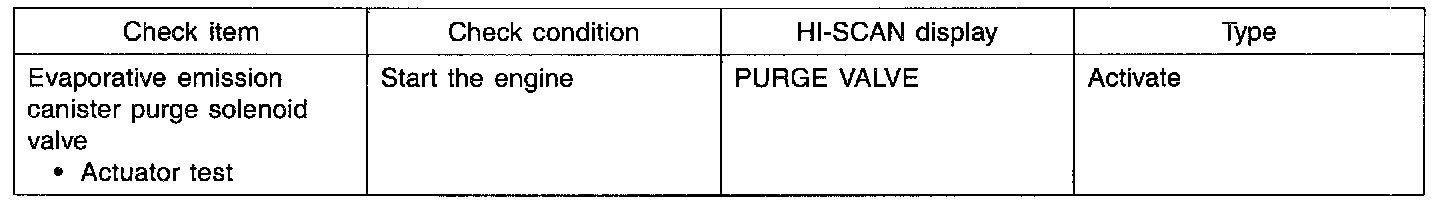

Using Hi-Scan:

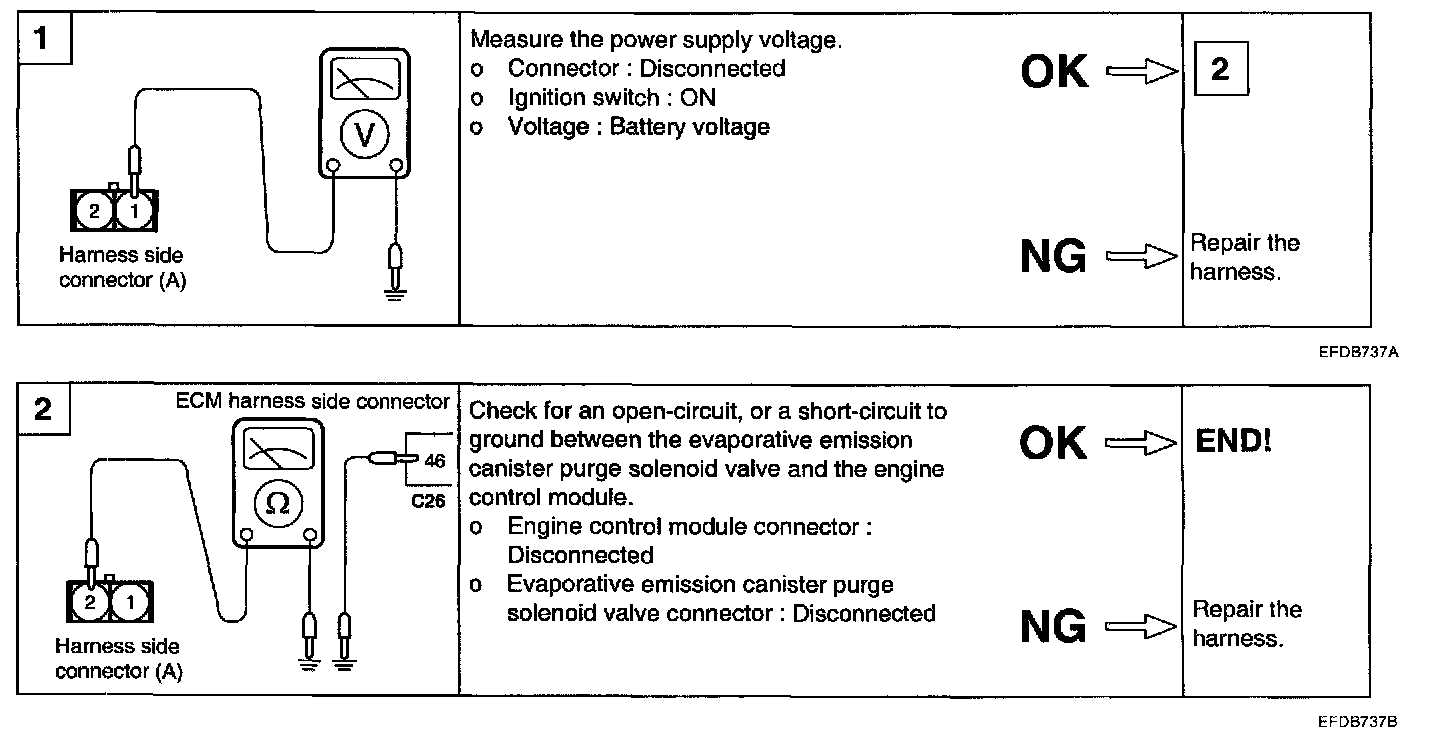

Harness Inspection:

ACTUATOR INSPECTION
Refer to Component Inspection.
