Transmission Controls - A/T DTC List
Group: TRANSAXLENumber: 04-40-020
Date: NOVEMBER 2004
Model: 1996-05 ACCENT
1996-2000 ELANTRA, 1997-2001 TIBURON
Subject
AUTOMATIC TRANSAXLE DIAGNOSTIC TROUBLE
CODES LIST
DESCRIPTION
The following vehicles share common transaxle Diagnostic Trouble Codes (DTC):
^ 1996-2005Accent
^ 1996-2000 Elantra
^ 1997-2001 Tiburon
Elantra and Tiburon vehicles produced beginning 6/1/99 and 2000-2005 Accent vehicles use a valve body with six solenoids and have several new DTCs.

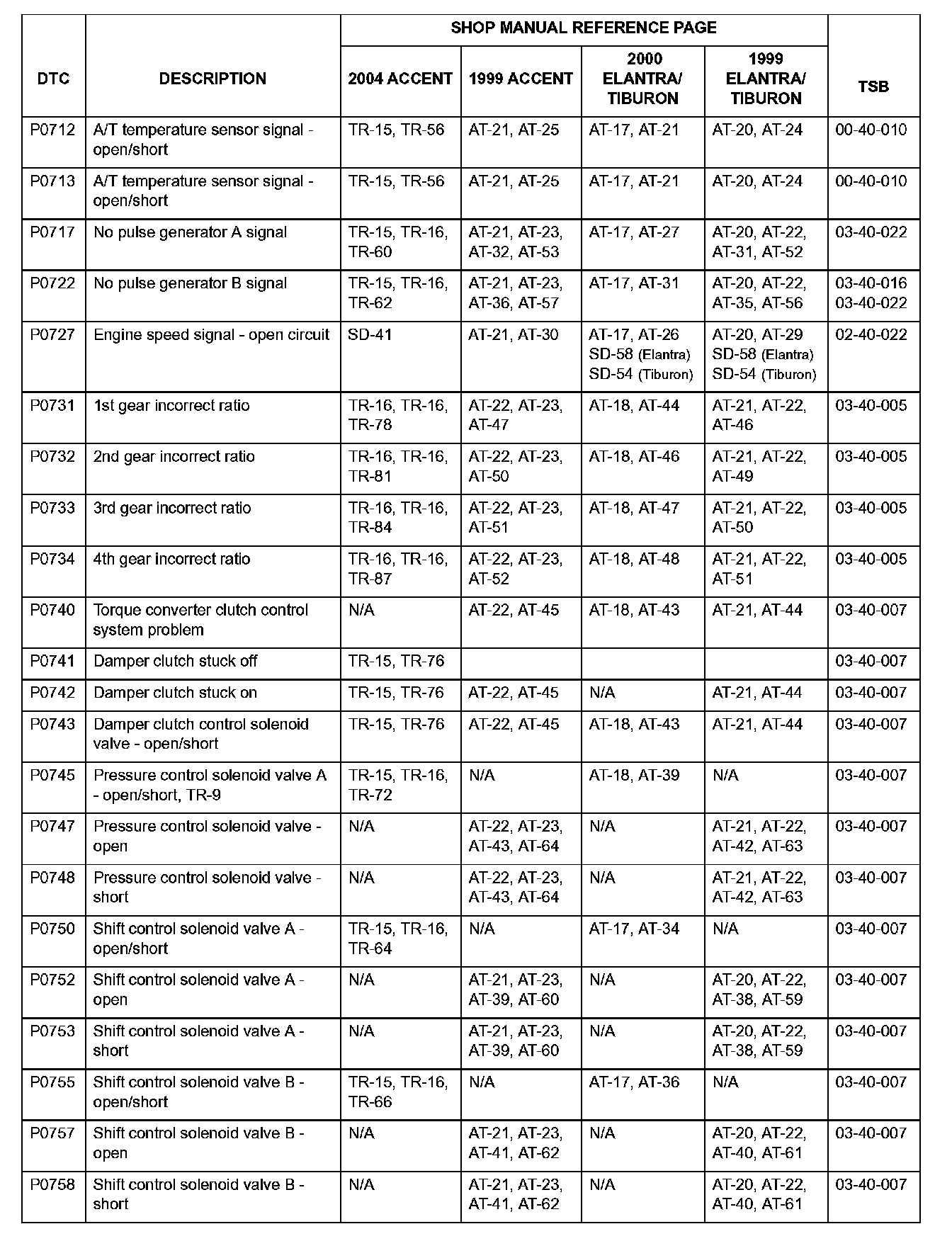

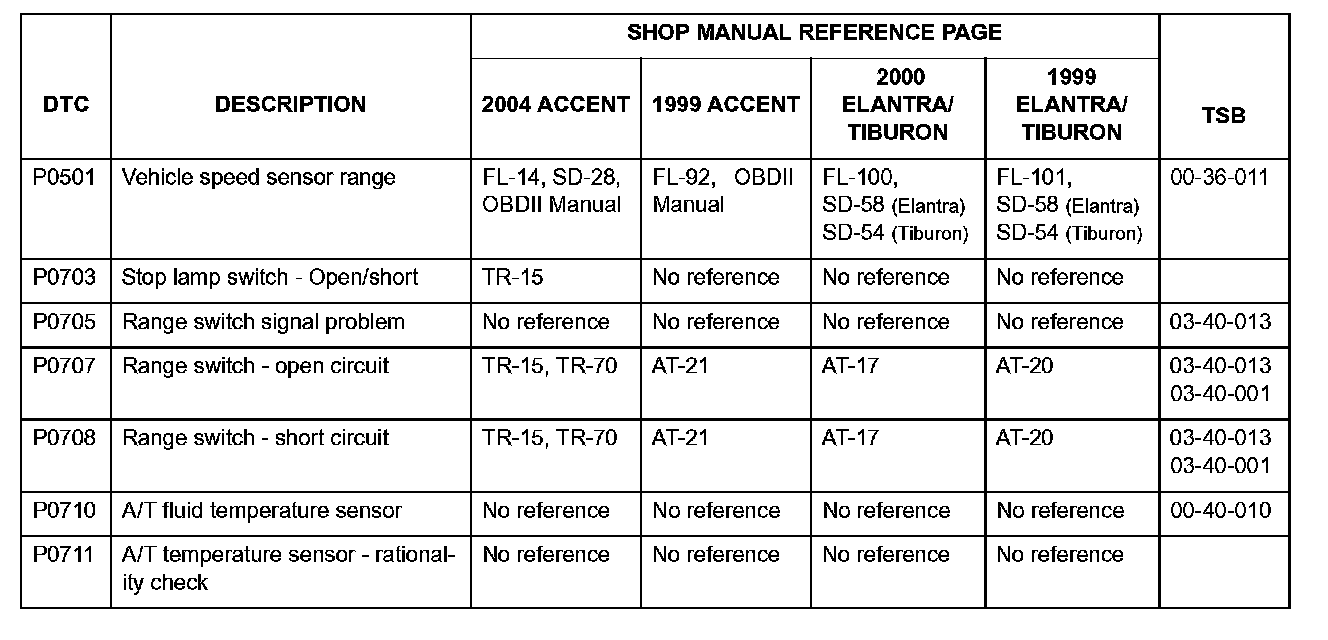

DTC information can be found in the shop manuals, TSBs and Engine Fault Code Diagnostic Manual (OBDII Manual) listed.
